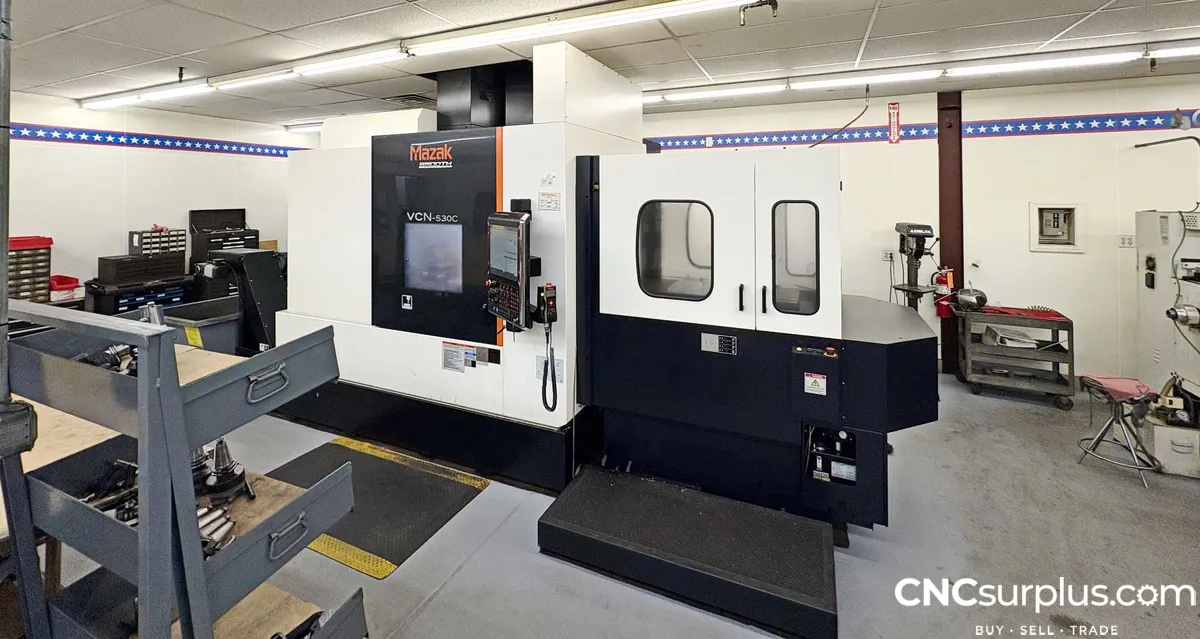

2018 MAZAK VCN-530C VERTICAL CNC MACHINING CENTER W/ 4TH AXIS ROTARY TABLE
Have one to sell?
ConditionUsed
1 available
2018 Mazak VCN-530C Vertical CNC Machining Center, 4th Axis Rotary Table W/ SC-9 3-Jaw Chuck, TSC, Renishaw Probing W/ Inspection Plus Software, Dual-Pallet Changer, Kitagawa Tailstock, Big-Plus Spindle, Chip Conveyor, Mist Collector, Additional Tool Holders
Mazak MR-250RAM01 4th axis NC rotary table w/ SC-9 3-jaw scroll chuck (9.13")
High-pressure through spindle coolant w/ flood (213 psi)
Renishaw OMP60
Renishaw OTS (AA)
Renishaw inspection plus (EIA/ISO)
Kitagawa tailstock-250
Dual-pallet changer
Big-Plus spindle #40 w/ big plus removal tool
Air thru spindle while running
Hinge chip conveyor
Donaldson WSO 10 mist collector
Duct flange for mist collector
Smooth engraving function
Max program size 32mb
G00 slope constant
Inch/metric conversion
MT connect adapter software
Additional tool holders
2018 Mazak VCN-530C Vertical CNC Machining Center, 4th Axis Rotary Table W/ SC-9 3-Jaw Chuck, TSC, Renishaw Probing W/ Inspection Plus Software, Dual-Pallet Changer, Kitagawa Tailstock, Big-Plus Spindle, Chip Conveyor, Mist Collector, Additional Tool Holders
Mazak MR-250RAM01 4th axis NC rotary table w/ SC-9 3-jaw scroll chuck (9.13")
High-pressure through spindle coolant w/ flood (213 psi)
Renishaw OMP60
Renishaw OTS (AA)
Renishaw inspection plus (EIA/ISO)
Kitagawa tailstock-250
Dual-pallet changer
Big-Plus spindle #40 w/ big plus removal tool
Air thru spindle while running
Hinge chip conveyor
Donaldson WSO 10 mist collector
Duct flange for mist collector
Smooth engraving function
Max program size 32mb
G00 slope constant
Inch/metric conversion
MT connect adapter software
Additional tool holders
Imperial
| X-Axis | 41.34" |
| Y-Axis | 20.87" |
| Z-Axis | 20.08" |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | #40 |
| Table-W | 21.65" |
| Table-L | 51.18" |
| # Axis | 3 |
| Max Table Load | 2,645 lb |
| Distance Spindle Nose to Table | 25.99" |
| Rapids (X/Y/Z) | 1,653 in/min. |
| Control | CNC (Mazatrol SmoothG) |
| Dimensions | 122.1" X 113.4" X 110.5" |
| Weight | 14,991 lb |
