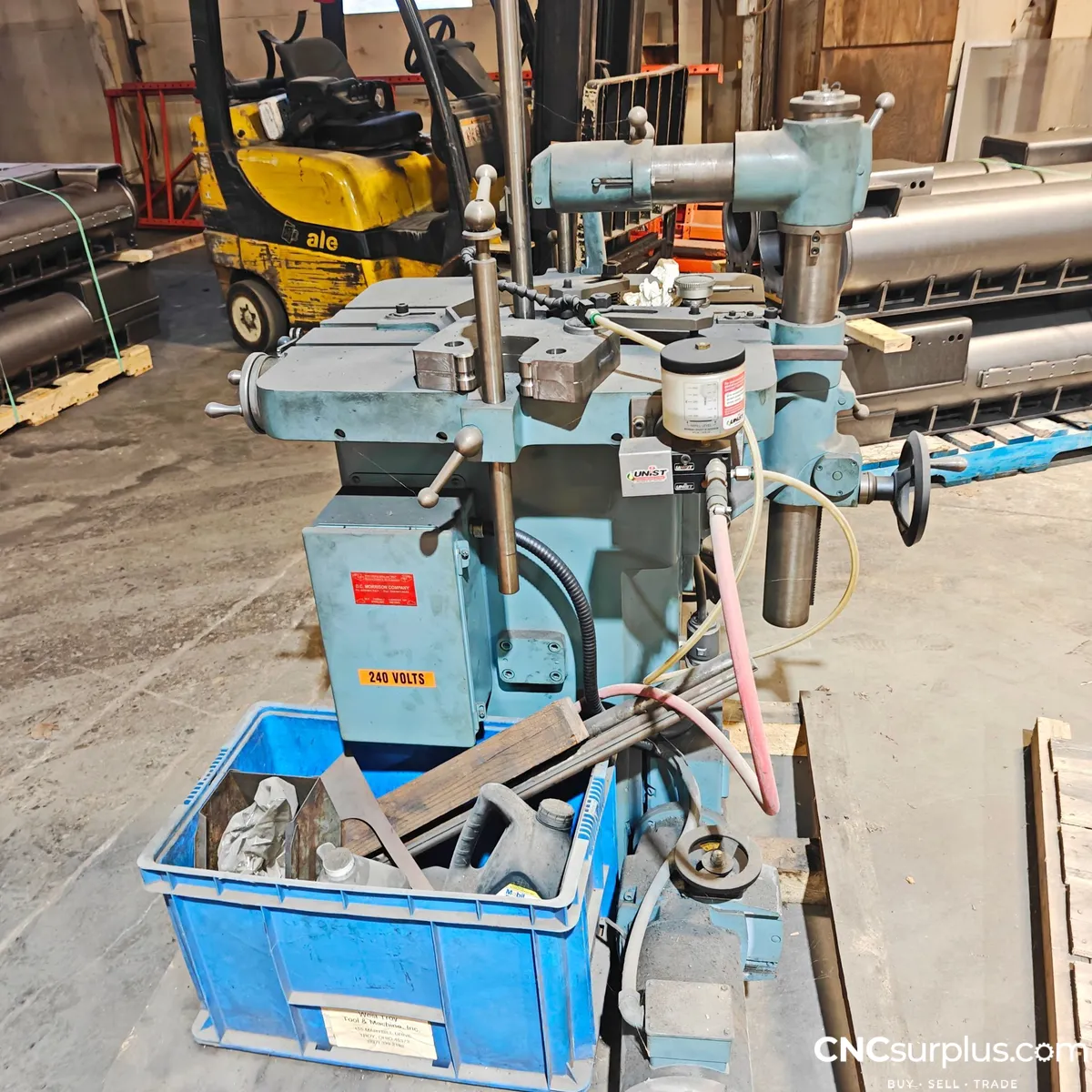

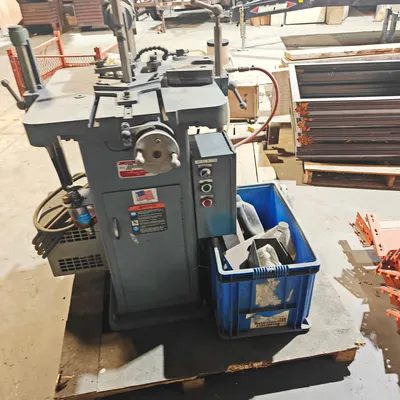

D.C. MORRISON MODEL K 1-1/4" HEAVY DUTY KEYSEATER
Have one to sell?
ConditionUsed
1 available
D.C. Morrison Model K 1-1/4" Heavy Duty Keyseater, Adjustable Speed Drive, 3-Position Automatic Feed, Cross-Slide Table W/ Handwheel Adjustment, Adjustable Workholding Clamps, Integrated Coolant System, Automatic Lubrication System, Cutter Bar Support Assembly
Adjustable speed drive
Adjustable stroke length
3-position automatic feed
Cross-slide table w/ handwheel adjustment
Adjustable workholding clamps
Cutter bar support assembly
Manual stroke positioning controls
Integrated coolant system
Automatic lubrication system
Magnetic starter w/ start/stop controls
D.C. Morrison Model K 1-1/4" Heavy Duty Keyseater, Adjustable Speed Drive, 3-Position Automatic Feed, Cross-Slide Table W/ Handwheel Adjustment, Adjustable Workholding Clamps, Integrated Coolant System, Automatic Lubrication System, Cutter Bar Support Assembly
Adjustable speed drive
Adjustable stroke length
3-position automatic feed
Cross-slide table w/ handwheel adjustment
Adjustable workholding clamps
Cutter bar support assembly
Manual stroke positioning controls
Integrated coolant system
Automatic lubrication system
Magnetic starter w/ start/stop controls
Imperial
| Max Keyway Capacity | 1.25" |
| Min Keyway Capacity | 0.0325" |
| Max Length of Cut | 9" |
| Length Of Stroke | 3" / 4.5" / 6" / 7.5" / 9" |
| Strokes Per Minute | Adjustable |
| # Of Feeds | 3 |
| Feeds | 0.002" / 0.004" / 0.006" |
| Max Dia. Cutting Bar | 1.25" |
| Distance 1" Cutter To Column | 16.25" |
| Max Distance Under Std Clamps | 14" |
| Distance Between Clamps | 25.5" |
| Table-L | 27" |
| Table-W | 24" |
| Table Height From Floor | 36" |
| Power | 2 hp |
| Made In | United States |
| Dimensions | 36" X 48" X 54" |
| Weight | 1,400 lb |
