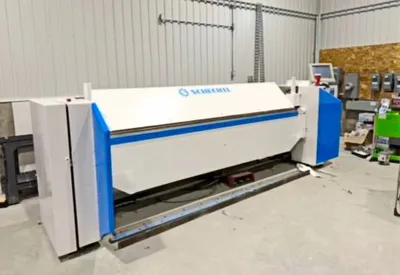

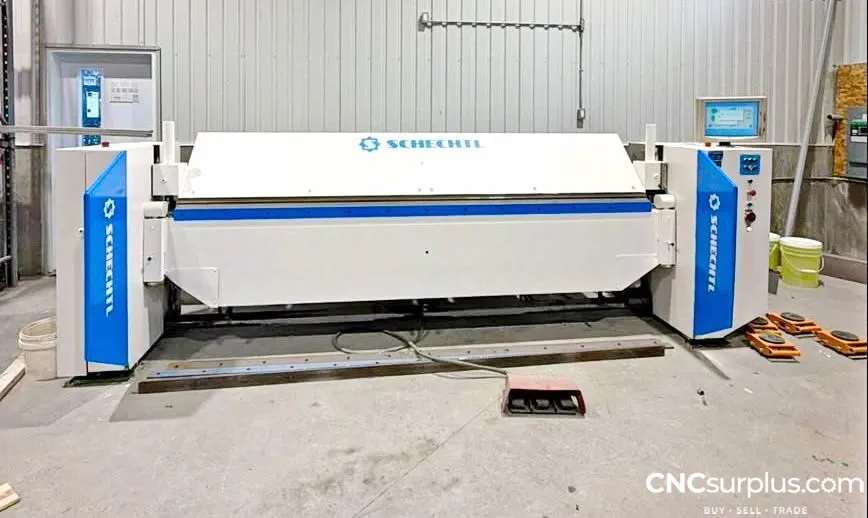

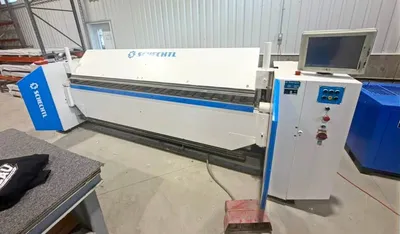

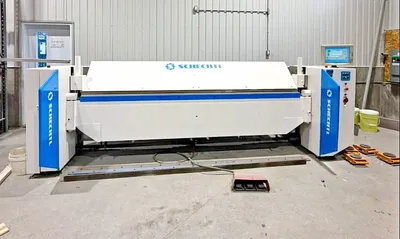

2008 SCHECHTL MAE 310/CNC 10' SHEET METAL FOLDING MACHINE
Have one to sell?
ConditionUsed
1 available
2008 Schechtl MAE 310/CNC 10' Sheet Metal Folding Machine, CNC Control W/ Operator Display, Motorized Backgauge System, Spindle-Driven Upper Clamping Beam, Motorized Folding Beam, Upper And Lower Folding Tooling, Schechtl Click System Tool Clamping
Motorized backgauge system
CNC control w/ operator display
Motorized folding beam
Spindle-driven upper clamping beam
Schechtl click system tool clamping
Upper & lower folding tooling
Adjustable bending beam
Movable foot pedal control
Sew drive motors
Moeller control components
2008 Schechtl MAE 310/CNC 10' Sheet Metal Folding Machine, CNC Control W/ Operator Display, Motorized Backgauge System, Spindle-Driven Upper Clamping Beam, Motorized Folding Beam, Upper And Lower Folding Tooling, Schechtl Click System Tool Clamping
Motorized backgauge system
CNC control w/ operator display
Motorized folding beam
Spindle-driven upper clamping beam
Schechtl click system tool clamping
Upper & lower folding tooling
Adjustable bending beam
Movable foot pedal control
Sew drive motors
Moeller control components
Imperial
| OA Length | 122.05" |
| Sheet Thickness (steel) | 0.118" |
| Sheet Thickness (stainless) | 0.079" |
| Sheet Thickness (aluminium) | 0.177" |
| Clamping Beam Opening Height | 8.27" |
| Made In | Germany |
| Control | CNC (Schechtl) |
| Dimensions | 167.3" X 70.5" X 61.4" |
| Weight | 9,259 lb (Approx.) |
