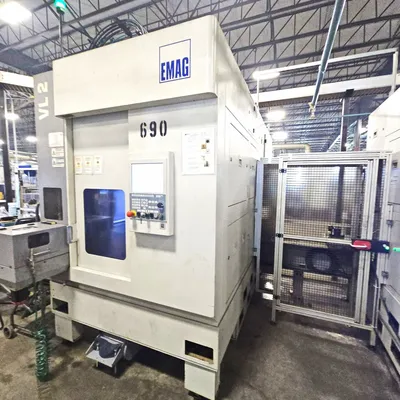

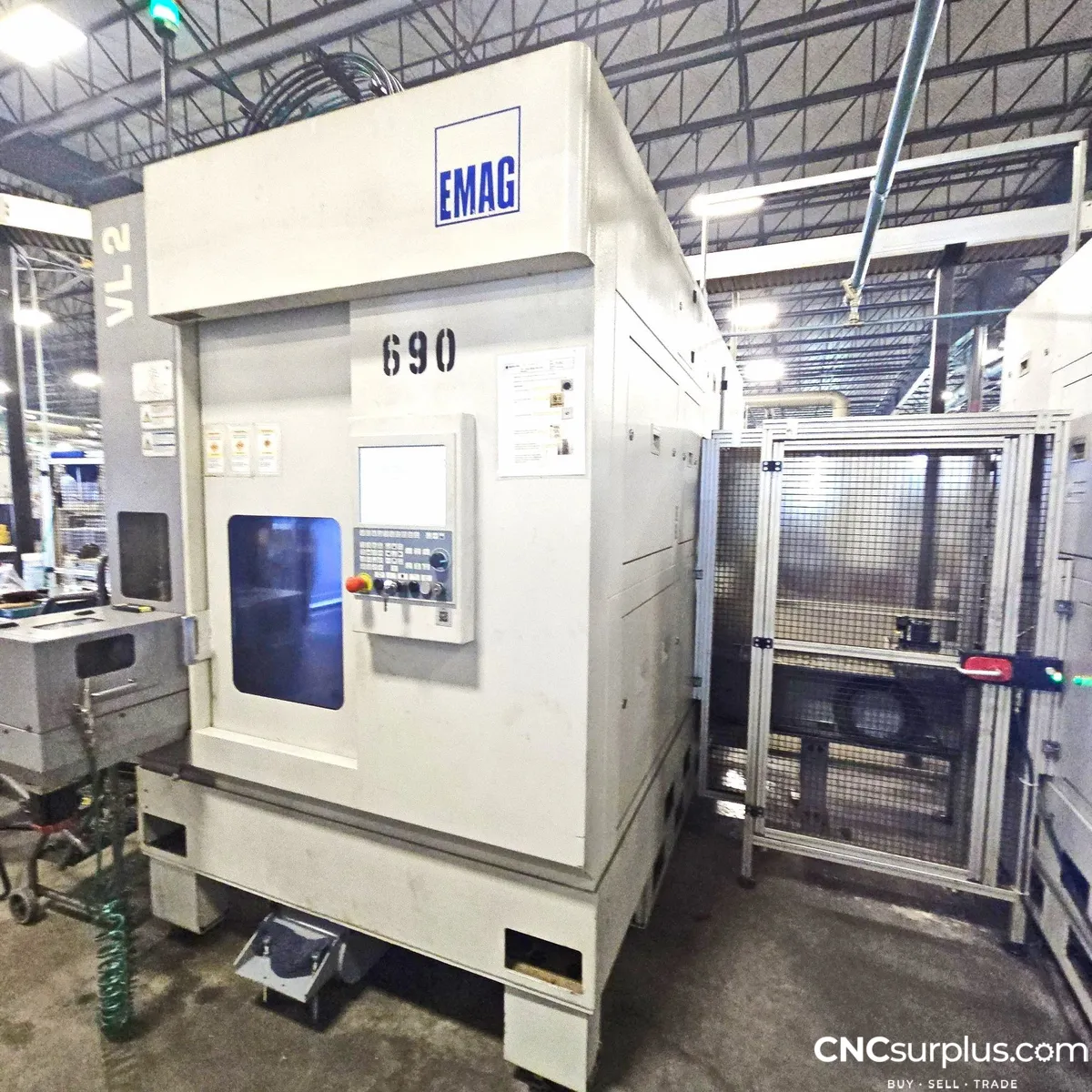

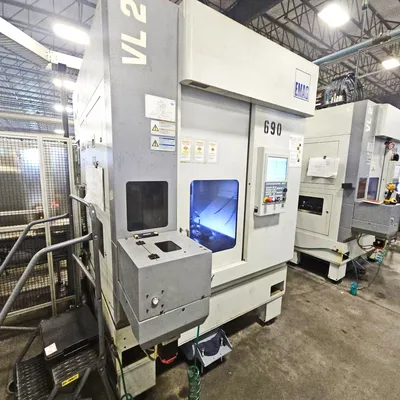

2017 EMAG VL 2 CNC INVERTED VERTICAL TURNING CENTER W/ LIVE TOOLING
Have one to sell?
ConditionUsed
4 available
2017 Emag VL 2 CNC Inverted Vertical Turning Center, Live Tooling, High-Pressure TSC, C-Axis, Auto Pick-Up Loading System, Integrated Parts Conveyor, Hydraulic Collet Chuck, Chip Conveyor, Additional Tooling And Holders

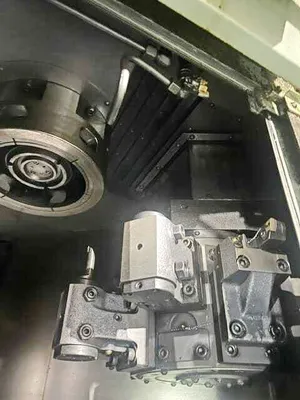

Live tooling
High-pressure through spindle coolant (1000 psi)
C-axis

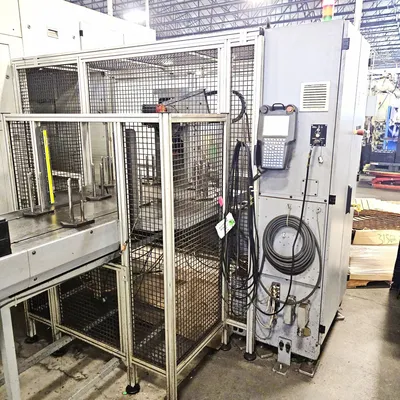

Auto pick-up loading system
Integrated parts conveyor

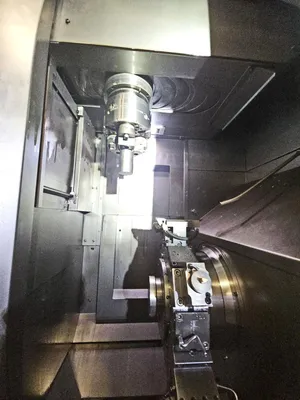

Hydraulic collet chuck

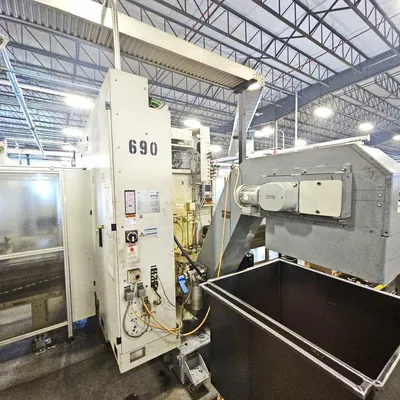

Chip conveyor

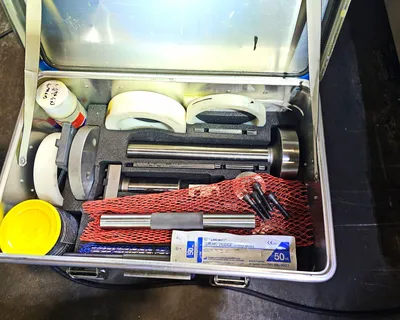

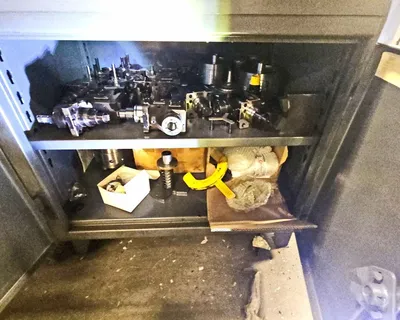

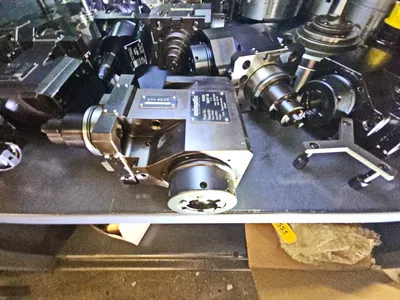

Additional tooling & holders
Available individually, as complete 2-machine automated cells with integrated turnaround stations, or as a 4-machine package.
2017 Emag VL 2 CNC Inverted Vertical Turning Center, Live Tooling, High-Pressure TSC, C-Axis, Auto Pick-Up Loading System, Integrated Parts Conveyor, Hydraulic Collet Chuck, Chip Conveyor, Additional Tooling And Holders
Live tooling
High-pressure through spindle coolant (1000 psi)
C-axis
Auto pick-up loading system

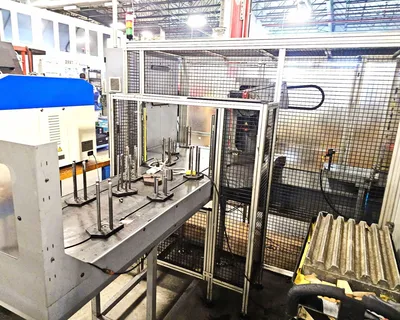

Integrated parts conveyor
Hydraulic collet chuck
Chip conveyor
Additional tooling & holders
Imperial
| Swing | 7.87" |
| # Axis | 3 |
| Chuck Size | 6.29" |
| Bearing Inside Diameter | 3.14" |
| Power | 36.2 hp |
| Max RPM | 6,000 RPM |
| Max RPM (Live Tooling) | 6,000 RPM |
| Spindle Nose | DIN-55 026 |
| X-Axis Travel | 14.96" |
| Z-Axis Travel | 15.75" |
| C-Axis | 360° |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | No |
| Rapid Traverse (X/Z) | 1,181 in/min. |
| Turret Capacity | 12 (Driven) |

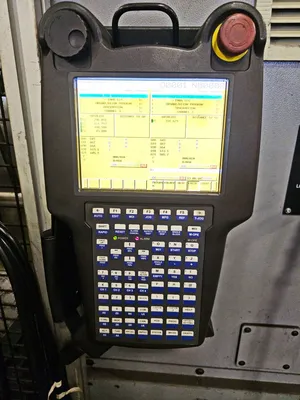

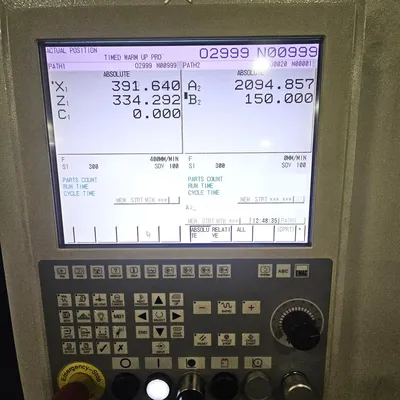

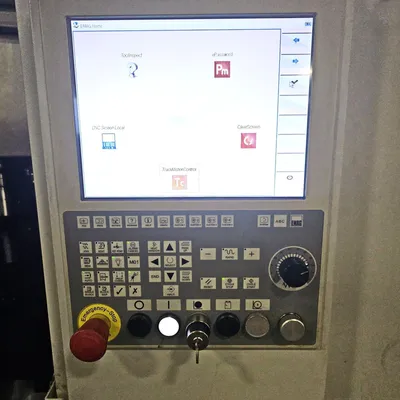

| Control | CNC (Fanuc 31iTB) |
| Dimensions | 100" X 63" X 103" (Approx.) |
| Weight | 12,125 lb (Approx.) |
Available individually, as complete 2-machine automated cells with integrated turnaround stations, or as a 4-machine package.
