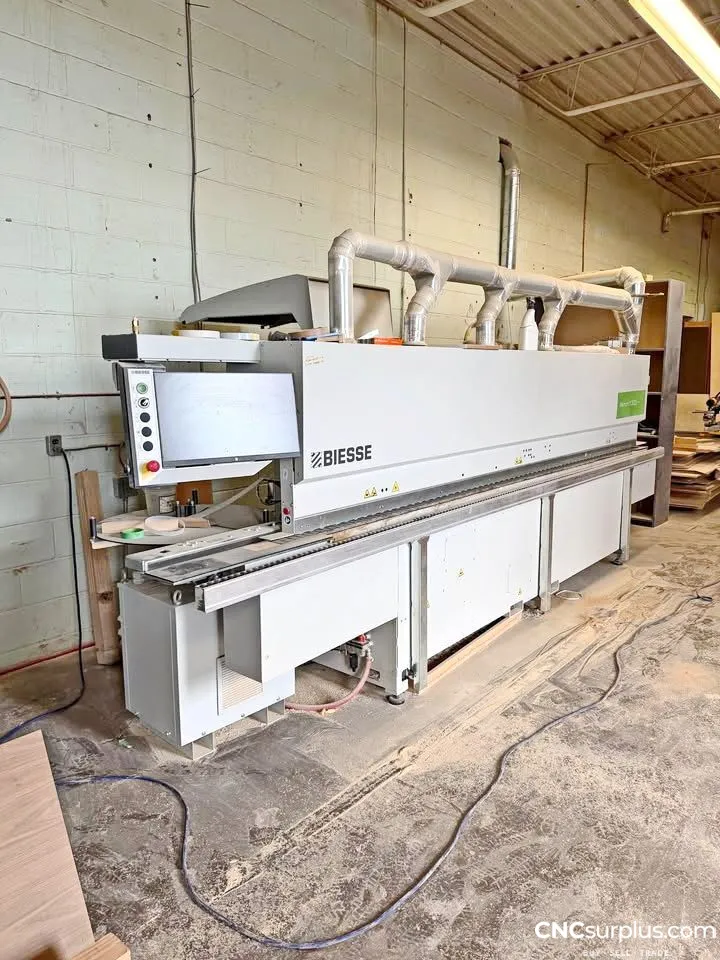

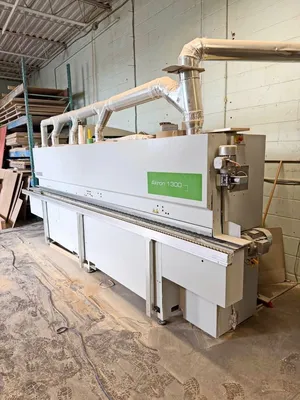

2024 BIESSE AKRON 1330-A AUTOMATIC EDGEBANDING MACHINE
Have one to sell?
ConditionUsed
1 available
2024 Biesse Akron 1330-A Automatic Edgebanding Machine, Dual Motor Corner Rounding Unit W/ Dual Radius Tooling, Pre-Milling Unit W/ NC Axis Infeed Fence, Upgraded 2.56" Diamond Coated Cutters, Smart Touch 23" Controller W/ Sintra HD Software, Adaptive Infrared Pre-Heating Lamp, Pro-Nesting Tracer Kit On Trimmer And Scraper
Dual motor corner rounding unit (AR02) w/ dual radius tooling
Pre-milling unit (RT02) w/ NC axis infeed fence
Upgraded 2.56" diamond cutters
Smart Touch 23" HD touchscreen controller w/ Sintra HD software
SOPHIA IoT module w/ cloud telemetry & remote diagnostics
Full NC multi-axis setup w/ auto changeovers
Adaptive infrared pre-heating lamp w/ auto temperature regulation
Pro-nesting tracer kit on trimmer & scraper w/ support for nested panels
Dual agent spray system w/ ADZ02 anti adhesive & LPT02 cleaning units
Profile edge scraper (RB02) w/ NC pneumatic exclusion
Glue scraper (RC02) w/ delicate panel kit & pneumatic exclusion
Cloth brushing & buffing unit (SZ02) w/ self adjustment
Auxiliary manual infeed guide w/ support for narrow workpieces
2024 Biesse Akron 1330-A Automatic Edgebanding Machine, Dual Motor Corner Rounding Unit W/ Dual Radius Tooling, Pre-Milling Unit W/ NC Axis Infeed Fence, Upgraded 2.56" Diamond Coated Cutters, Smart Touch 23" Controller W/ Sintra HD Software, Adaptive Infrared Pre-Heating Lamp, Pro-Nesting Tracer Kit On Trimmer And Scraper
Dual motor corner rounding unit (AR02) w/ dual radius tooling
Pre-milling unit (RT02) w/ NC axis infeed fence
Upgraded 2.56" diamond cutters
Smart Touch 23" HD touchscreen controller w/ Sintra HD software
SOPHIA IoT module w/ cloud telemetry & remote diagnostics
Full NC multi-axis setup w/ auto changeovers
Adaptive infrared pre-heating lamp w/ auto temperature regulation
Pro-nesting tracer kit on trimmer & scraper w/ support for nested panels
Dual agent spray system w/ ADZ02 anti adhesive & LPT02 cleaning units
Profile edge scraper (RB02) w/ NC pneumatic exclusion
Glue scraper (RC02) w/ delicate panel kit & pneumatic exclusion
Cloth brushing & buffing unit (SZ02) w/ self adjustment
Auxiliary manual infeed guide w/ support for narrow workpieces
Imperial
| Max Workpiece Thickness | 2.36" |
| Min Workpiece Thickness | 0.39" |
| Min Workpiece Width | 1.97" at 9.84" panel length / 3.35" at 5.91" panel length |
| Min Workpiece Length | 5.91" |
| Edge Thickness | 0.016" - 0.197" |
| Tape Thickness in Roll | 0.016" - 0.118" |
| Glue System / Capacity | EVA Quick-Melt / 4.4 lb |
| Dust Collection Port Size | 4" |
| Feed Rate | 472.4 in/min. |
| Compressed Air | 101.5 PSI |
| Made In | Italy |
| Dimensions | 205.2" X 61" X 63" (Approx.) |
| Weight | 3,800 lb (Approx.) |
