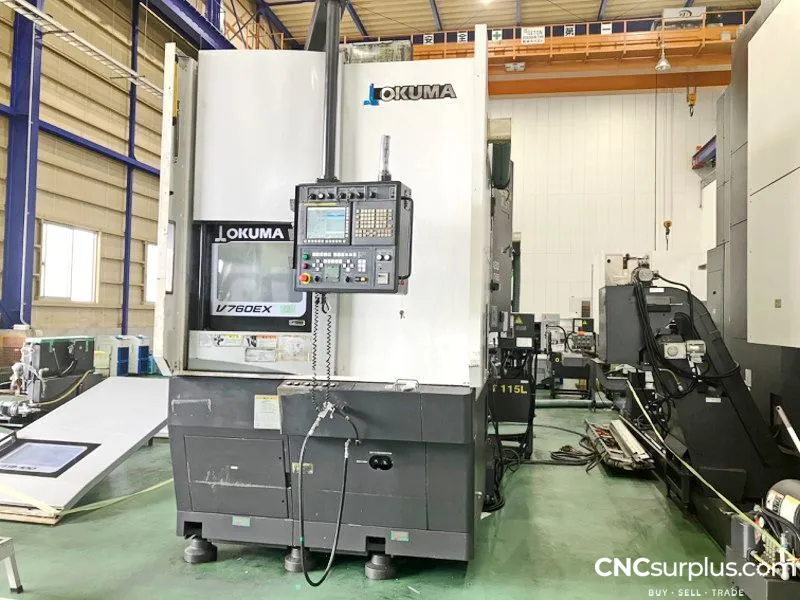

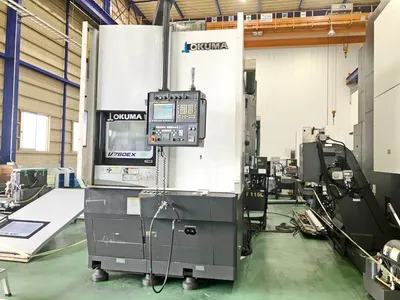

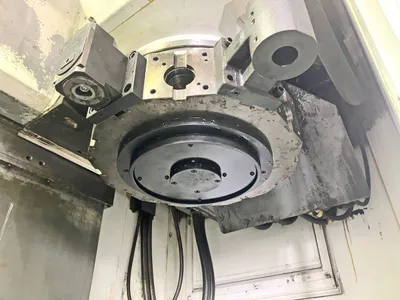

2017 OKUMA V760EX-M VERTICAL CNC TURRET LATHE
Have one to sell?
ConditionUsed
1 available
2017 Okuma V760EX-M Vertical CNC Turret Lathe, Milling Tool, 16” Manual 4-Jaw Independent Chuck, C-Axis, Touch Setter, Chip Conveyor
Milling tool (4000 rpm)

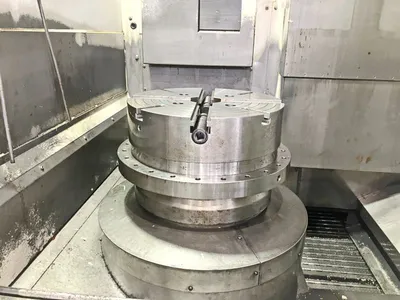

16” manual 4-jaw independent chuck
C-axis (0.001°)
Touch setter
2017 Okuma V760EX-M Vertical CNC Turret Lathe, Milling Tool, 16” Manual 4-Jaw Independent Chuck, C-Axis, Touch Setter, Chip Conveyor
Milling tool (4000 rpm)
16” manual 4-jaw independent chuck
C-axis (0.001°)
Touch setter
Imperial
| Swing | 31.5" |
| Swing Over Carriage | 24.02" |
| Max Turning Diameter | 29.92" |
| Spindle Bore | 3.62" |
| X-Axis | 15.35" |
| Z-Axis | 30.31" |
| C-Axis | 360° |
| Turret Capacity | 12 |
| Power | 40 hp |
| Power (Milling Spindle) | 5.5 hp |
| RPM | 2,000 RPM |
| RPM (Milling Spindle) | 4,000 RPM |
| Max Work Height | 30.31" |
| Distance Floor To Spindle Nose | 42.72" |
| Spindle Nose | JIS A2-11 |
| Rapid Traverse (X/Z) | 78.74 / 78.74 in/min. |
| Max Table Load | 1,100 lb |

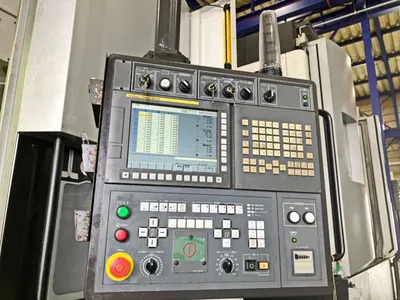

| Control | CNC (Fanuc 0i-TF) |
| Dimensions | 123" X 73" X 138" |
| Weight | 19,140 lb |
