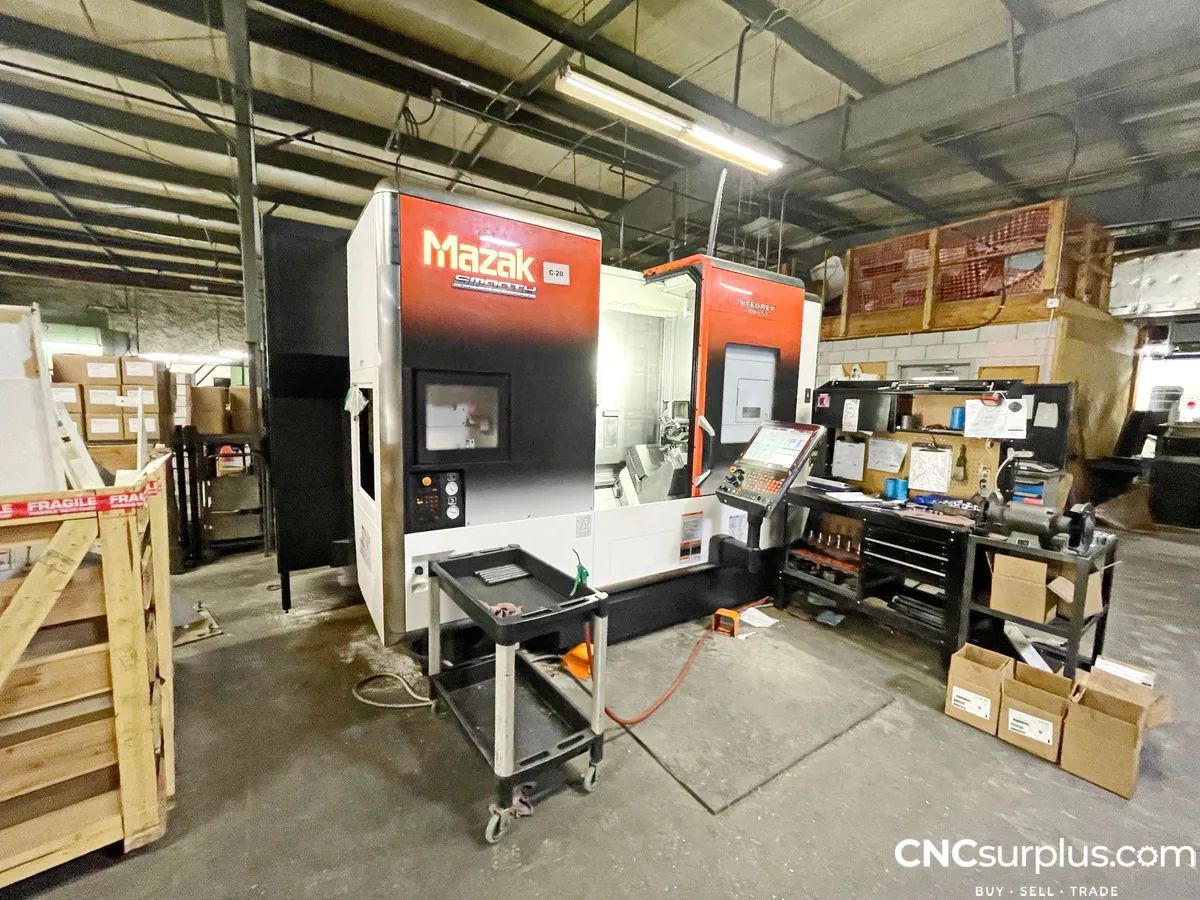

2023/2025 MAZAK INTEGREX I-100H ST 6-AXIS MULTI-TASKING CNC MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2023/2025 Mazak Integrex i-100H ST 6-Axis Multi-Tasking CNC Machining Center, 12000 RPM Milling Spindle, Sub-Spindle, TSC, 74-Tool ATC, 9-Position Lower Turret, Renishaw RMP600QE Work Measuring System, Automatic Tool Eye, 5-Axis Machining Package, Chip Conveyor, Parts Catcher
Milling spindle (12000 rpm)
Sub-spindle
Through mill-spindle coolant (213 psi)
Flood coolant
74-tool HSK automatic tool changer
9-position lower drum turret
Renishaw RMP600QE radio work measuring system w/ Smooth Set & Inspect
5-axis machining package
Second spindle simultaneous 5-axis machining software
Automatic tool eye for upper & lower turrets
Kitagawa B-206A5 main & second spindle chucks
Automatic chuck jaw open/close for main & second spindles
Mazak retrofit automatic parts catcher
Royal Products QG-42 Accu-Length collet chuck
Mayfran side-discharge hinge-belt chip conveyor
Mazak bar feeder electrical interface
Main & second spindle C-axis synchronous contouring
AI Thermal Shield
**Installed in June 2025
2023/2025 Mazak Integrex i-100H ST 6-Axis Multi-Tasking CNC Machining Center, 12000 RPM Milling Spindle, Sub-Spindle, TSC, 74-Tool ATC, 9-Position Lower Turret, Renishaw RMP600QE Work Measuring System, Automatic Tool Eye, 5-Axis Machining Package, Chip Conveyor, Parts Catcher
Milling spindle (12000 rpm)
Sub-spindle
Through mill-spindle coolant (213 psi)
Flood coolant
74-tool HSK automatic tool changer
9-position lower drum turret
Renishaw RMP600QE radio work measuring system w/ Smooth Set & Inspect
5-axis machining package
Second spindle simultaneous 5-axis machining software
Automatic tool eye for upper & lower turrets
Kitagawa B-206A5 main & second spindle chucks
Automatic chuck jaw open/close for main & second spindles
Mazak retrofit automatic parts catcher
Royal Products QG-42 Accu-Length collet chuck
Mayfran side-discharge hinge-belt chip conveyor
Mazak bar feeder electrical interface
Main & second spindle C-axis synchronous contouring
AI Thermal Shield
Imperial
| Swing | 23.62" |
| Max Turning Dia (Upper) | 23.62" |
| Max Turning Dia (Lower) | 15.75" |
| Machining Length | 33.46" |
| Chuck (Main) | 6" |
| Chuck (Sub) | 6" |
| X-Axis | 21.06" |
| X2-Axis | 8.27" |
| Y-Axis | 8.27" |
| Z-Axis | 35.43" |
| Z2-Axis | 35.43" |
| B-Axis | 30° ～ +210° |
| Power (Main) | 15 hp |
| Power (Sub) | 15 hp |
| Power (Milling Spindle) | 16 hp |
| RPM (Main) | 6,000 RPM |
| RPM (Sub) | 6,000 RPM |
| RPM (Milling Spindle) | 12,000 RPM |
| # ATC | 72 |
| Taper | HSK-A63 |
| # Axis | 5 |
| Spindle Bore (Main) | 2.4" |
| Spindle Bore (Sub) | 2.4" |
| Bar Capacity | 2.05" |
| Turret Capacity | 9 Position |
| Spindle Nose (Main) | A2-5 |
| Spindle Nose (Sub) | A2-5 |
| Rapid Traverse (X/Y/Z) | 1,890 / 1,575 / 1,575 in/min. |
| Made In | Japan |
| Control | CNC (MAZATROL SmoothAI) |
| Dimensions | 137.99" X 85.43" X 98.43" |
| Weight | 27,280 lb |
**Installed in June 2025
