3-jaw chuck

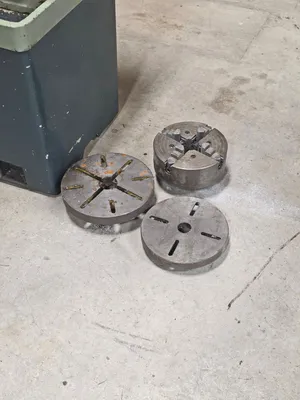

4-jaw chuck

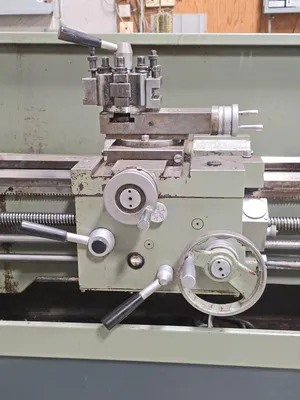

Quick-change toolpost
Slotted faceplate
Drive / catch plate

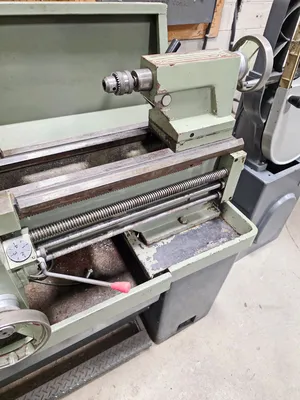

Tailstock
Tailstock drill chuck

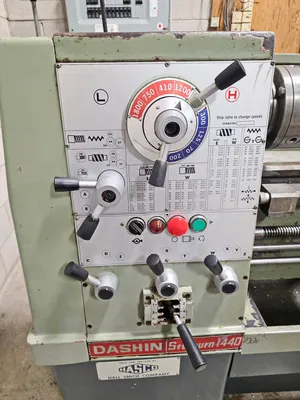

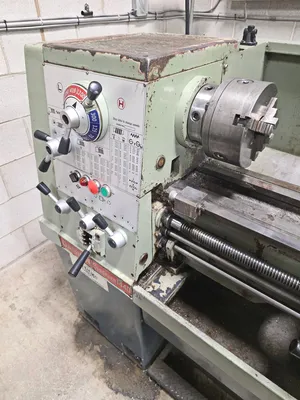

Geared-head spindle drive
Universal threading gearbox

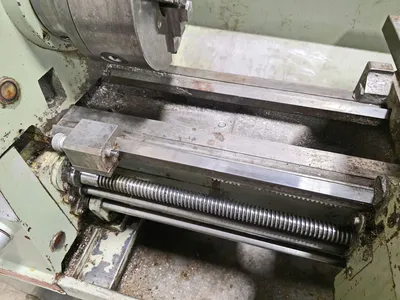

Power longitudinal & cross feeds
Gap-bed construction

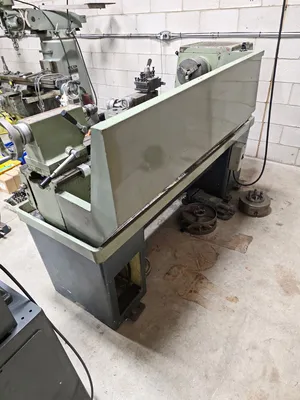

Full-length rear chip / splash guard
| Swing | 14.25" | 361.95 mm |
| Swing Over Cross Slide | 8.625" | 219.07 mm |
| Swing Over Gap | 22" | 558.8 mm |
| Bed Width | 10" | 254 mm |
| Centers | 40" | 1,016 mm |
| Center Height | 7" | 177.8 mm |
| Spindle Bore | 1.625" | 41.275 mm |
| Spindle Nose | D1-5 Camlock | D1-5 Camlock |
| RPM | 1,800 RPM | 1,800 RPM |
| Cross Slide Travel | 7.6" | 193.04 mm |
| Top Slide Travel | 4" | 101.6 mm |
| Bed Width | 10" | 254 mm |
| Quill Taper | MT3 | MT3 |
| Quill Dia | 2" | 50.8 mm |
| Quill Travel | 4.75" | 120.65 mm |
| Made In | Taiwan | Taiwan |
| Dimensions | 73.4" X 35" X 48.1" (Approx.) | 73.4" X 35" X 48.1" (Approx.) |
| Weight | 2,000 lb (Approx.) | 2,000 lb (Approx.) |
This equipment has been sold. Similar equipment available now is shown below.
