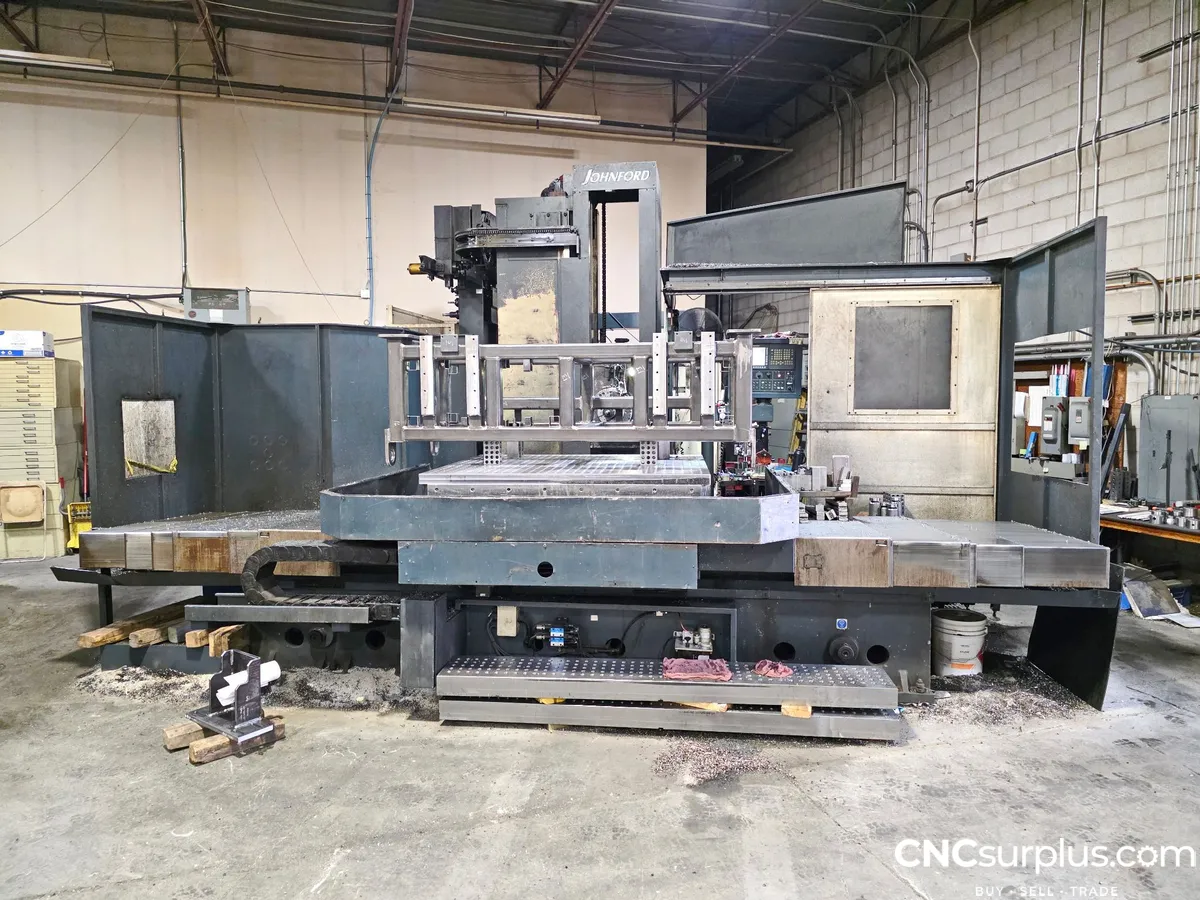

2011 JOHNFORD BMC-110 HORIZONTAL CNC BORING MACHINE
Have one to sell?
ConditionUsed
1 available
$129,500.00 USD
2011 Johnford BMC-110 Horizontal CNC Boring Machine, Full B-Axis Rotary Table W/ Hydraulic Clamping, Heidenhain Linear Scales, Hydraulic Y-Axis Counterbalance, Oil Chiller, Chip Conveyor, Liquid Cooled Spindle
Full b-axis rotary table w/ hydraulic clamping
Heidenhain linear scales (x/y/z)
Hydraulic y-axis counterbalance
Spindle & gearbox cooler
Habor refrigerated hydraulic oil chiller
Rigid tapping
Automatic lubrication system
Chip conveyor
Remote handwheel / manual pulse generator
Auxiliary machine setup control station
2011 Johnford BMC-110 Horizontal CNC Boring Machine, Full B-Axis Rotary Table W/ Hydraulic Clamping, Heidenhain Linear Scales, Hydraulic Y-Axis Counterbalance, Oil Chiller, Chip Conveyor, Liquid Cooled Spindle
Full b-axis rotary table w/ hydraulic clamping
Heidenhain linear scales (x/y/z)
Hydraulic y-axis counterbalance
Spindle & gearbox cooler
Habor refrigerated hydraulic oil chiller
Rigid tapping
Automatic lubrication system
Chip conveyor
Remote handwheel / manual pulse generator
Auxiliary machine setup control station
Imperial
| Spindle Size | 4.3" |
| X-Axis | 78.7" |
| Y-Axis | 70.8" |
| Z-Axis | 63" |
| W-Axis | 21.7" |
| Power | 35 hp |
| RPM | 3,000 RPM |
| Table-W | 55" |
| Table-L | 63" |
| Taper | CAT-50 |
| Max Table Load | 15,400 lb |
| ATC | 60 |
| Rapid Traverse (X/Y/Z/W) | 472 in/min. |
| Made In | Taiwan |
| Control | CNC (Fanuc 31i-Model B) |
| Dimensions | 246" X 230" X 158" |
| Weight | 55,116 lb |
