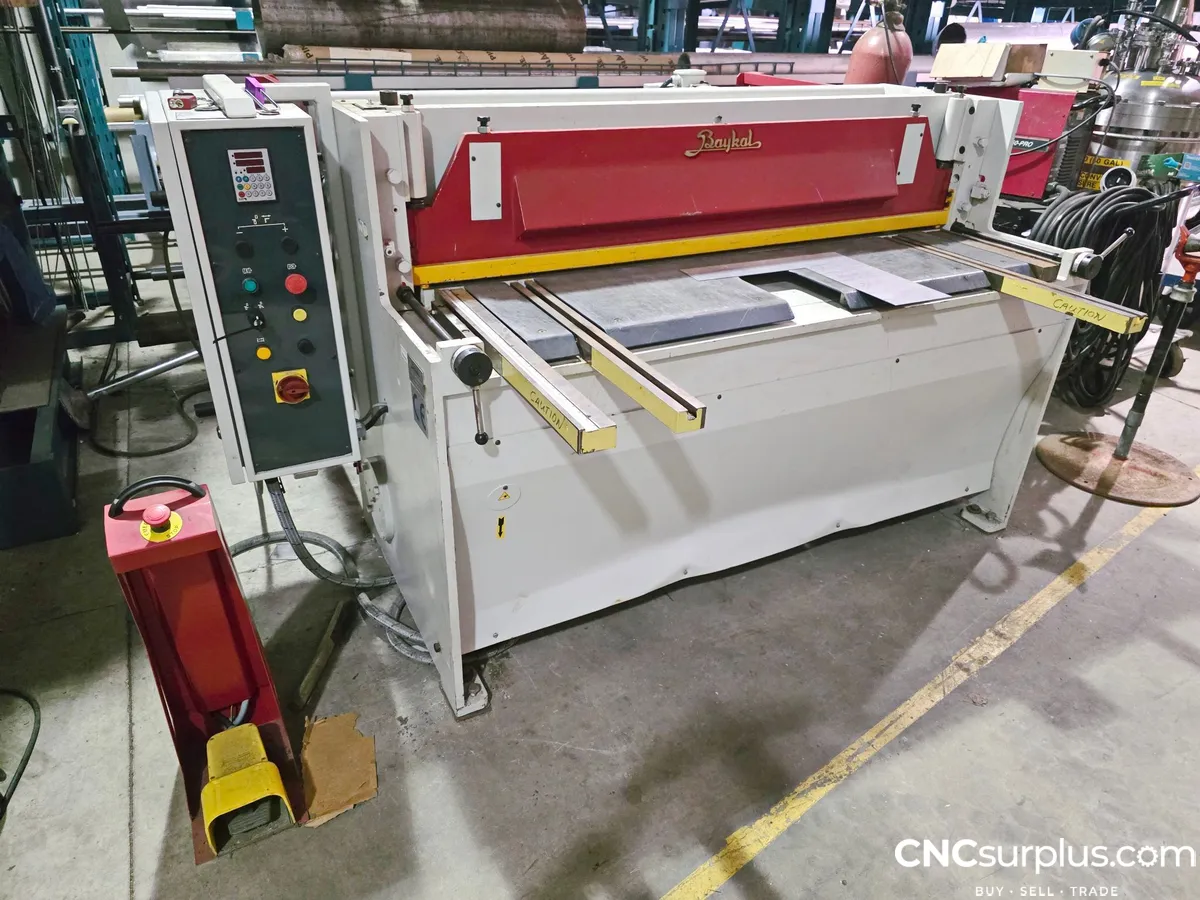

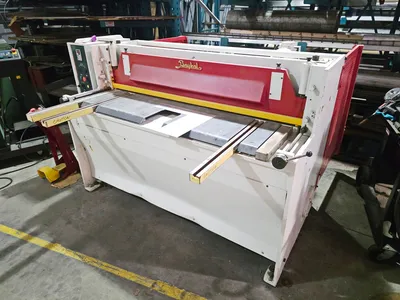

2010 BAYKAL RGS 1560X3.5 DIRECT-DRIVE MECHANICAL GUILLOTINE SHEAR

2010 BAYKAL RGS 1560X3.5 DIRECT-DRIVE MECHANICAL GUILLOTINE SHEAR

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Sheet Metal Shears
Manufacturer:
BAYKAL
Model:
RGS 1560X3.5
Year:
2010
Stock #:
14094
Status:
For Sale
Country:
Canada

Description

2010 Baykal RGS 1560X3.5 Direct-Drive Mechanical Guillotine Shear, Powered Backgauge W/ Digital Control And Stroke Counter, Mechanical Sheet Clamping, Adjustable Blade Gap System, Four-Edge Alloy Shear Blades

Powered backgauge w/ stroke counter
ELGO P9521 digital backgauge control
Four-edge alloy shear blades
Mechanical sheet clamping system
Adjustable blade gap system
Rigid cutting beam w/ roller bearings & bronze guides
Direct-coupled motor w/ reduction drive
Low-maintenance clutch system
Front squaring arm w/ scale
Front support arms & front gauge
Work table filler plates
Single & repetitive cutting foot-pedal capability

Max Cutting Length61.4"1,559.6 mm
Cutting Angle1.8°1.8°
TypeMechanical Guillotine ShearMechanical Guillotine Shear
Motor Power7.4 hp5.5 kW
Max Sheet Thickness (Steel)0.138"3.5052 mm
Max Sheet Thickness (Stainless)0.059"1.4986 mm
Cutting Speed40 cut/min.40 cut/min.
Table Height33.9"861.06 mm
Made InTurkeyTurkey
Dimensions83.1" X 61.4" X 49.2"83.1" X 61.4" X 49.2"
Weight3,570 lb3,570 lb
