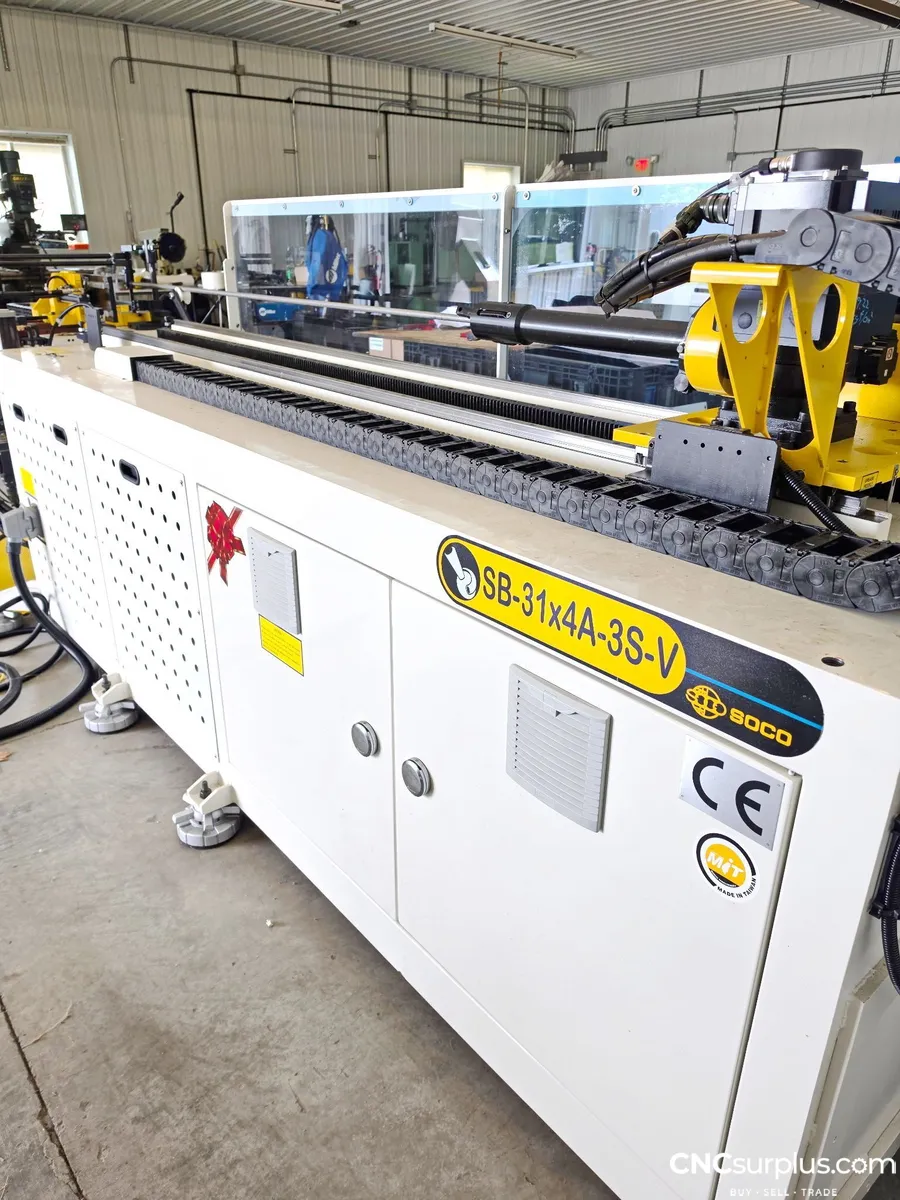

2024 SOCO SB-31X4A-3S-V 4-AXIS CNC BOOSTER TUBE BENDER
Have one to sell?
ConditionUsed
1 available
2024 Soco SB-31x4A-3S-V 4-Axis CNC Booster Tube Bender, Draw / Roll And 1D Bending Capability, Programmable 1D Carriage Boost, Mandrel Bending, 3-Stack Bending Configuration, Rack-And-Pinion Feeding, Direct Gear Transmission
4-axis CNC booster tube bending
Soco DGT (direct gear transmission)
Draw, roll & 1D bending capability
3-stack bending configuration
Programmable 1D carriage boost
Touchscreen IPC control w/ keyboard
Remote operator control pedestal
Rack-and-pinion feeding
Mandrel bending capability
Mandrel rod included
Inside wiper post included
Individual pressure die system
Programmable large-radius arc lengths
Roll bending springback compensation
Zero-straight-length bending capability
Cable carrier system
1" Dia X 6" radius tooling included
2024 Soco SB-31x4A-3S-V 4-Axis CNC Booster Tube Bender, Draw / Roll And 1D Bending Capability, Programmable 1D Carriage Boost, Mandrel Bending, 3-Stack Bending Configuration, Rack-And-Pinion Feeding, Direct Gear Transmission
4-axis CNC booster tube bending
Soco DGT (direct gear transmission)
Draw, roll & 1D bending capability
3-stack bending configuration
Programmable 1D carriage boost
Touchscreen IPC control w/ keyboard
Remote operator control pedestal
Rack-and-pinion feeding
Mandrel bending capability
Mandrel rod included
Inside wiper post included
Individual pressure die system
Programmable large-radius arc lengths
Roll bending springback compensation
Zero-straight-length bending capability
Cable carrier system
1" Dia X 6" radius tooling included
Imperial
| Max Bending Capacity (Mild Steel) | Ø 1.181" X 0.079" WT, 1.5D CLR |
| Max Bending Capacity (Stainless) | Ø 1" X 0.063" WT, 1.5D CLR |
| Max Roll Bending Capacity (Steel) | Ø 1.181" X 0.039" WT, 8D CLR |
| Max Draw Bending Radius | 5.91" |
| Max Bending Radius Difference (R1-R2) | 1.5" |
| Tube Length | 124.8" |
| Horz/Vert | Horz |
| MR Die Arrangement | Ø 0.787" To Ø 1.181" (3 Stacks) |
| Made In | Taiwan |
| Dimensions | 163.4" X 52.8" X 50.4" |
| Weight | 6,062 lb |
