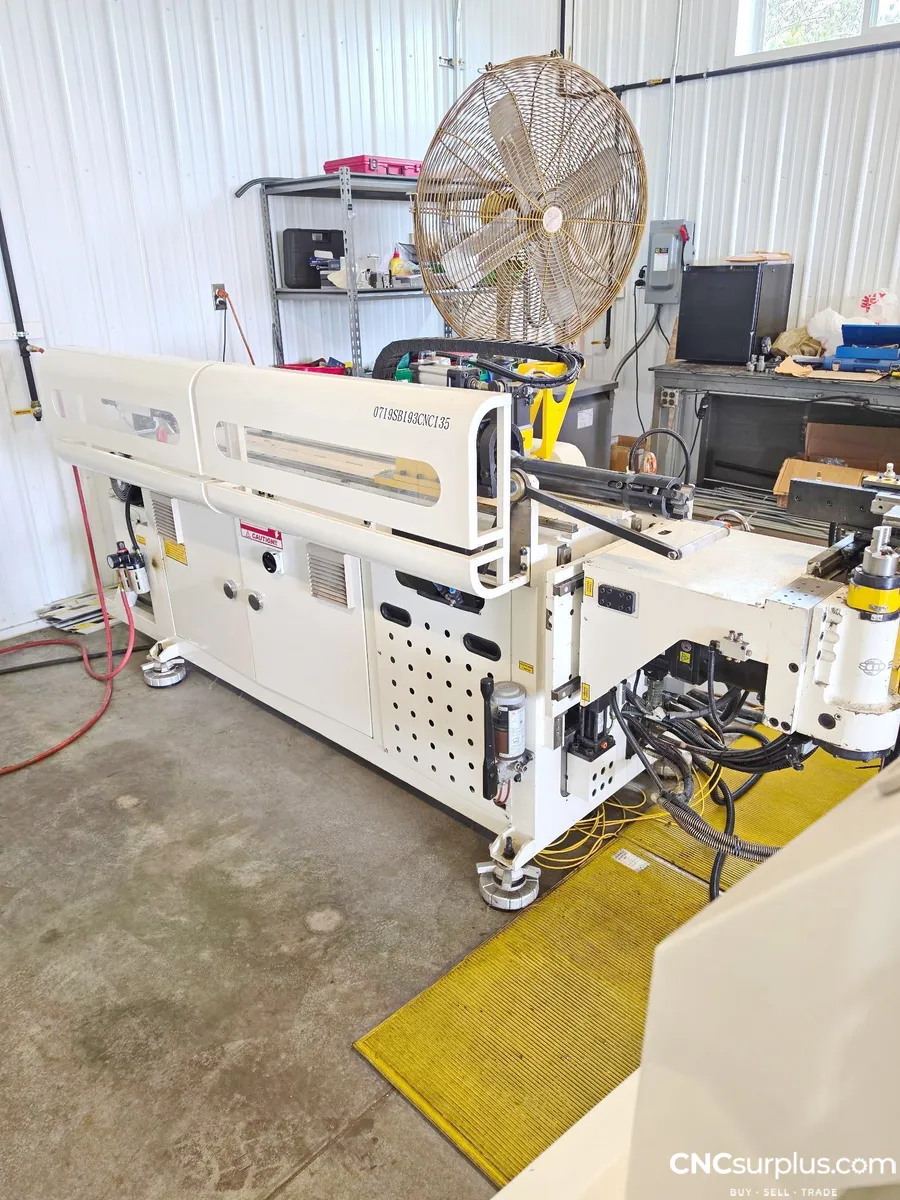

2018 SOCO SB-19X3A-2S 3-AXIS CNC TUBE BENDER
Have one to sell?
ConditionUsed
1 available
2018 Soco SB-19x3A-2S 3-Axis CNC Tube Bender, Hybrid Hydraulic / Electric, Direct Gear Transmission, Rack-And-Pinion Feeding System, Mandrel Bending, Two-Stack Bending Configuration, Collet-Style Tube Feed Chuck, Carriage Assist
3-axis CNC tube bending
Soco DGT (direct gear transmission)
Hybrid hydraulic / electric operation
Touchscreen IPC control w/ keyboard
Carriage assist
Rack-and-pinion feeding system
Mandrel bending capability
Collet-style tube feed chuck
2-stack bending configuration
Independent pressure die system
Side-positioned bending head & carriage
Automatic mandrel lubrication
Wiper die seat & lubrication
Centralized greasing system
Remote operator control console
1 set of 0.5" tooling included
2018 Soco SB-19x3A-2S 3-Axis CNC Tube Bender, Hybrid Hydraulic / Electric, Direct Gear Transmission, Rack-And-Pinion Feeding System, Mandrel Bending, Two-Stack Bending Configuration, Collet-Style Tube Feed Chuck, Carriage Assist
3-axis CNC tube bending
Soco DGT (direct gear transmission)
Hybrid hydraulic / electric operation
Touchscreen IPC control w/ keyboard
Carriage assist
Rack-and-pinion feeding system
Mandrel bending capability
Collet-style tube feed chuck
2-stack bending configuration
Independent pressure die system
Side-positioned bending head & carriage
Automatic mandrel lubrication
Wiper die seat & lubrication
Centralized greasing system
Remote operator control console
1 set of 0.5" tooling included
Imperial
| Max Bending Capacity (Mild Steel) | Ø 0.75" X 0.039" WT, 1.5D CLR |
| Max Bending Capacity (Stainless) | Ø 0.63" X 0.039" WT, 1.5D CLR |
| Max Draw Bending Radius | 3.15" |
| Max Bending Radius Difference (R1-R2) | 1.18" |
| Tube Length | 90.56" |
| Horz/Vert | Horz |
| Bending Accuracy | ±0.05° To ±0.1° |
| Rotation Accuracy | ±0.05° To ±0.1° |
| Feeding Accuracy | ±0.002" To ±0.004" |
| Made In | Taiwan |
| Dimensions | 122" X 35.4" X 47.2" |
| Weight | 2,998 lb |
