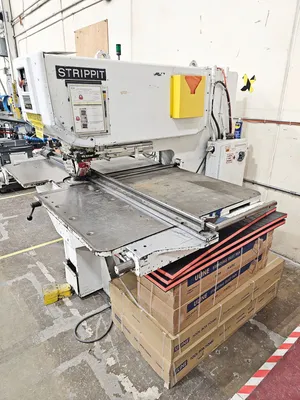

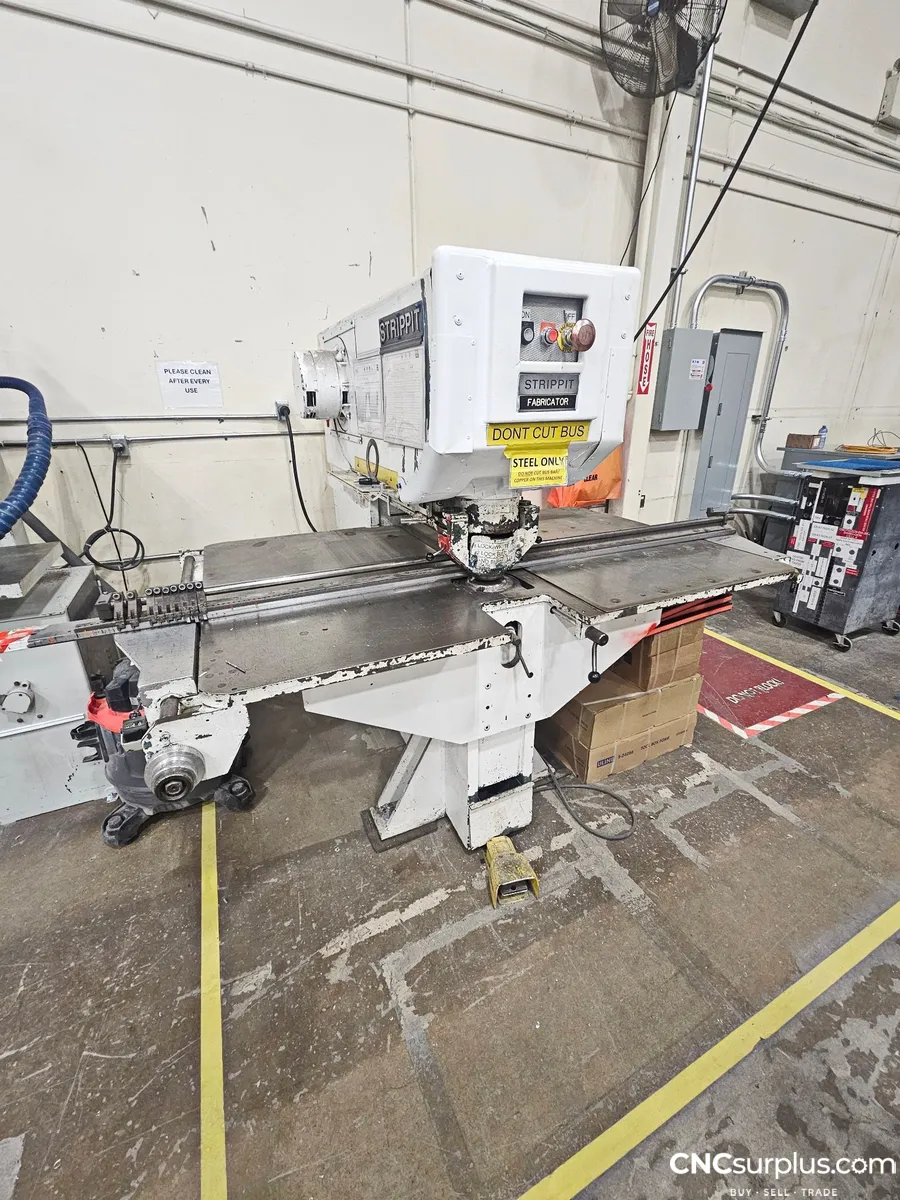

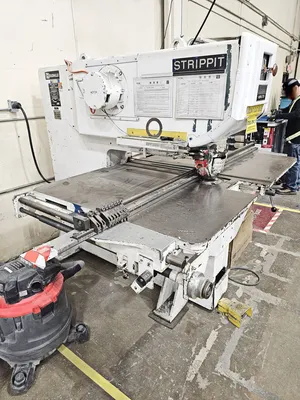

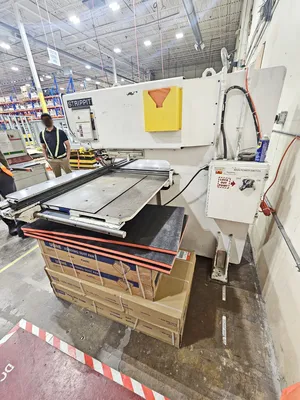

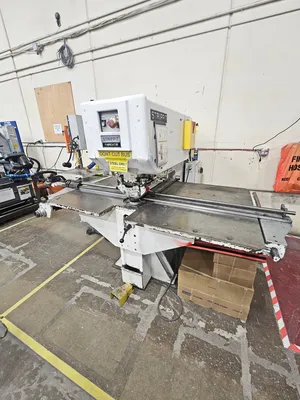

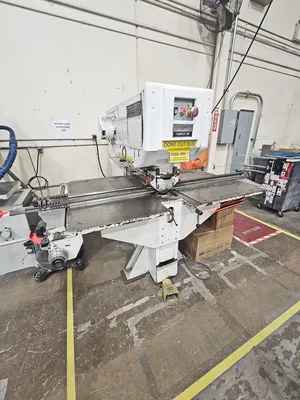

STRIPPIT SUPER 30/40 TURRET PUNCH PRESS, 40 TON

STRIPPIT SUPER 30/40 TURRET PUNCH PRESS, 40 TON

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Turret Punches
Manufacturer:
STRIPPIT
Model:
SUPER 30/40
Stock #:
14082
Status:
For Sale
Country:
Canada

Description

Strippit Super 30/40 Turret Punch Press, 40 Ton, Electro-Hydraulic Punching Head, Lead Screw Back Gauge, Quick-Change / Eject Tooling Capability, Indexable Punching Head, Microbar And Scale Side Gauge

Electro-hydraulic punching head
Quick-change/eject tooling capability
Adjustable worktable

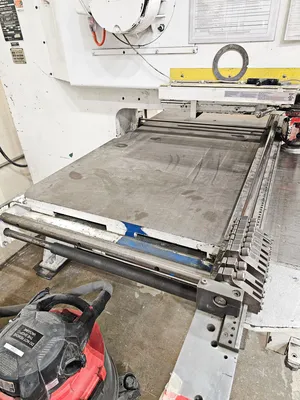

Lead screw back gauge
Microbar & scale side gauge

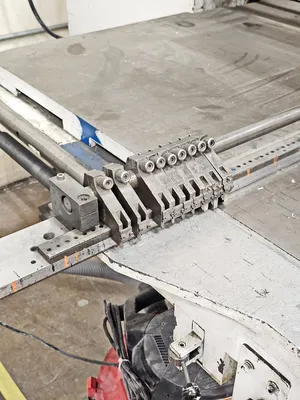

Adjustable finger/gauge stops

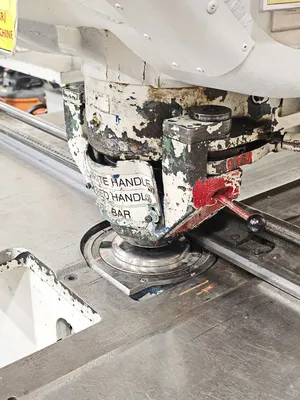

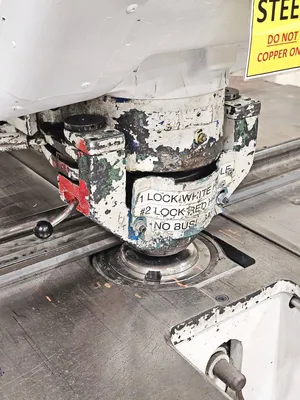

Indexable punching head

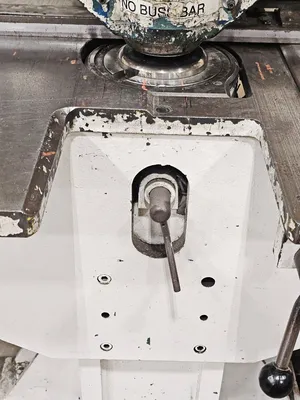

Die elevator
Front & side work support tables
Foot pedal operation

Tonnage40 T36.287 t
Std. Scale Gaging Sheet Size30" X 38"30" X 38"
Std. Microgaging Sheet Size30" X 31"30" X 31"
Max Duplicator Pattern Size30" X 30"30" X 30"
Press Stroke0.625"15.875 mm
# Turret Stations1 station1 station
Max Material Thickness0.25"6.35 mm
Throat Depth5.41"137.41 mm
Max Hole Diameter5"127 mm
Max Hole Dia W/ Shear2" - 0.25" MS / 5" - 10 Ga. MS2" - 0.25" MS / 5" - 10 Ga. MS
Stroke Rate185 SPM185 SPM
Power1.5 hp1.1 kW
Adjustable Table Capacity2.5" Max2.5" Max
Punching Accuracy±0.005"±0.005"
Made InUnited StatesUnited States
Dimensions82" X 48.5" X 71.25"82" X 48.5" X 71.25"
Weight6,800 lb6,800 lb
