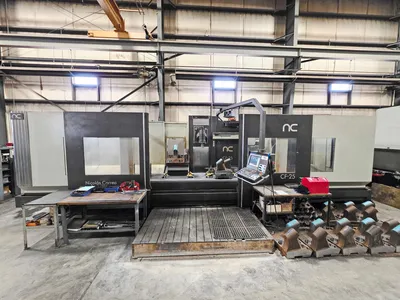

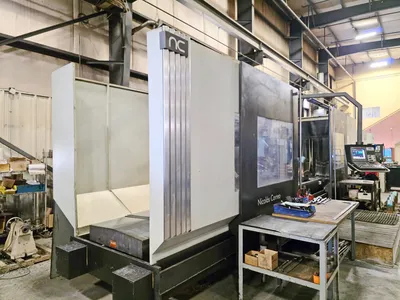

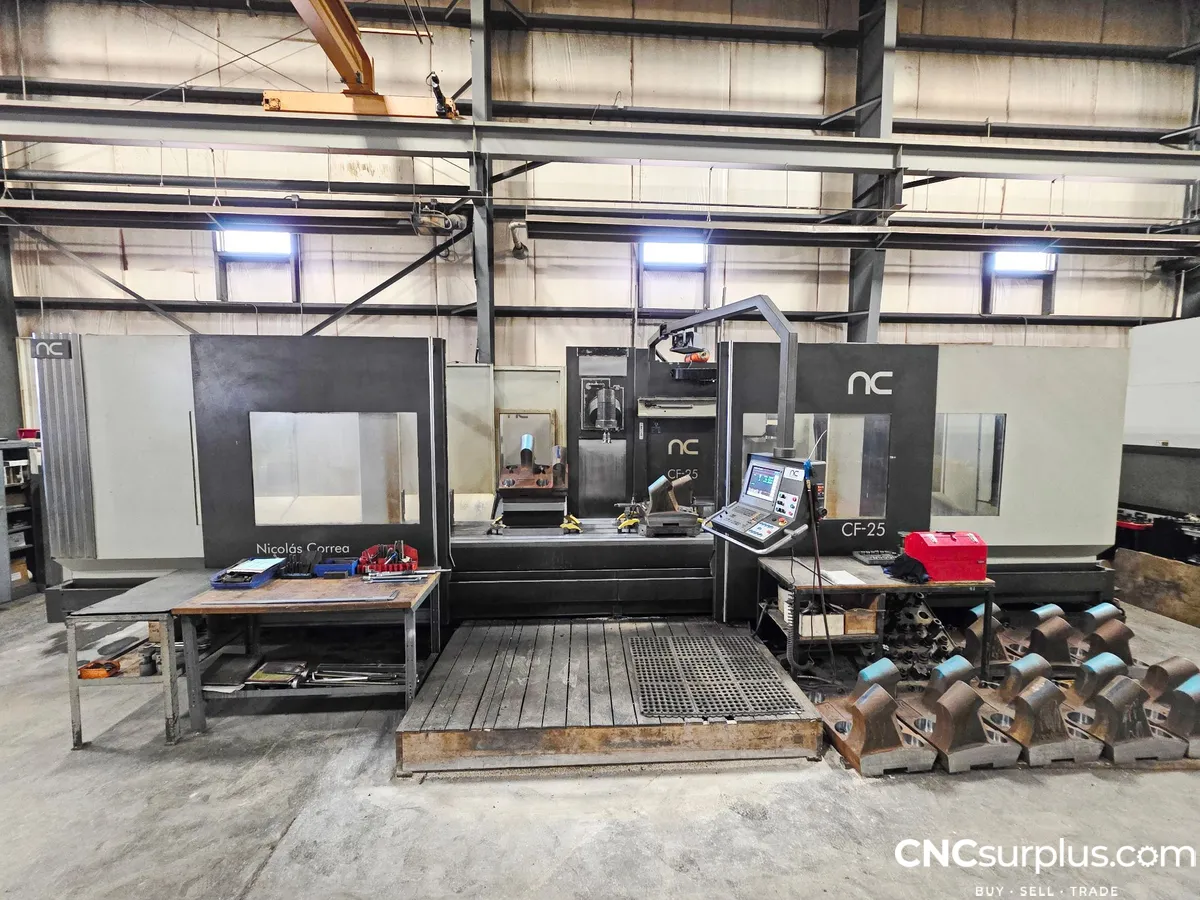

2005 NICOLÁS CORREA CF25/35 BED-TYPE CNC MACHINING CENTER

2005 NICOLÁS CORREA CF25/35 BED-TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Bed Type Mills
Manufacturer:
NICOLAS CORREA
Model:
CF25/35
Year:
2005
Stock #:
14075
Status:
For Sale
Country:
Canada

Description

2005 Nicolás Correa CF25/35 Bed-Type CNC Machining Center, UAD Auto-Indexing Universal Milling Head, 4th-Axis Rotary Table W/ 20" Chuck And Approx. 6" Bore, Internal Coolant, Paper Filtration System, Chip Conveyor

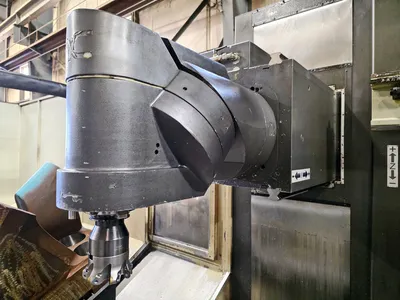

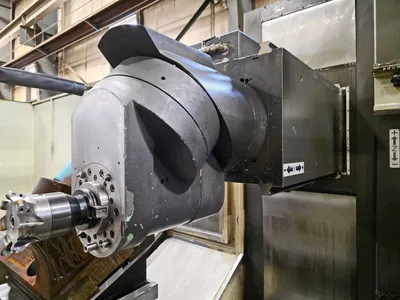

UAD auto-indexing universal milling head (0.1° / 0.1°)
4th-axis rotary table w/ 20" chuck & approx. 6" bore
4th-axis ready
Internal coolant
Chip conveyor
Paper filtration system

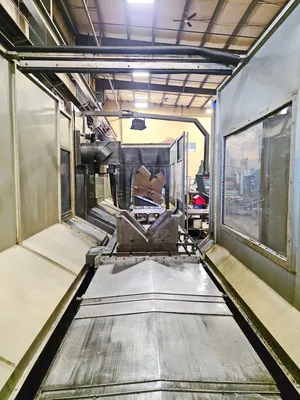

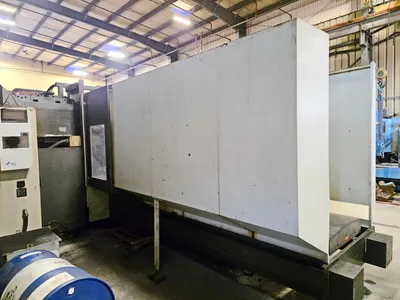

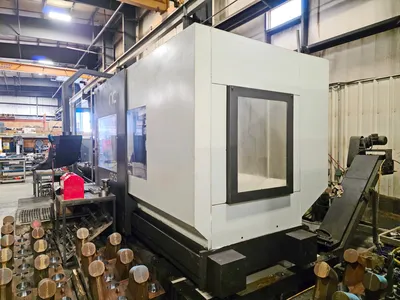

Full machine guarding
Heidenhain HR-410 electronic handwheel

Table-W39.37"1,000 mm
Table-L149.61"3,800.1 mm
# Axis44
X-Axis Travel137.8"3,500.1 mm
Y-Axis Travel39.37"1,000 mm
Z-Axis Travel39.37"1,000 mm

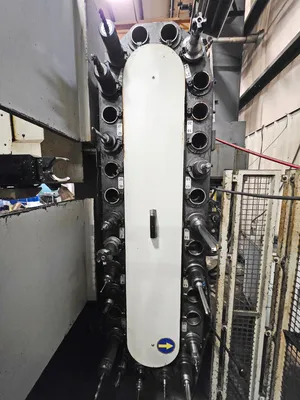

ATC Positions3030
Power29.5 hp22 kW
RPM6,000 RPM6,000 RPM
TaperISO 50 DIN 69871ISO 50 DIN 69871
Max Table Load17,637 lb8,000 kg
Rapid Traverse (X/Y/Z)787 in/min.787 in/min.
Distance Between T-Slots7.87"199.9 mm
Made InSpainSpain

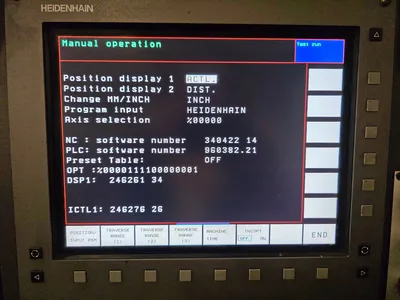

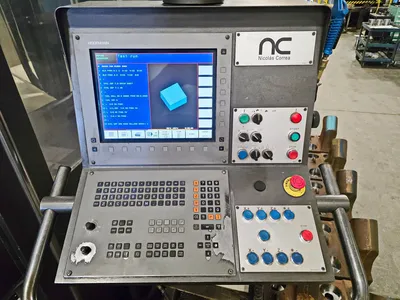

ControlCNC (Heidenhain TNC-530)CNC (Heidenhain TNC-530)
Dimensions384" X 168" X 122" (Approx.)384" X 168" X 122" (Approx.)
Weight48,502 lb48,502 lb
