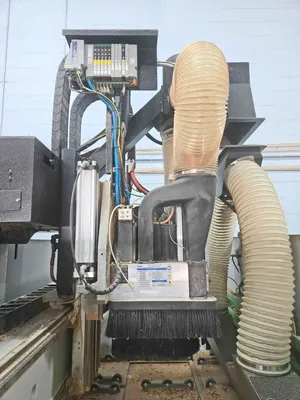

HSD 12hp electrospindle (24,000 rpm)
Automatic tool changer
Multi-zone vacuum nesting table

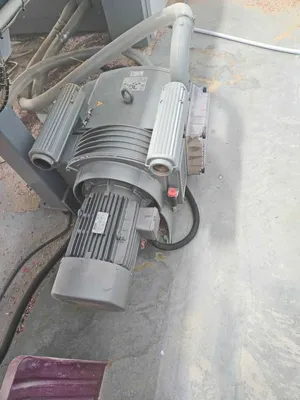

High-capacity vacuum pump system (external blower unit)
Gantry-type construction w/ dual drive motors

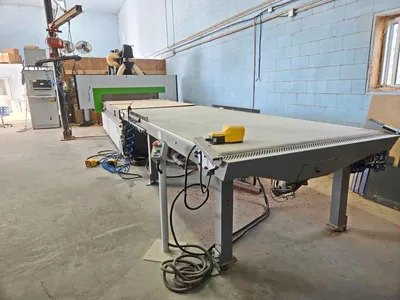

IUnloading conveyor Table
Tool length measuring / presetter system

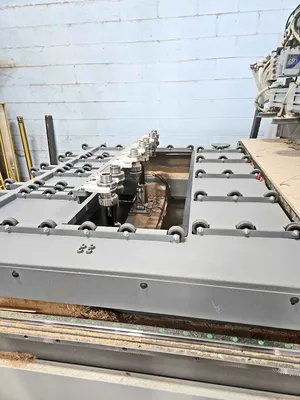

Vertical & horizontal boring head
Grooving saw unit (X-direction)

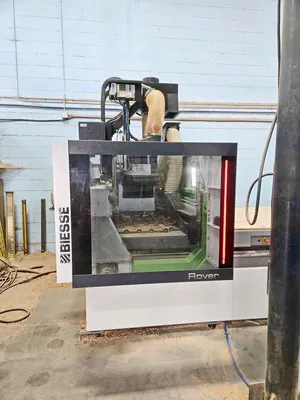

LED status light safety enclosure
Dust extraction hood w/ multi-port collection
| X-Axis Travel | 122" | 3,098.8 mm |
| Y-Axis Travel | 61" | 1,549.4 mm |
| Z-Axis Travel | 7" | 177.8 mm |
| # Axis | 3 | 3 |
| RPM | 24,000 RPM | 24,000 RPM |
| Power | 12 hp | 8.9 kW |
| Rapid Traverse (X/Y) | 2,352 in/min. | 2,352 in/min. |
| Rapid Traverse (Z) | 984 in/min. | 984 in/min. |
| Vector Speed | 3,336 in/min. | 84.7 m/min. |

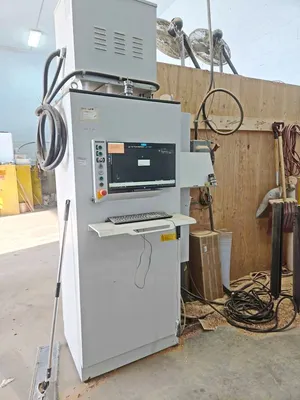

| Control | CNC (PC-Based) | CNC (PC-Based) |
| Dimensions | 266" L x 159" X 99" | 266" L x 159" X 99" |
| Weight | 6,600 lb | 6,600 lb |
This equipment has been sold. Similar equipment available now is shown below.
