Full 5-axis
Dual-pallet changer
Through spindle coolant

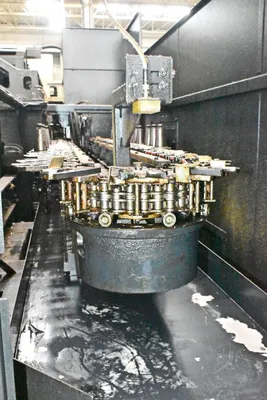

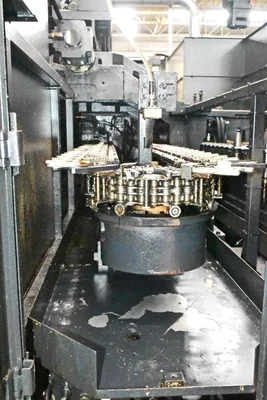

120 atc (chain-type magazine)
Mazak SuperFlow V8 high-pressure coolant (1000 psi)
Programmable coolant nozzle
chip conveyor (rear discharge)
| X-Axis | 24.8" | 629.92 mm |
| Y-Axis | 30.12" | 765.05 mm |
| Z-Axis | 20.08" | 510.03 mm |

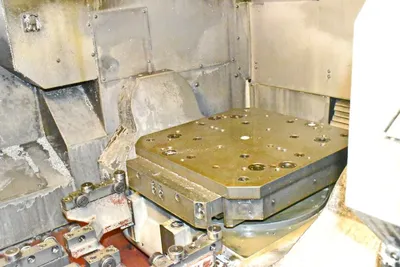

| A-Axis | -120° ~ +30° | -120° ~ +30° |
| C-Axis | ±360° | ±360° |
| Power | 35 hp | 26.1 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT-40 | CAT-40 |

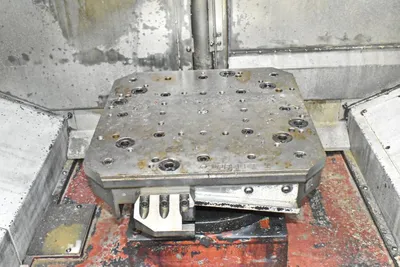

| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| Distance Spindle Nose To Table Top | 29.13" | 739.9 mm |
| # Axis | 5 | 5 |
| Max Table Load | 1,102 lb | 1,102 lb |
| Max Workpiece Height | 19.69" | 500.13 mm |
| Max Worpiece Diamenter | 28.74" | 730 mm |
| Rapid Traverse (X/Y/Z) | 2,047 in/min. | 2,047 in/min. |
| Made In | Japan | Japan |

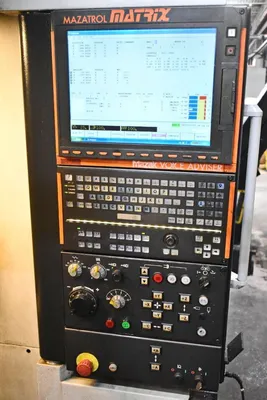

| Control | CNC (MAZATROL MATRIX) | CNC (MAZATROL MATRIX) |
| Dimensions | 228" X 200" X 134" (Approx.) | 228" X 200" X 134" (Approx.) |
| Weight | 37,500 lb | 37,500 lb |
