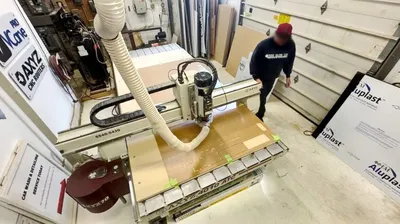

10.8 hp HSD quick-release spindle (24,000 rpm)

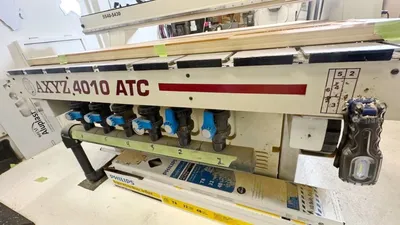

7-position atc

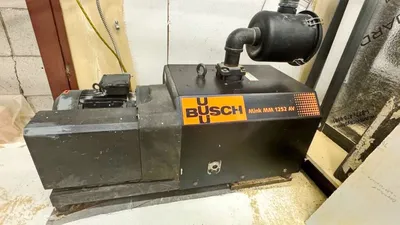

Busch Mink MM 1252 AV vacuum pump

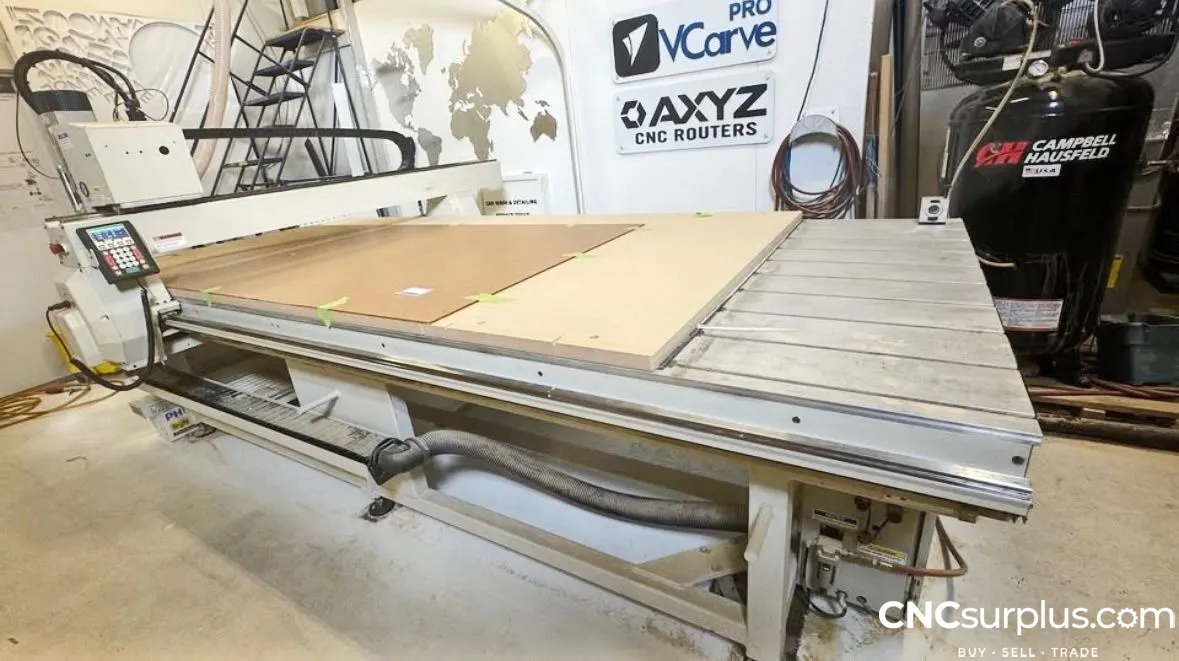

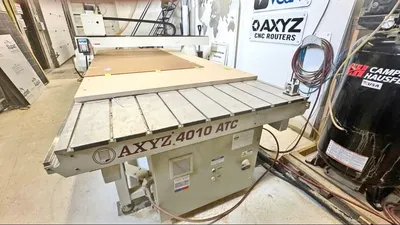

6-zone vacuum hold down table w/ t-slot clamping

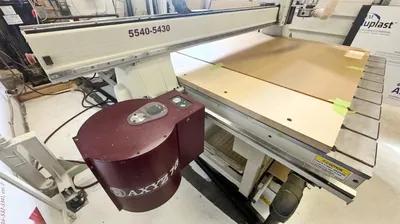

Smart handheld operator console

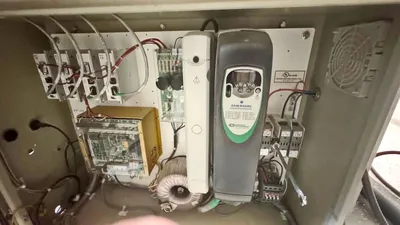

Servo drive system (high speed / high torque)
Rack & pinion drive (x & y axes), ballscrew z axis
Automatic tool length sensor
Dust collection hood / pressure foot

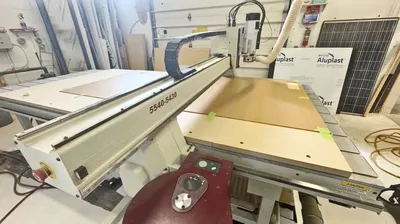

Extended length gantry
Helical rack drive system
Auto gantry squaring
| Table-W | 60" | 1,524 mm |
| Table-L | 120" | 3,048 mm |
| Z-Axis Clearance | 5.9" | 149.86 mm |
| # Axis | 3 | 3 |
| RPM | 24,000 RPM | 24,000 RPM |
| Power | 10.8 hp | 8.1 kW |
| ATC | 7 | 7 |
| Taper | ISO 30 | ISO 30 |
| Repeatability | ±0.001" | ±0.001" |
| Accuracy | ±0.005" | ±0.005" |
| Made In | Canada | Canada |
| Control | CNC (AXYZ A2MC) | CNC (AXYZ A2MC) |
| Dimensions | 56" X 96" X 84" (Approx.) | 56" X 96" X 84" (Approx.) |
| Weight | 4,000 lb | 4,000 lb |
This equipment has been sold. Similar equipment available now is shown below.
