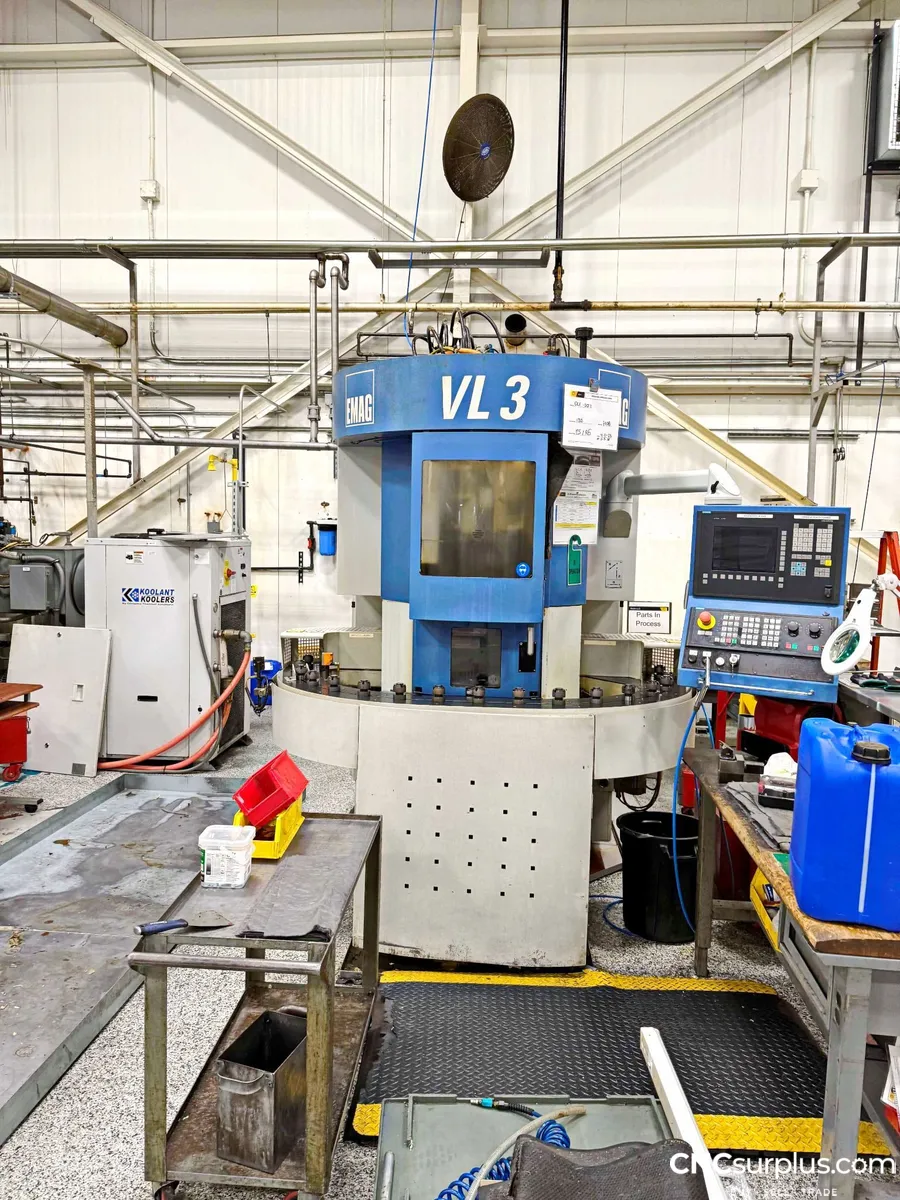

2013 EMAG VL 3 VERTICAL PICK-UP CNC LATHE

2013 EMAG VL 3 VERTICAL PICK-UP CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
EMAG
Model:
VL 3
Year:
2013
Stock #:
14052
Status:
For Sale
Country:
United States

Description

2013 Emag VL 3 Vertical Pick-Up CNC Lathe, Pick-Up Spindle Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Vertical Spindle Configuration, Chip Conveyor

Pick-up spindle automatic loading system
Integrated part conveyor system
Hydraulic power chuck
Vertical spindle configuration
Centralized lubrication system
Coolant system w/ filtration
Chip conveyor

Swing8.27"210.06 mm
# Axis22
Chuck Size6.3"160.02 mm
Power32 hp23.9 kW
Max RPM7,500 RPM7,500 RPM
X-Axis Travel15.75"400.05 mm
Z-Axis Travel7.87"199.9 mm
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
Rapid Traverse (X/Z)2,362 / 1,181 in/min.2,362 / 1,181 in/min.
Turret Capacity1212
ControlCNC (Siemens Sinumerik 840D)CNC (Siemens Sinumerik 840D)
Dimensions96.45" X 74.8" X 90.55"96.45" X 74.8" X 90.55"
Weight12,125 lb12,125 lb
