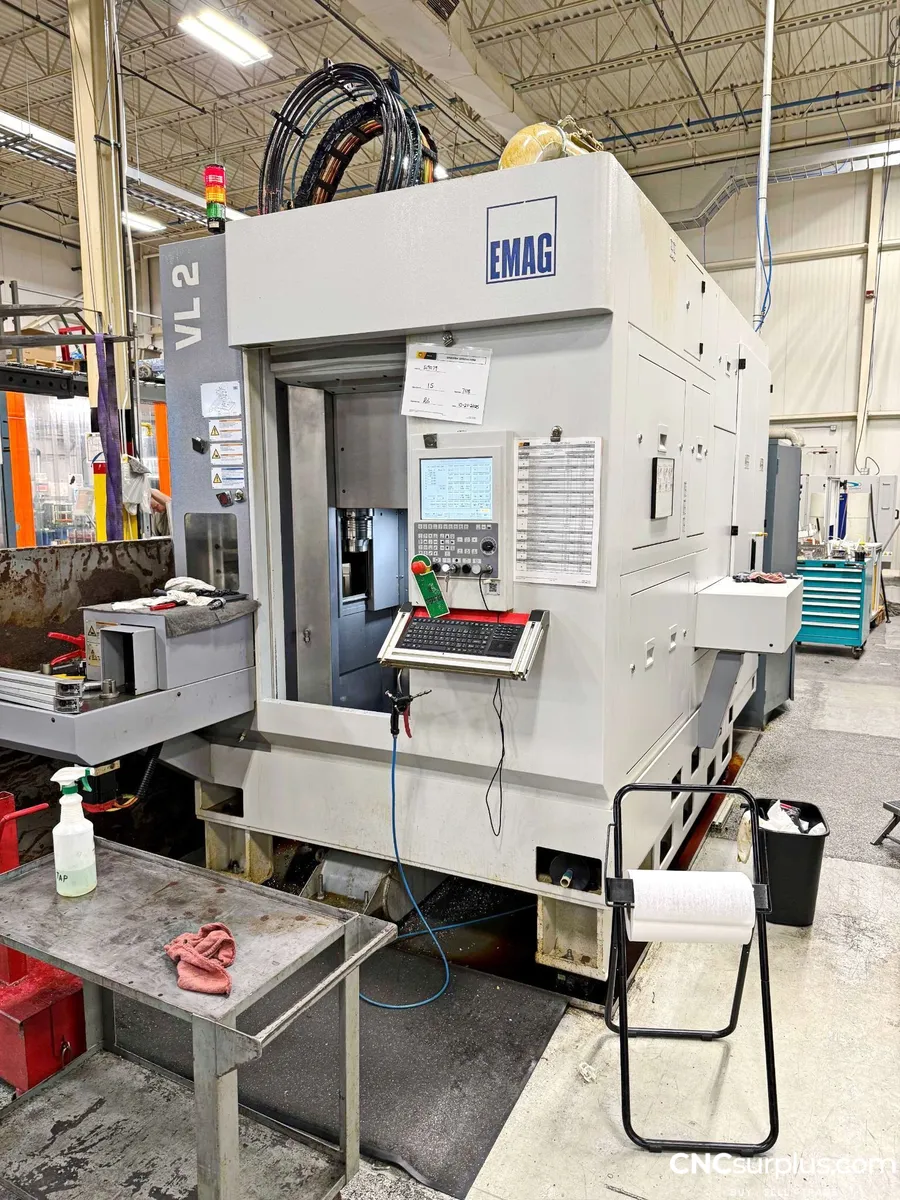

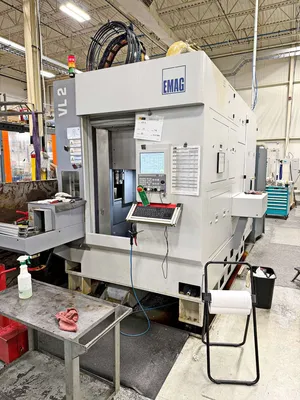

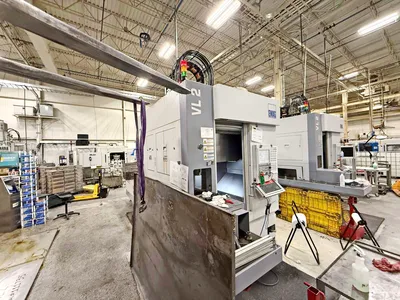

2018 EMAG VL 2 VERTICAL PICK-UP CNC LATHE

2018 EMAG VL 2 VERTICAL PICK-UP CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
EMAG
Model:
VL 2
Year:
2018
Stock #:
14051
Status:
For Sale
Country:
Canada

Description

2018 Emag VL 2 Vertical Pick-Up CNC Lathe, Pick-Up Spindle Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Vertical Spindle Configuration, Chip Conveyor, Assorted Tooling

Pick-up spindle automatic loading system
Integrated part conveyor system

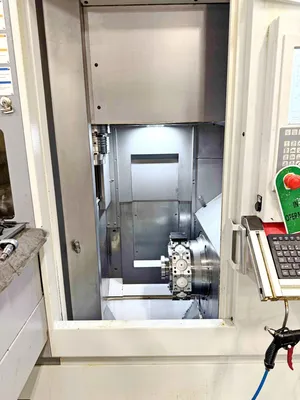

Hydraulic power chuck
Vertical spindle configuration

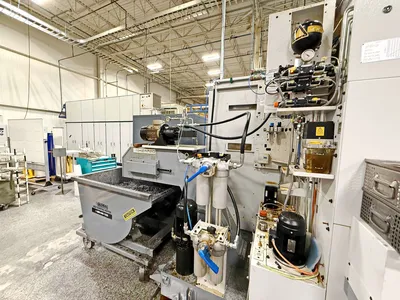

Coolant system
Chip conveyor
Assorted tooling

Swing8.3"210.82 mm
Machining Length6"152.4 mm
Max Turning Dia4"101.6 mm
# Axis22
Chuck Size6.5"165.1 mm
Power26 hp19.4 kW
Max RPM6,000 RPM6,000 RPM
X-Axis Travel27.5"698.5 mm
Z-Axis Travel15"381 mm
C-Axis0.01°0.01°
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
Rapid Traverse (X/Z)2,363 / 1,181 in/min.2,363 / 1,181 in/min.
Turret Capacity1212

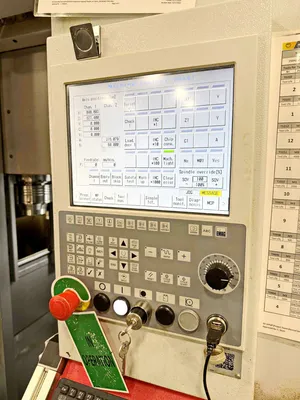

ControlCNC (Emag)CNC (Emag)
Dimensions100" X 63" X 103" (Approx.)100" X 63" X 103" (Approx.)
Weight12,125 lb (Approx.)12,125 lb (Approx.)
