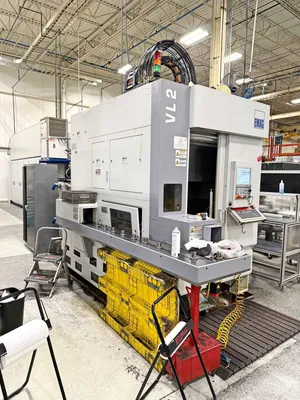

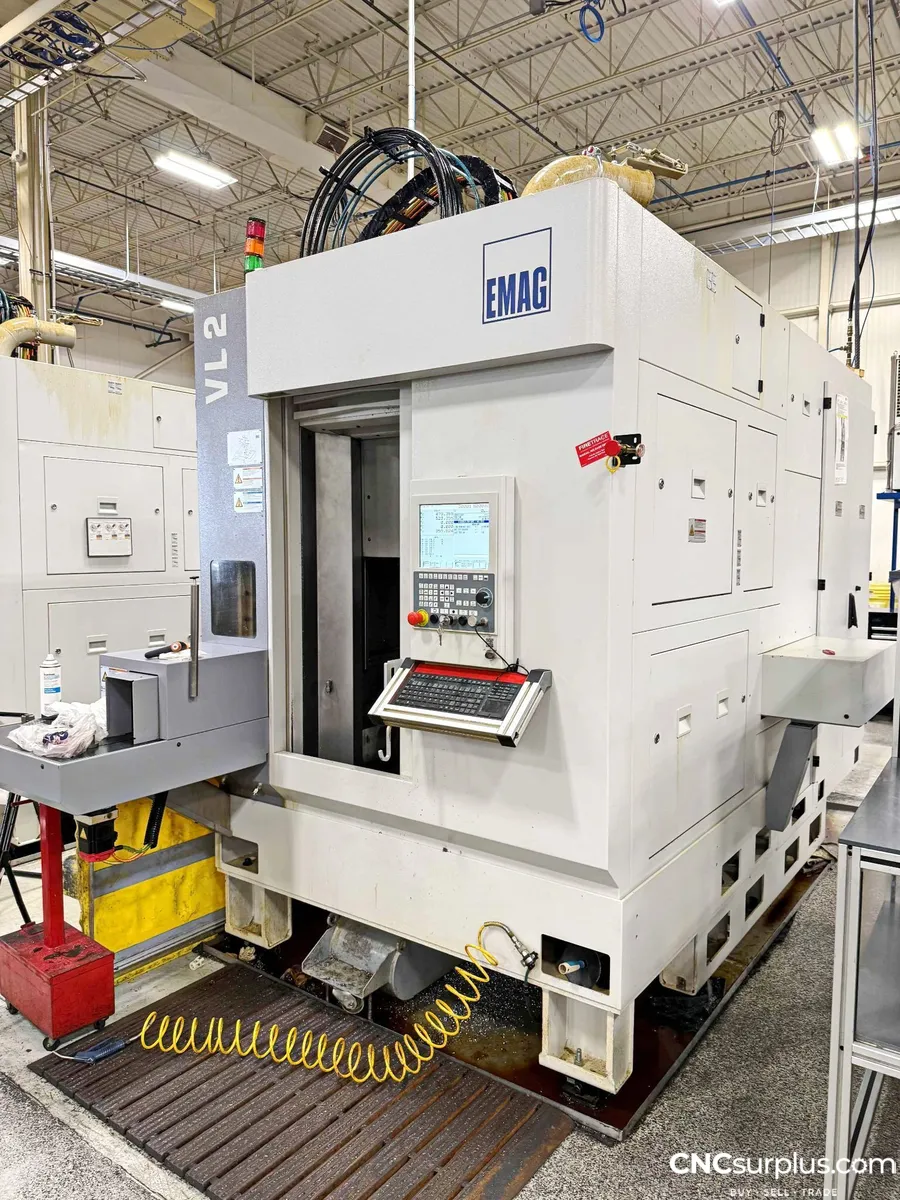

2018 EMAG VL 2 VERTICAL PICK-UP CNC LATHE

2018 EMAG VL 2 VERTICAL PICK-UP CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
EMAG
Model:
VL 2
Year:
2018
Stock #:
14050
Status:
For Sale
Country:
Canada

Description

2018 Emag VL 2 Vertical Pick-Up CNC Lathe, Pick-Up Spindle Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Vertical Spindle Configuration, Chip Conveyor, Assorted Tooling

Pick-up spindle automatic loading system
Integrated part conveyor system

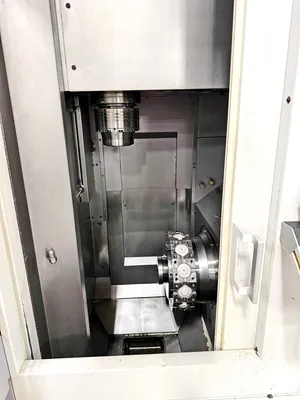

Hydraulic power chuck
Vertical spindle configuration
Coolant system
Chip conveyor
Centralized lubrication system

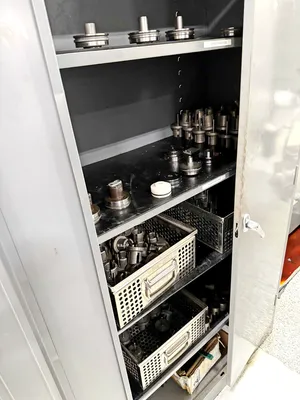

Assorted tooling

Swing8.3"210.82 mm
Machining Length6"152.4 mm
Max Turning Dia4"101.6 mm
# Axis22
Chuck Size6.5"165.1 mm
Power26 hp19.4 kW
Max RPM6,000 RPM6,000 RPM
X-Axis Travel27.5"698.5 mm
Z-Axis Travel15"381 mm
C-Axis0.01°0.01°
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
Rapid Traverse (X/Z)2,363 / 1,181 in/min.2,363 / 1,181 in/min.
Turret Capacity1212

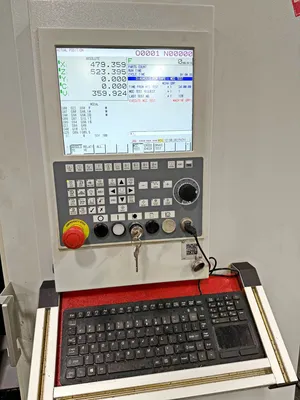

ControlCNC (Emag)CNC (Emag)
Dimensions100" X 63" X 103" (Approx.)100" X 63" X 103" (Approx.)
Weight12,125 lb (Approx.)12,125 lb (Approx.)
