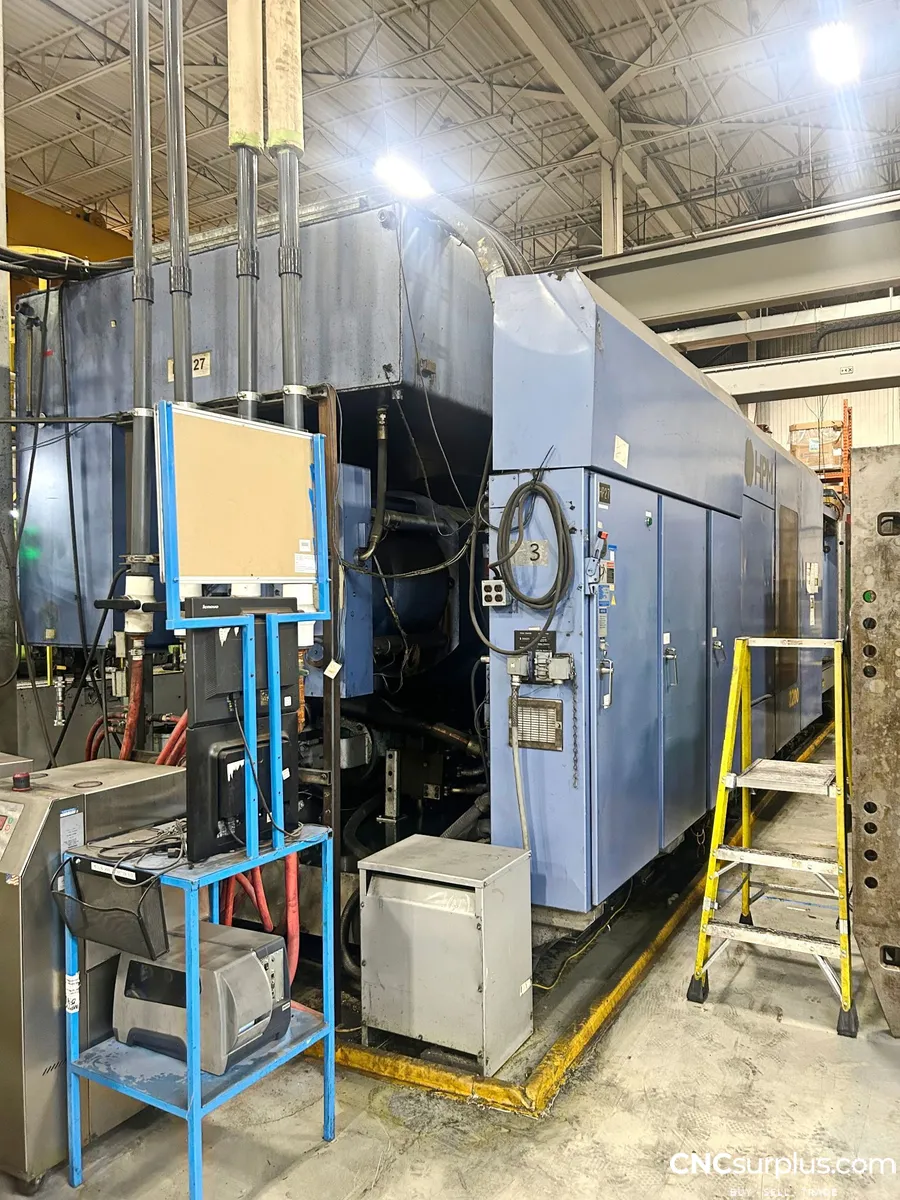

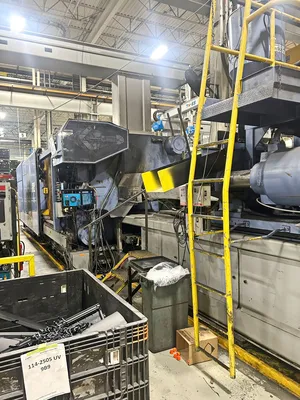

1998 HPM 2200 TON HYDRAULIC INJECTION MOLDING MACHINE
Have one to sell?
ConditionUsed
1 available
$50,000.00 USD
1998 HPM 2200 Ton Hydraulic Injection Molding Machine, Command 9000 Microprocessor Control, Sepro Robot With Visual 3 Interface, 260 Oz General Purpose Barrel, High Pressure Injection System, Multiple Core Pull Circuits, Tie Bar Puller, Large Platen Configuration
Sepro robot with Visual 3 interface

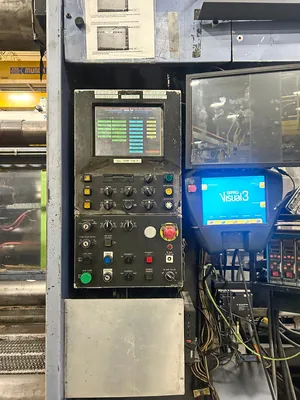

Command 9000 microprocessor control
260 oz general purpose barrel
2200 ton hydraulic clamp
High pressure injection system (27,000 PSI)
Multiple core pull circuits (1 stationary, 2 movable)
Tie bar puller
Robot interface

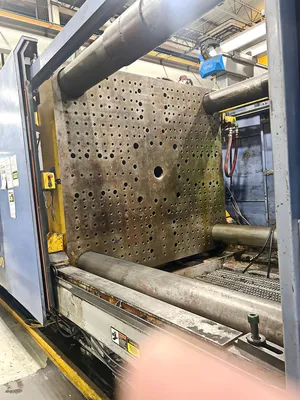

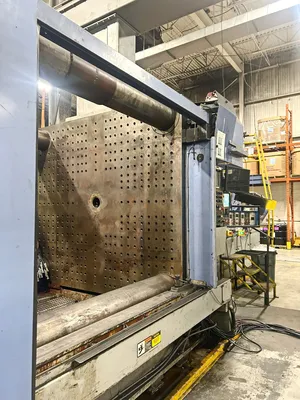

Large platen configuration
Hydraulic screw drive
Hydraulic injection unit
Safety light curtain
Floor mounted design
1998 HPM 2200 Ton Hydraulic Injection Molding Machine, Command 9000 Microprocessor Control, Sepro Robot With Visual 3 Interface, 260 Oz General Purpose Barrel, High Pressure Injection System, Multiple Core Pull Circuits, Tie Bar Puller, Large Platen Configuration
Sepro robot with Visual 3 interface
Command 9000 microprocessor control
260 oz general purpose barrel
2200 ton hydraulic clamp
High pressure injection system (27,000 PSI)
Multiple core pull circuits (1 stationary, 2 movable)
Tie bar puller
Robot interface
Large platen configuration
Hydraulic screw drive
Hydraulic injection unit
Safety light curtain
Floor mounted design
Imperial
| Clamp Type | Hydraulic |
| Tonnage | 2,200 T |
| Min Mold Height | 49" |
| Horz/Vert | Horz |
| Tie Bar Distance | 72" X 63" |
| Overall Platen Size | 100" X 91" |
| Max Opening Stroke | 66" |
| Max Daylight | 115" |
| Ejector Stroke | 12" |
| Screw Dia | 5.236" |
| Screw Stroke | 26.142" |
| Injection Rate | 6.48 oz/sec. |
| Injection Screw Speed | 136 RPM |
| Specific Injection Pressure | 27,000 PSI |
| Core Pulls (Stationary/Movable) | 1 / 2 |
| Barrel Type | General Purpose |
| Screw Drive | Hydraulic |
| Clamp Bolt Size | 1-1/4" - 7 NC |
| Locating Ring Diameter | 5" |
| Nozzle Radius | 0.5" |
| Control | Command 9000 |
| Made In | United States |
| Dimensions | 38' X 9' X 12' (approx). |
| Weight | 200,000 lb (approx). |
