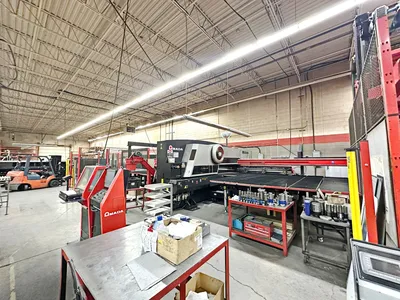

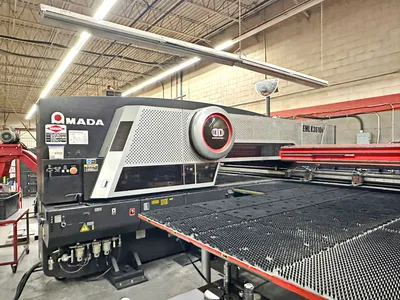

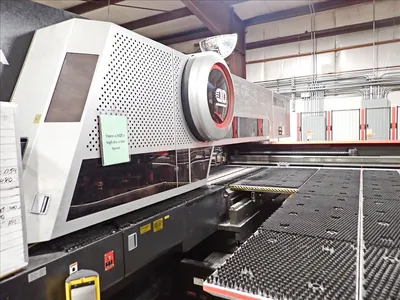

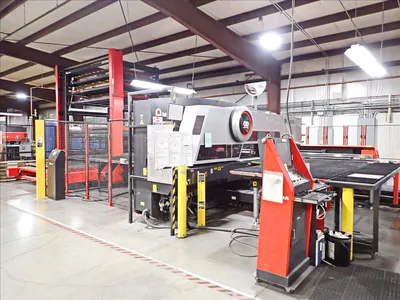

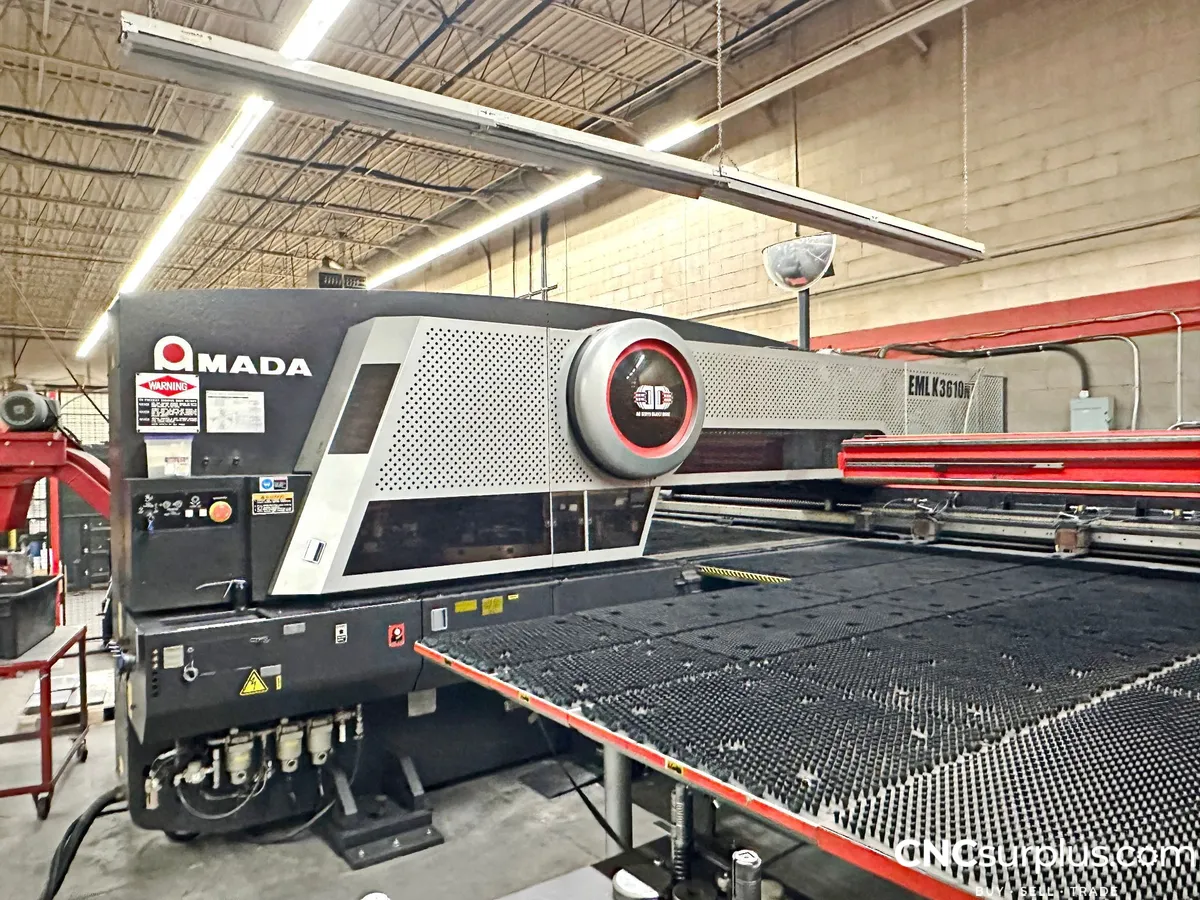

2012 AMADA EMLK3610NT CO2 CNC LASER PUNCH COMBO PRESS, 4KW

2012 AMADA EMLK3610NT CO2 CNC LASER PUNCH COMBO PRESS, 4KW

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Laser Combo Punches
Manufacturer:
AMADA
Model:
EMLK-3610NT
Year:
2012
Stock #:
14039
Status:
For Sale
Country:
Canada

Description

2012 Amada EMLK3610NT CO2 CNC Laser Punch Combo Press, 4 kW, 58-Station King Turret, 4 Auto Index Stations, Amada AS III MP Multi-Shelf Automatic Storage System W/ Load And Unload, Dual Pallet Material Handling, Edge Lifter, Magnetic Separator, Downdraft Dust Collection System, Industrial Water Chiller, Air Knife

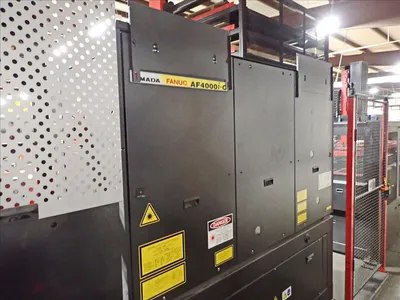

4 kW CO₂ laser (AF-4000E)

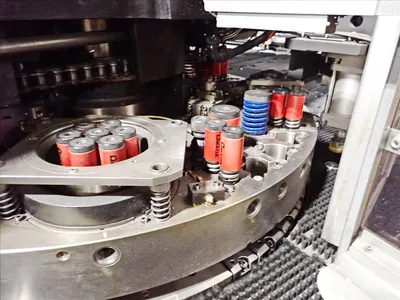

58-station king turret w/ 4 auto index stations

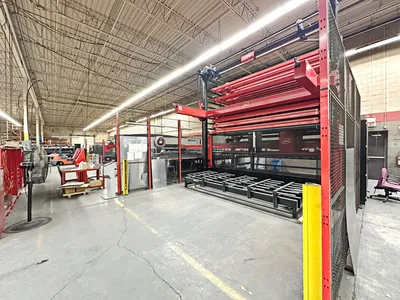

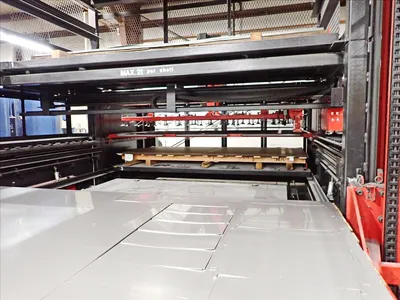

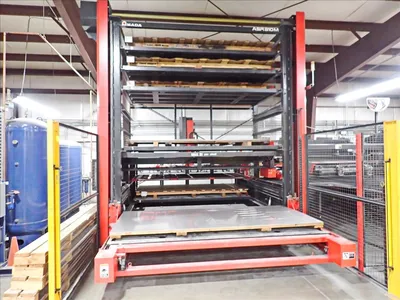

Amada AS III MP multi-shelf automatic storage system w/ load & unload

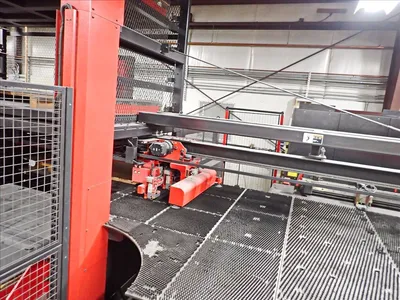

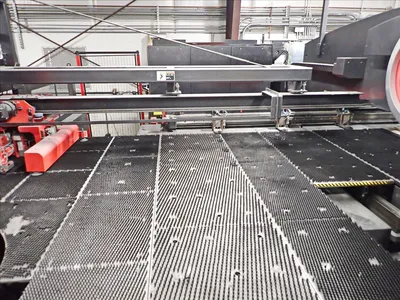

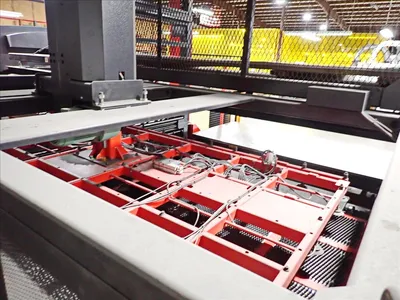

Dual pallet material handling system
Edge lifter sheet separation
Magnetic separator
Air knife sheet separation

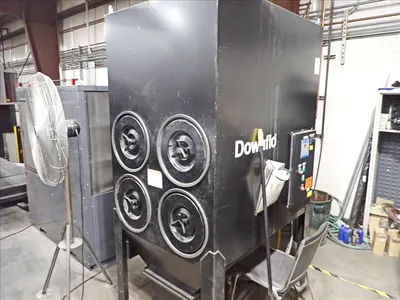

Downdraft dust collection system

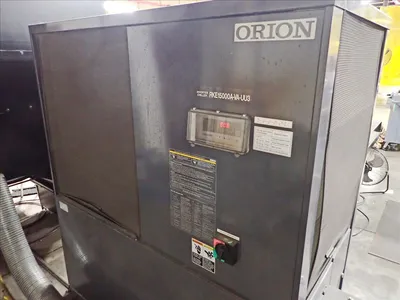

Orion industrial water chiller
Full safety enclosure w/ light curtains

Tonnage33 T29.937 t
# Turret Stations5858
Wattage4,000 W4,000 W
X-Axis (Laser/Punch)100" / 120"100" / 120"
Y-Axis (Laser/Punch)60" / 72"60" / 72"
Max Sheet-L120"3,048 mm
Max Sheet-W60"1,524 mm
Max Material Weight330 lb149.7 kg
Max Hit Rate (1” Centers)400 hit/min.400 hit/min.
Stroke Rate (Marking)1,800 hit/min.1,800 hit/min.
X-Axis Speed3,937 in/min.100 m/min.
Y-Axis Speed3,149 in/min.80 m/min.
X/Y Simultaneous5,051 in/min.128.3 m/min.
Punching Accuracy±0.004"±0.004"
Positioning Accuracy±0.00012" / 39.37"±0.00012" / 39.37"
Repeatability±0.00027"±0.00027"
Made InJapanJapan

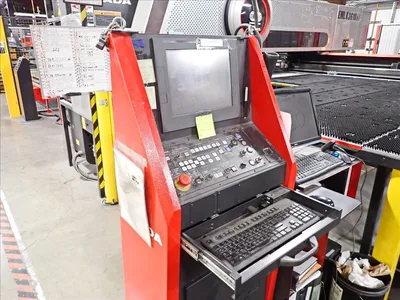

ControlCNC (AMNC/PC)CNC (AMNC/PC)
Dimensions200" X 160" X 105" (Approx.)200" X 160" X 105" (Approx.)
Weight66,139 lb66,139 lb
