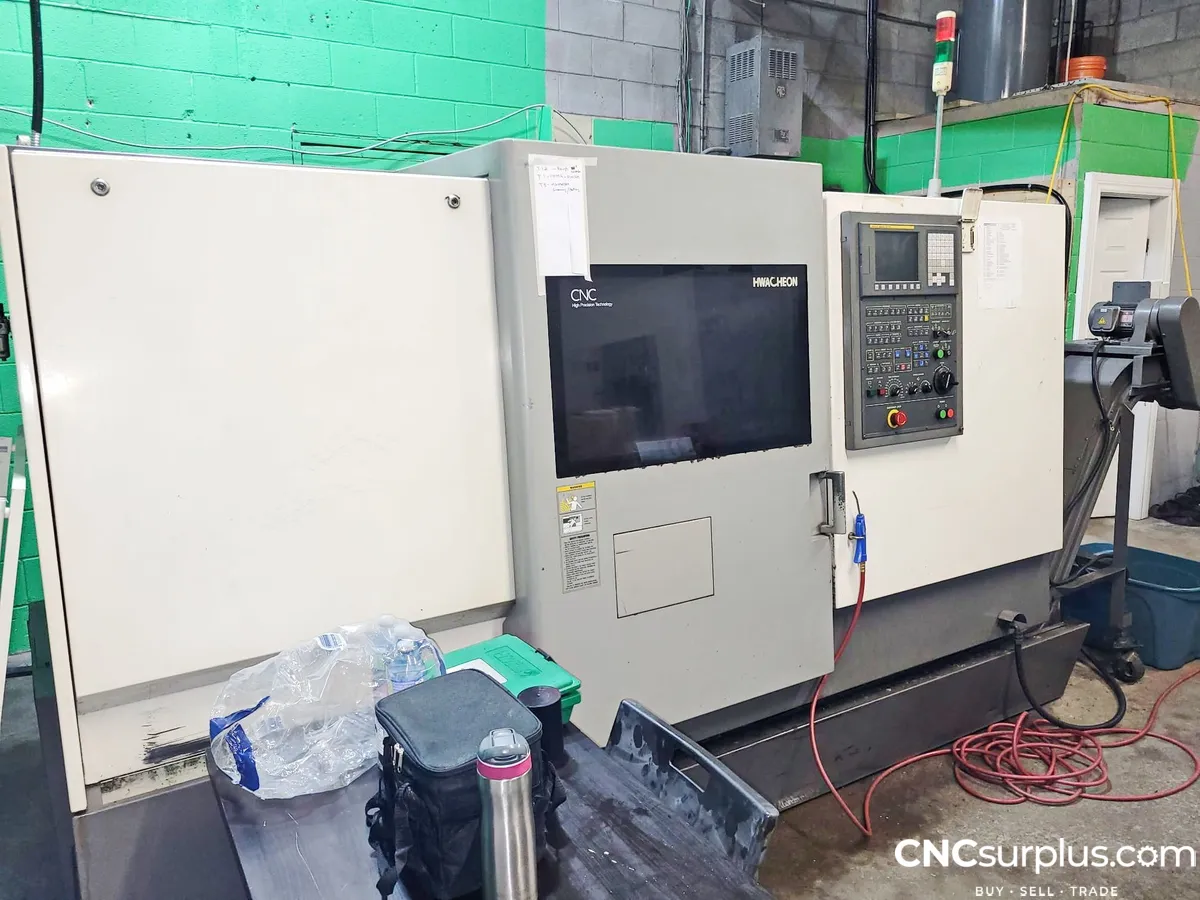

2007 HWACHEON CUTEX-240A/SMC CNC LATHE, SUB-SPINDLE, LIVE TOOLING

2007 HWACHEON CUTEX-240A/SMC CNC LATHE, SUB-SPINDLE, LIVE TOOLING

Have one to sell?
905-635-7530
sales@cncsurplus.com
$19,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HWACHEON
Model:
CUTEX-240A/SMC
Year:
2007
Stock #:
14036
Status:
For Sale
Country:
Canada

Description

2007 Hwacheon Cutex-240A/SMC CNC Lathe, Sub-Spindle, Live Tooling, C-Axis, B-Axis, 8" And 6" Hydraulic Chucks, Chip Conveyor

Sub-spindle

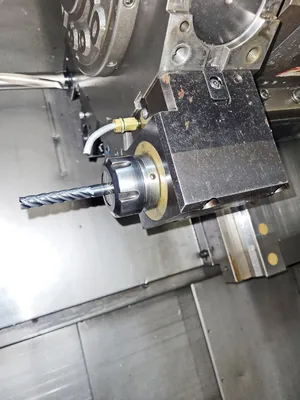

Live tooling (5,000 rpm)
C-axis
B-axis

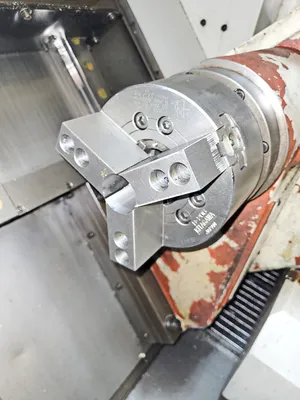

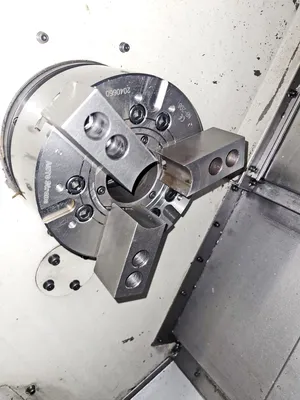

8" Auto Strong NB-208 hydraulic chuck (main)
6" Kitagawa B206 hydraulic chuck (sub)
Coolant system
Chip conveyor

Swing22.8"579.12 mm
Machining Length22.4"568.96 mm
Max Turning Dia14.96"379.98 mm
Std Turning Dia8.6"218.44 mm
# Axis44
Chuck Size (Main)8"203.2 mm
Chuck Size (Sub)6"152.4 mm
Bar Capacity (Main)2"50.8 mm
Bar Capacity (Sub)1.81"45.974 mm
Spindle Through Hole (Main)2.95"74.93 mm
Spindle Through Hole (Sub)2.17"55.118 mm
Power (Main)25 hp18.6 kW
Power (Sub)20 hp14.9 kW
Power (Live Tooling)5 hp3.7 kW
Max RPM (Main)5,000 RPM5,000 RPM
Max RPM (Sub)6,000 RPM6,000 RPM
Max RPM (Live Tooling)5,000 RPM5,000 RPM
Spindle Nose (Main)A2-6A2-6
Spindle Nose (Sub)A2-5A2-5
X-Axis Travel8.6"218.44 mm
Z-Axis Travel26.18"664.97 mm
TailstockNoNo
Live ToolingYesYes
Sub SpindleYesYes
Rapid Traverse (X/Z)1,417 / 1,417 in/min.1,417 / 1,417 in/min.
Turret Capacity1212
Made InKoreaKorea
ControlCNC (FANUC 0i-TC)CNC (FANUC 0i-TC)
Dimensions127.17" X 71.46" X 75.39"127.17" X 71.46" X 75.39"
Weight9,700 lb9,700 lb
