High-pressure coolant system
Live tooling (10,000 rpm)
Y-axis

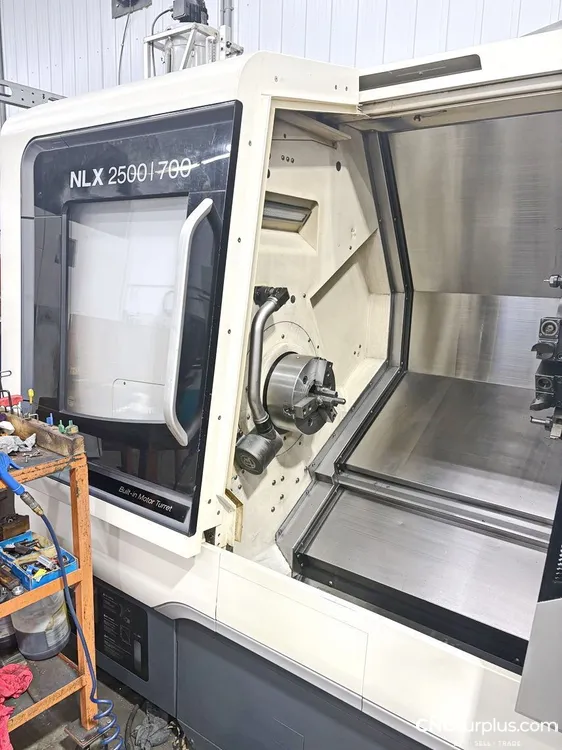

10" Kitagawa hydraulic chuck

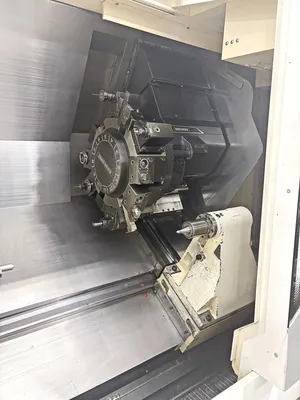

Programmable servo tailstock
MT5 live center
Tool presetter

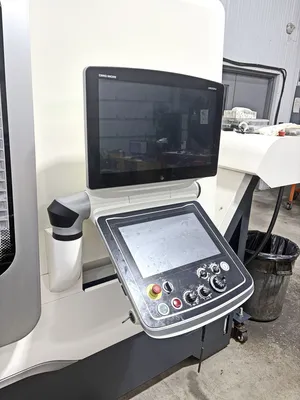

CELOS ERGOline touch control
Signal tower status light
Ethernet
Bar feeder interface

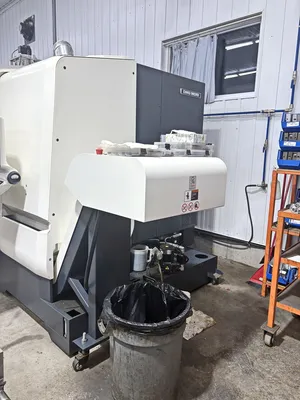

Chip conveyor
| Max Swing | 36.2" | 919.48 mm |
| Turning Dia | 14.4" | 365.76 mm |
| Max Swing Over Cross Slide | 29.2" | 741.68 mm |
| Machining Length | 27.7" | 703.58 mm |
| # Axis | 5 | 5 |
| Bar Capacity | 3.1" | 78.74 mm |
| Power | 24.7 hp | 18.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Max RPM (Live Tooling) | 10,000 RPM | 10,000 RPM |
| X-Axis Travel | 10.2" | 259.08 mm |
| Y-Axis Travel | ±1.97" | ±1.97" |
| Z-Axis Travel | 31.2" | 792.48 mm |
| Spindle Nose | A2-8 | A2-8 |
| Tailstock | Yes | Yes |
| Tailstock Travel | 28.8" | 731.52 mm |
| Live Tooling | Yes | Yes |
| Tailstock Taper | MT5 | MT5 |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 1,181 in/min. | 1,181 in/min. |
| Rapid Traverse (Y) | 393 in/min. | 10 m/min. |

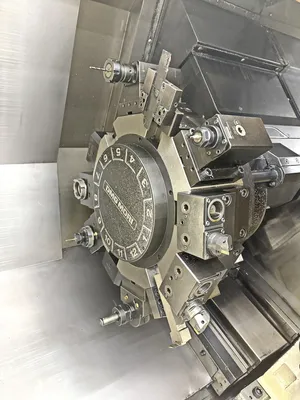

| Turret Capacity | 12 | 12 |
| Made In | Japan | Japan |
| Control | CNC (M730UM w/ CELOS) | CNC (M730UM w/ CELOS) |
| Dimensions | 131.8" X 82.9" X 86.6" | 131.8" X 82.9" X 86.6" |
| Weight | 13,536 lb | 13,536 lb |

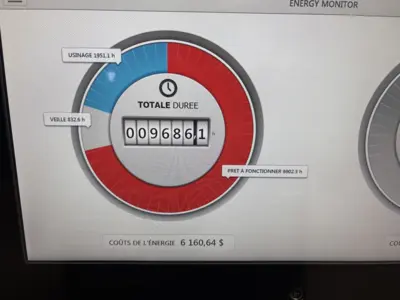

- Only 1951 cutting hours
This equipment has been sold. Similar equipment available now is shown below.
