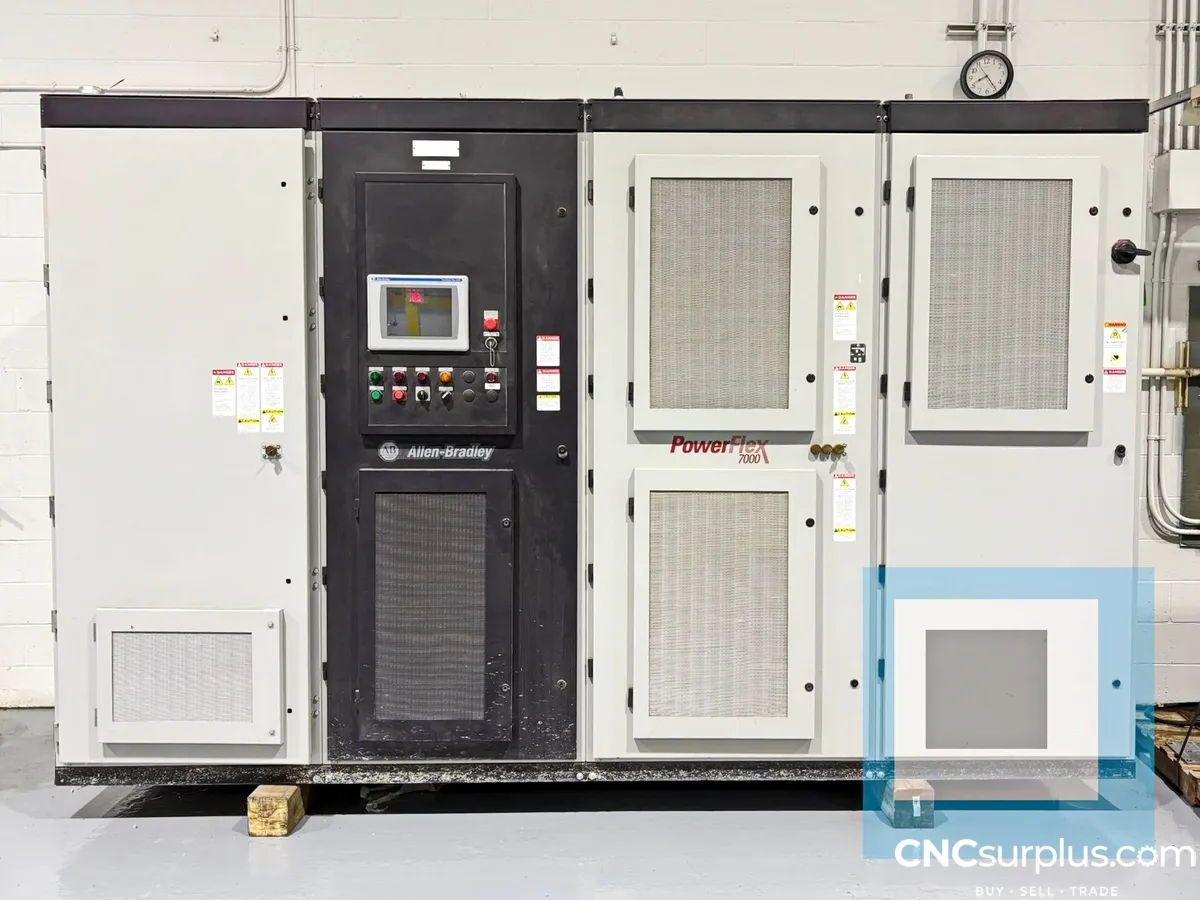

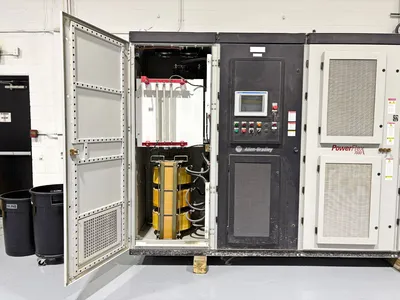

2016 ALLEN-BRADLEY POWERFLEX 7000 4160V 1500 HP MEDIUM VOLTAGE VFD DRIVE

2016 ALLEN-BRADLEY POWERFLEX 7000 4160V 1500 HP MEDIUM VOLTAGE VFD DRIVE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Medium Voltage Variable Frequency Drive
Manufacturer:
ALLEN BRADLEY
Model:
POWERFLEX 7000
Year:
2016
Stock #:
14027
Status:
For Sale
Country:
Canada

Description

2016 Allen-Bradley Powerflex 7000 4160V 1500 Hp Medium Voltage VFD Drive, Air-Cooled Design, Digital Sensorless Vector Control, 10" Color Touchscreen HMI, Modular SGCT Power Section, Near Sinusoidal Output Waveform

Air-cooled design
Digital sensorless vector control
EtherNet/IP communication

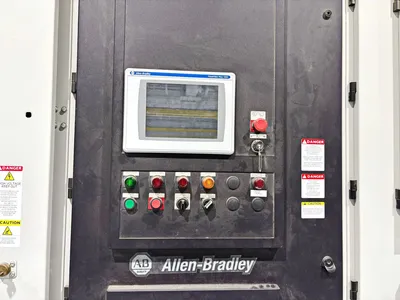

10" color touchscreen HMI

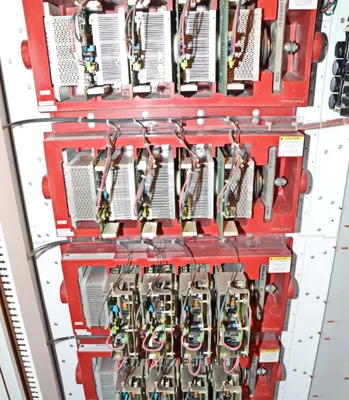

Modular SGCT power section
Near sinusoidal output waveform
Keyed mechanical safety interlocks

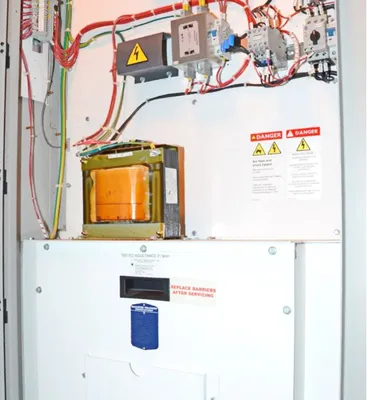

Integrated low voltage control supply

Voltage Class4160 V (4.16 kV)4160 V (4.16 kV)
Power1,500 hp1,118.6 kW
Drive Current215 A215 A
Input Voltage4160 V, 3 Phase, 60 Hz4160 V, 3 Phase, 60 Hz
Output Frequency0.2 - 75 Hz0.2 - 75 Hz
Motor CompatibilityInduction or Synchronous AC MotorInduction or Synchronous AC Motor
Cooling TypeAir-CooledAir-Cooled
Drive TypeMedium Voltage Variable Frequency Drive (VFD)Medium Voltage Variable Frequency Drive (VFD)
Overload Rating110% (Normal Duty), 150% (Heavy Duty) - 1 Min.110% (Normal Duty), 150% (Heavy Duty) - 1 Min.
Enclosure RatingIP42IP42
Control MethodDigital Sensorless Vector Control (Encoder Optional)Digital Sensorless Vector Control (Encoder Optional)
Communication ProtocolEtherNet/IPEtherNet/IP
Efficiency97.5% (Typical)97.5% (Typical)
Made InCanadaCanada
Dimensions156" X 54" X 96" (Approx.)156" X 54" X 96" (Approx.)
Weight12,000 lb (Approx.)12,000 lb (Approx.)
