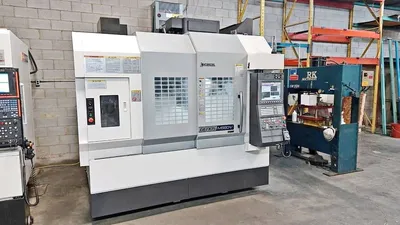

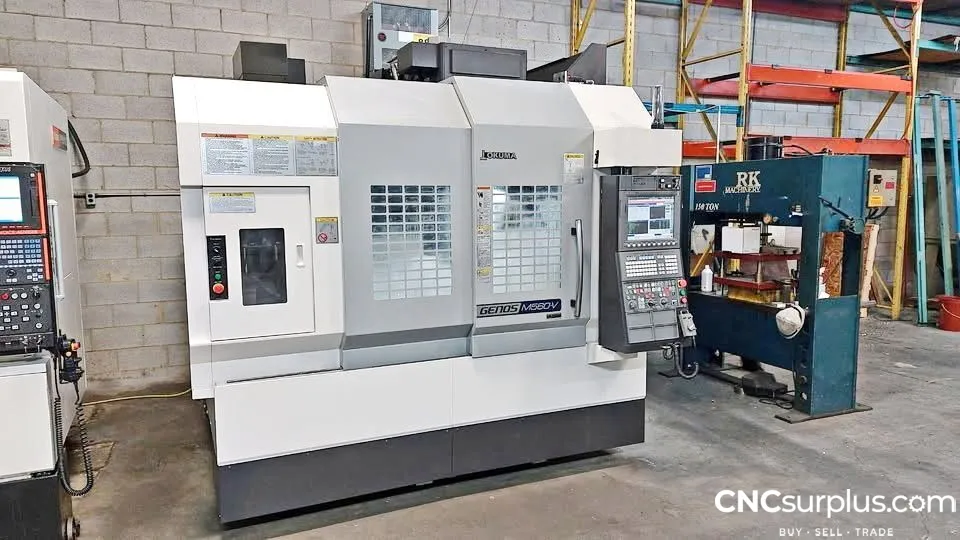

2019 OKUMA GENOS M560-V VERTICAL CNC MACHINING CENTER

Address: 3040 New Street, Suite 206, Burlington, ON, L7N 1M5, CA
Telephone: 905-635-7530

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

Model:

GENOS M560-V

Year:

2019

Stock #:

14019

Status:

For Sale

Country:

Canada

2019 Okuma Genos M560-V Vertical CNC Machining Center, Renishaw Probing, Chip Conveyor, 4th Axis Ready

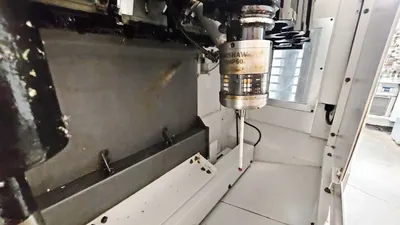

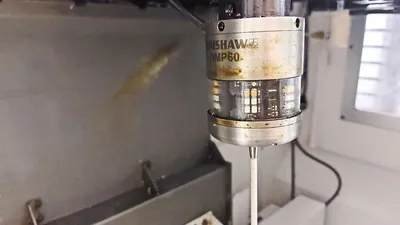

Renishaw OMP60 probe
Renishaw tool height setter
4th axis ready
Chip conveyor
Spindle cooling system

ImperialMetric

X-Axis	41.34"	1,050 mm
Y-Axis	22.05"	560.07 mm
Z-Axis	18.11"	459.99 mm
Power	30 hp	22.4 kW
RPM	15,000 RPM	15,000 RPM
# ATC	32	32
Taper	CAT-40	CAT-40
Table-W	22.05"	560.07 mm
Table-L	51.15"	1,299.2 mm
# Axis	3	3
Max Table Load	1,980 lb	898.1 kg
Distance Spindle Nose to Table	24.02"	610.11 mm
Rapids (X/Y/Z)	1,575 / 1,575 / 1,260 in/min.	1,575 / 1,575 / 1,260 in/min.

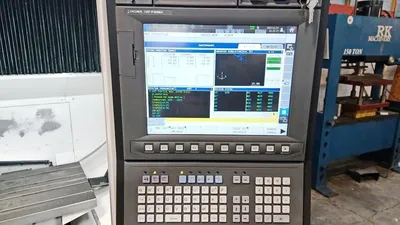

Control	CNC (Okuma OSP-P300MA)	CNC (Okuma OSP-P300MA)
Dimensions	125.75" X 100.94" X 108.11"	125.75" X 100.94" X 108.11"
Weight	18,260 lb	18,260 lb
