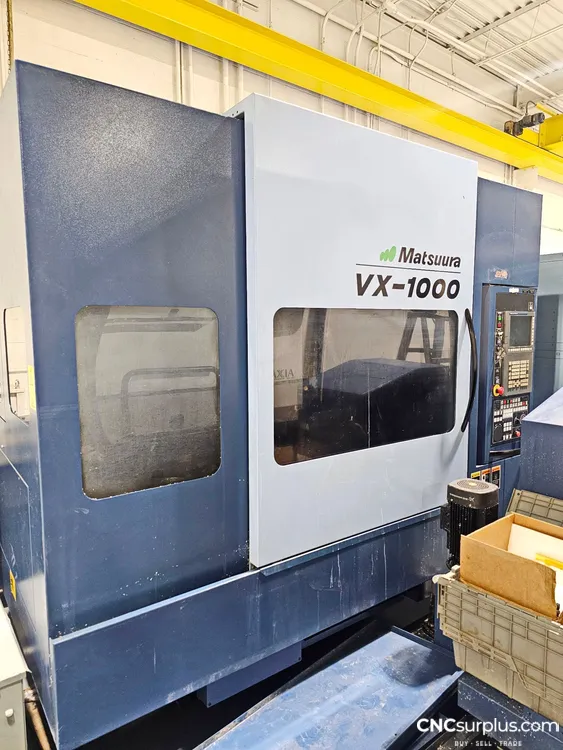

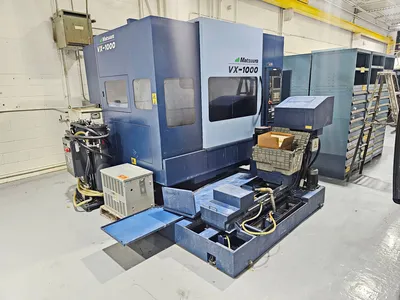

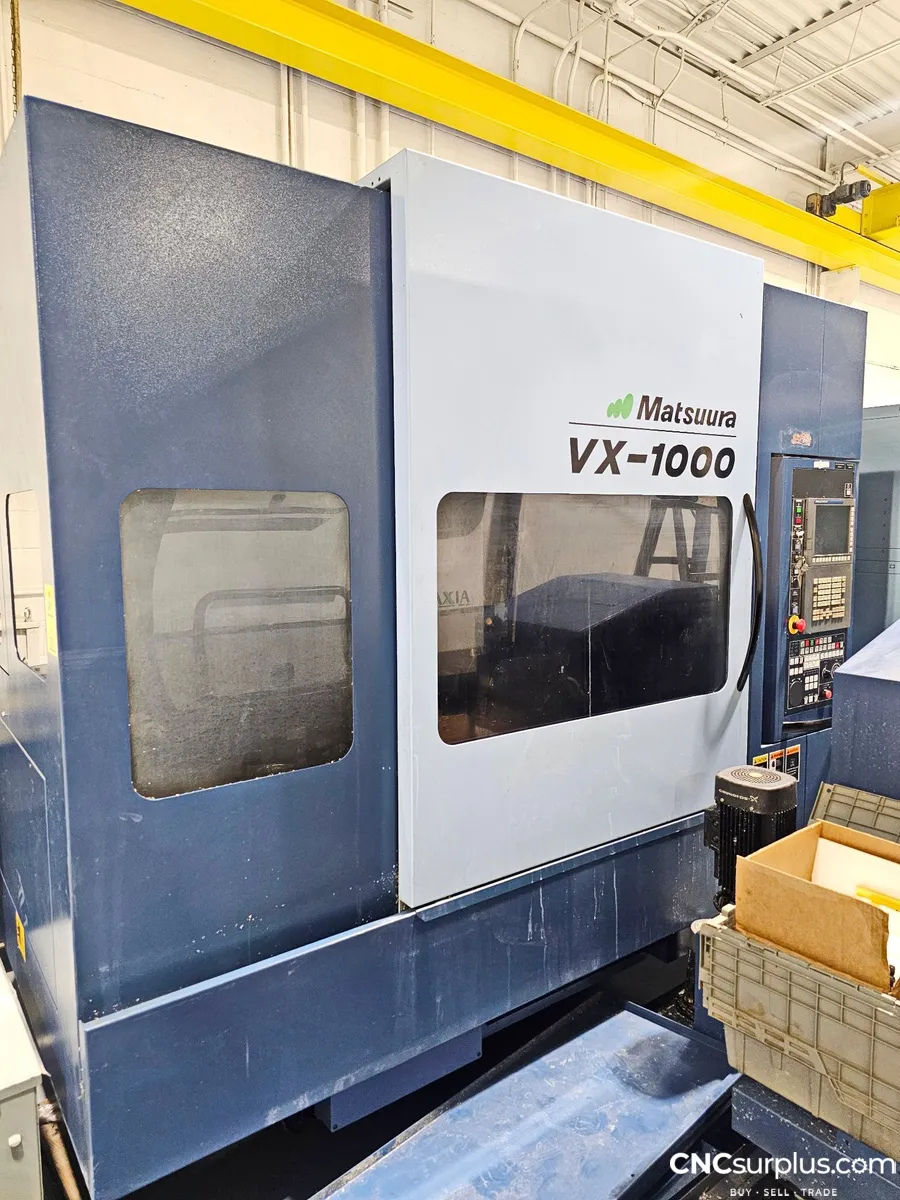

2017 MATSUURA VX-1000 VERTICAL CNC MACHINING CENTER - 5 AXIS

2017 MATSUURA VX-1000 VERTICAL CNC MACHINING CENTER - 5 AXIS

Have one to sell?
905-635-7530
sales@cncsurplus.com
$75,000.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
MATSUURA
Model:
VX-1000
Year:
2017
Stock #:
14012
Status:
For Sale
Country:
Canada

Description

2017 Matsuura VX-1000 Vertical CNC Machining Center, 5-Axis Trunnion Rotary Table, TSC, Renishaw Probing, Coolant Filtration, Spindle Chiller, Chip Conveyor

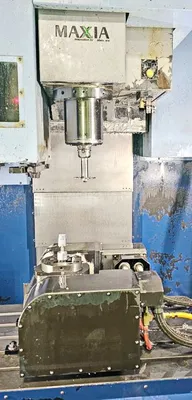

5-axis trunnion rotary table
Through spindle coolant
LNS coolant filtration
Renishaw OMP-40 in-process touch probe

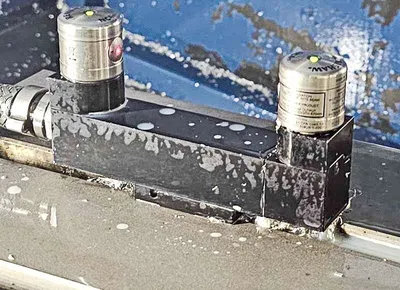

Renishaw NC-4 non-contact laser tool probe
Refrigerated spindle chiller
Chip conveyor

X-Axis40.15"1,019.8 mm
Y-Axis24.01"609.85 mm
Z-Axis24.01"609.85 mm
B-Axis-30° ~ +110°-30° ~ +110°
C-Axis360°360°
Power30 hp22.4 kW
RPM15,000 RPM15,000 RPM
# ATC3030
TaperCAT-40CAT-40
Table-W30"762 mm
Table-L47.24"1,199.9 mm
Distance Spindle Nose To Table Top27.95"709.93 mm
# Axis55
Max Table Load11001100
Rapid Traverse (X/Y/Z)1574.8 / 1574.8 / 1417.32 in/min.1574.8 / 1574.8 / 1417.32 in/min.
Made InJapanJapan

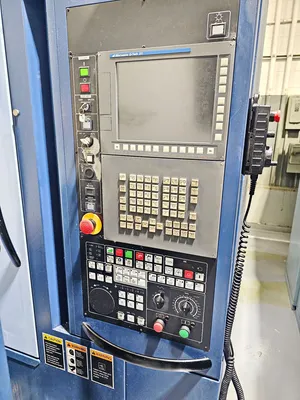

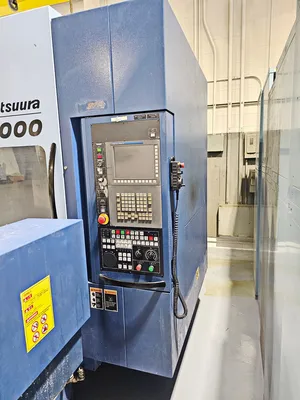

ControlCNC (Matsuura G-Tech 31i)CNC (Matsuura G-Tech 31i)
Dimensions108.3" X 99.01" X 119.29"108.3" X 99.01" X 119.29"
Weight16,258 lb16,258 lb
