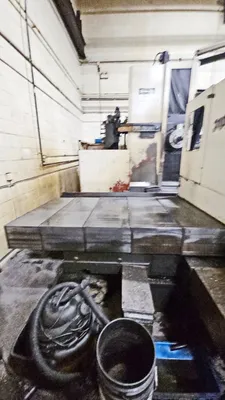

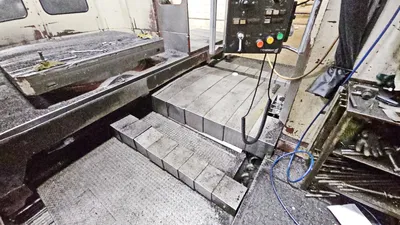

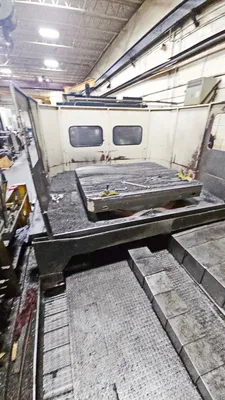

B-axis rotary table

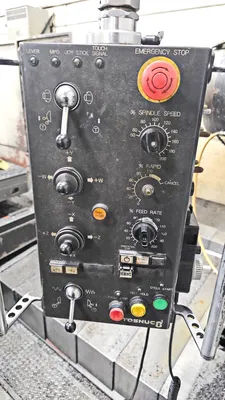

Tosnuc 888 portable hand pendant

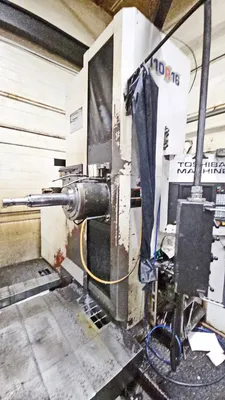

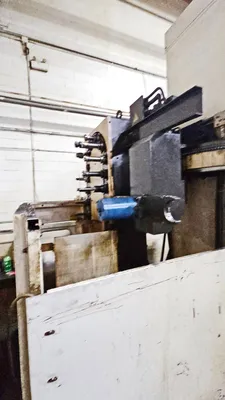

Integrated quill spindle assembly
Full-length chip conveyor
Coolant tank and pump system

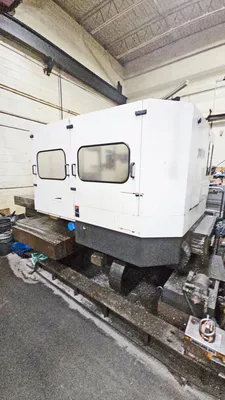

Full machine guarding enclosure

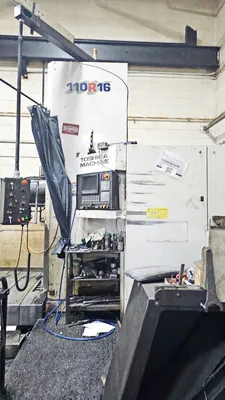

Adjustable pendant mounting arm

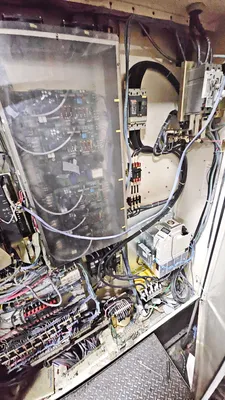

Toshiba/Shibaura servo amplifier rack

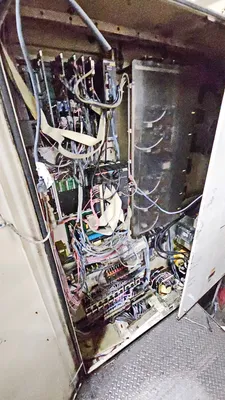

Toshiba axis servo drives
Spindle load meter
Assorted bt-50 tooling
| Spindle Size | 4.33" | 109.98 mm |
| Spindle Taper | 7/24 No. 50 (BT-50) | 7/24 No. 50 (BT-50) |
| X-Axis | 78.74" | 2,000 mm |
| Y-Axis | 59.06" | 1,500.1 mm |
| Z-Axis | 57.09" | 1,450.1 mm |
| W-Axis | 21.65" | 549.91 mm |
| B-Axis | 360° | 360° |
| Power | 20 hp | 14.9 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 59.12" | 1,501.6 mm |
| Table-L | 62.99" | 1,599.9 mm |
| Max Table Load | 13,889 lb | 13,889 lb |
| ATC | 38 | 38 |
| Rapid Traverse (X/Y/Z/W) | 393 / 393 / 393 / 196 in/min. | 393 / 393 / 393 / 196 in/min. |
| Positioning | 0.0006" | 0.0152 mm |
| Repeatability | 0.0003" | 0.0076 mm |
| Made In | Japan | Japan |

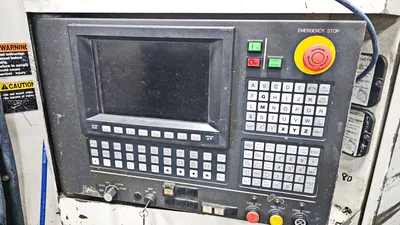

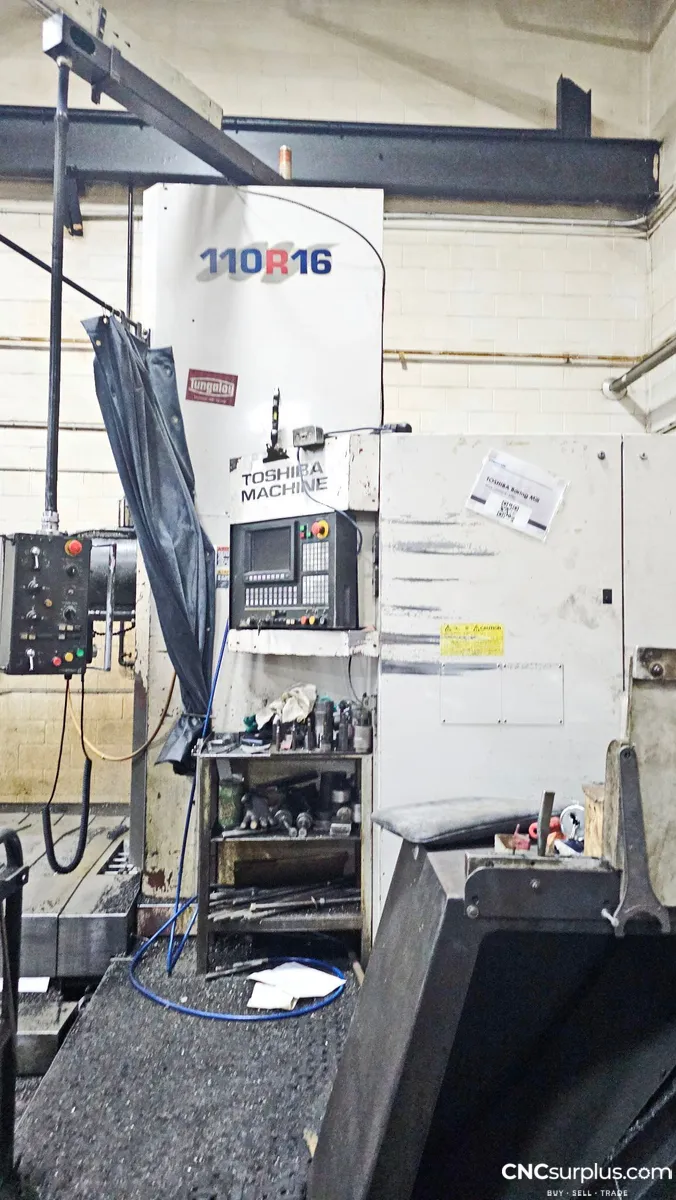

| Control | CNC (TOSNUC 888) | CNC (TOSNUC 888) |
| Dimensions | 236.22" X 200.79" X 153.54" | 236.22" X 200.79" X 153.54" |
| Weight | 121,000 lb | 121,000 lb |
*Drive needs replacement
**Good candidate for a rebuild
