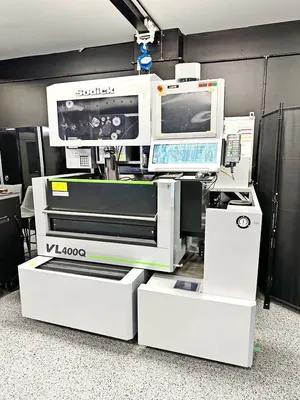

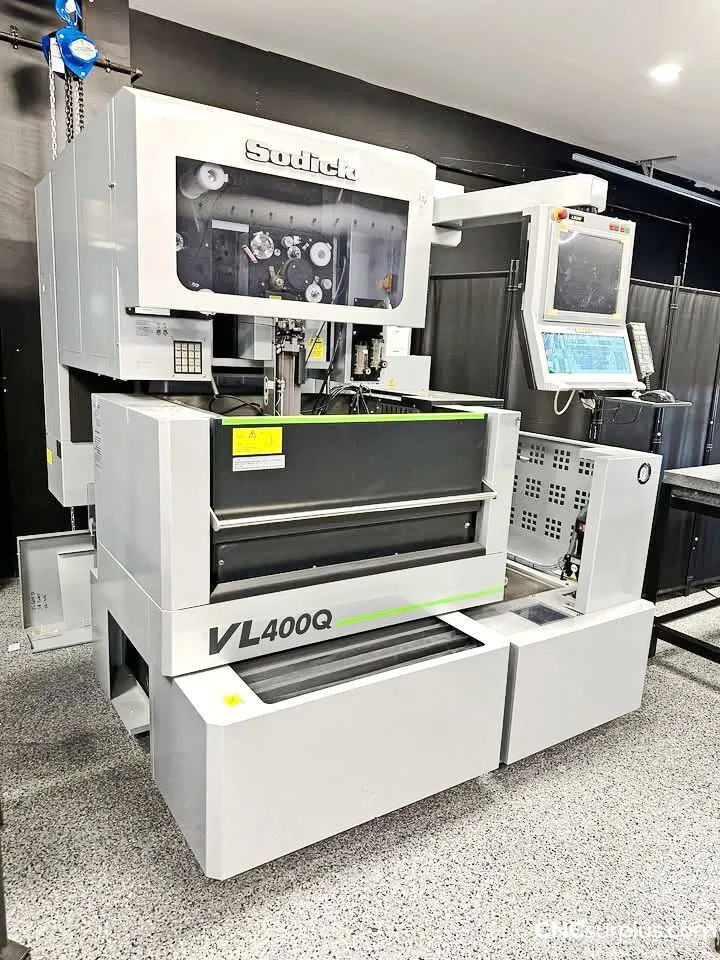

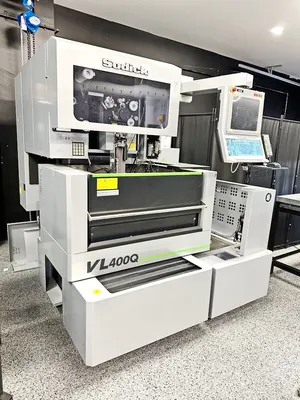

2021 SODICK VL400Q CNC WIRE EDM

2021 SODICK VL400Q CNC WIRE EDM

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Wire EDM
Manufacturer:
SODICK
Model:
VL 400Q
Year:
2021
Stock #:
13988
Status:
For Sale
Country:
Canada

Description

2021 Sodick VL400Q CNC Wire EDM, Submerged Cutting System, Automatic Wire Threading, Dual-Cartridge Dielectric Filtration, Thermal Stabilization Chiller, Wire Collection Unit, Stainless Tank Interior

Submerged cutting system

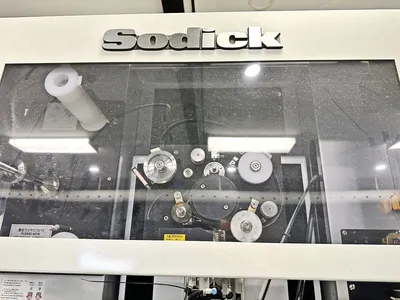

Automatic wire threading
Dual-cartridge dielectric filtration

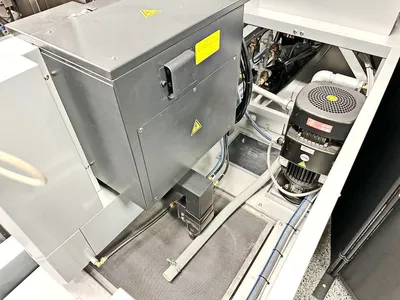

Thermal stabilization chiller
Jog pendant
Wire collection unit

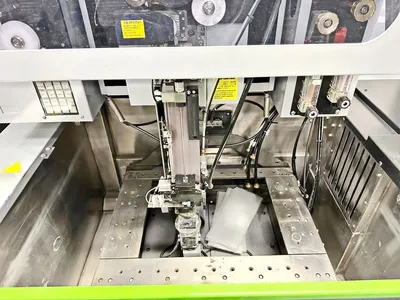

Stainless tank interior
Linear motor drive system
Wire alignment blocks
Guide removal tool
Set Tool for guide
Guide alignment tool
Adjustment tool for carbide contact

Power Pack32 A32 A
X-Axis Travel15.74"399.8 mm
Y-Axis Travel11.81"299.97 mm
Z-Axis Travel8.66"219.96 mm
U x V Axis Travel3.15" X 3.15"3.15" X 3.15"
Max Workpiece Size32.67" X 24" X 7.87"32.67" X 24" X 7.87"
Max Workpiece Weight771 lb349.7 kg
Work Tank Size33.85" X 27.16"33.85" X 27.16"
Wire Diameter0.00393" - 0.01181"0.00393" - 0.01181"
Max Wire Speed990 in/min.25.1 m/min.
Wire Tension0.7 - 5.2 lbf0.7 - 5.2 lbf
Distance Floor to Table35.43"899.92 mm
Dielectric Tank Size (Ext)86.61" X 70.87" X 29.72"86.61" X 70.87" X 29.72"
Dielectric Tank Capacity156 gal156 gal
Submerged (Yes/No)YesYes
Taper Angle±15° (4.72" Thickness)±15° (4.72" Thickness)
Auto Threading (Yes/No)YesYes
Made InJapanJapan
ControlCNC (Sodick LN2W)CNC (Sodick LN2W)
Dimensions90.94" X 79.52" X 78.34"90.94" X 79.52" X 78.34"
Weight5,952 lb5,952 lb
