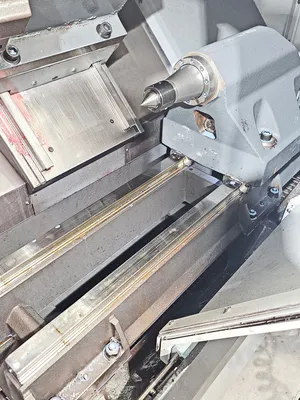

Programmable hydraulic tailstock

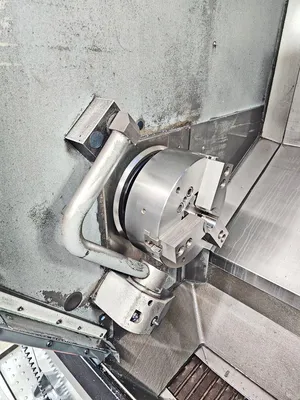

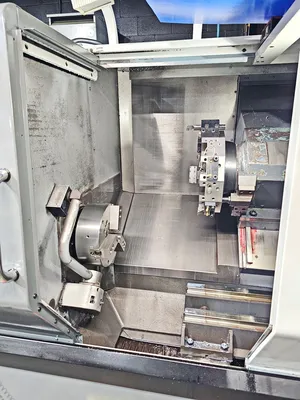

10" hydraulic chuck
Automatic tool presetter
Rigid tapping

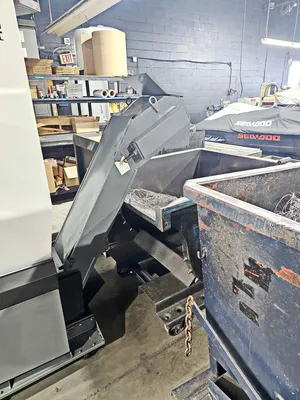

Chip conveyor
| Swing | 31.75" | 806.45 mm |
| Swing Over Cross Slide | 20.75" | 527.05 mm |
| Machining Length | 26" | 660.4 mm |
| Max Turning Dia | 21" | 533.4 mm |
| Center Distance | 30" | 762 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Spindle Bore | 3.5" | 8.9 cm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Spindle Nose | A2-6 | A2-6 |
| X-Axis Travel | 12.5" | 317.5 mm |
| Z-Axis Travel | 26" | 660.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 945 / 945 in/min. | 945 / 945 in/min. |

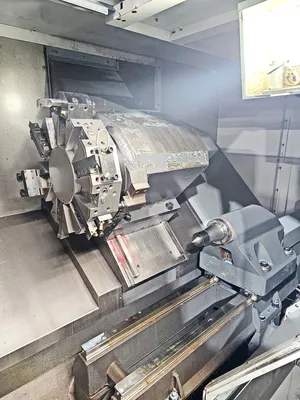

| Turret Capacity | 12 | 12 |
| Made In | United States | United States |

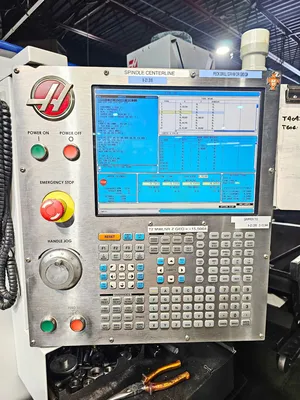

| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 171" X 90" X 98" | 171" X 90" X 98" |
| Weight | 13,200 lb | 13,200 lb |
