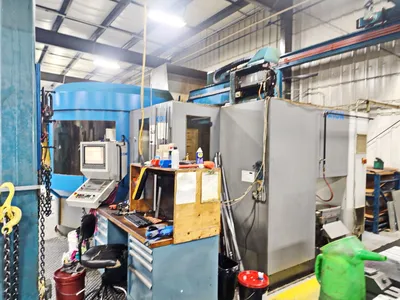

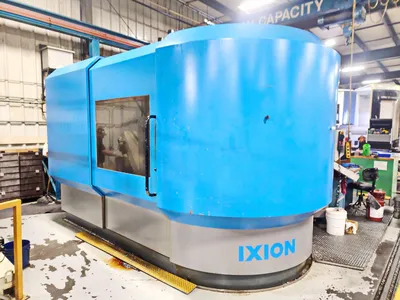

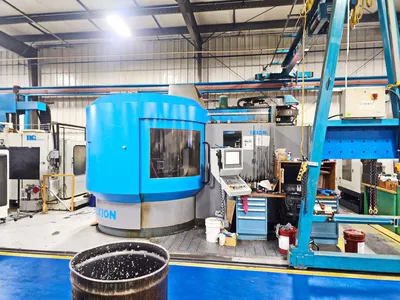

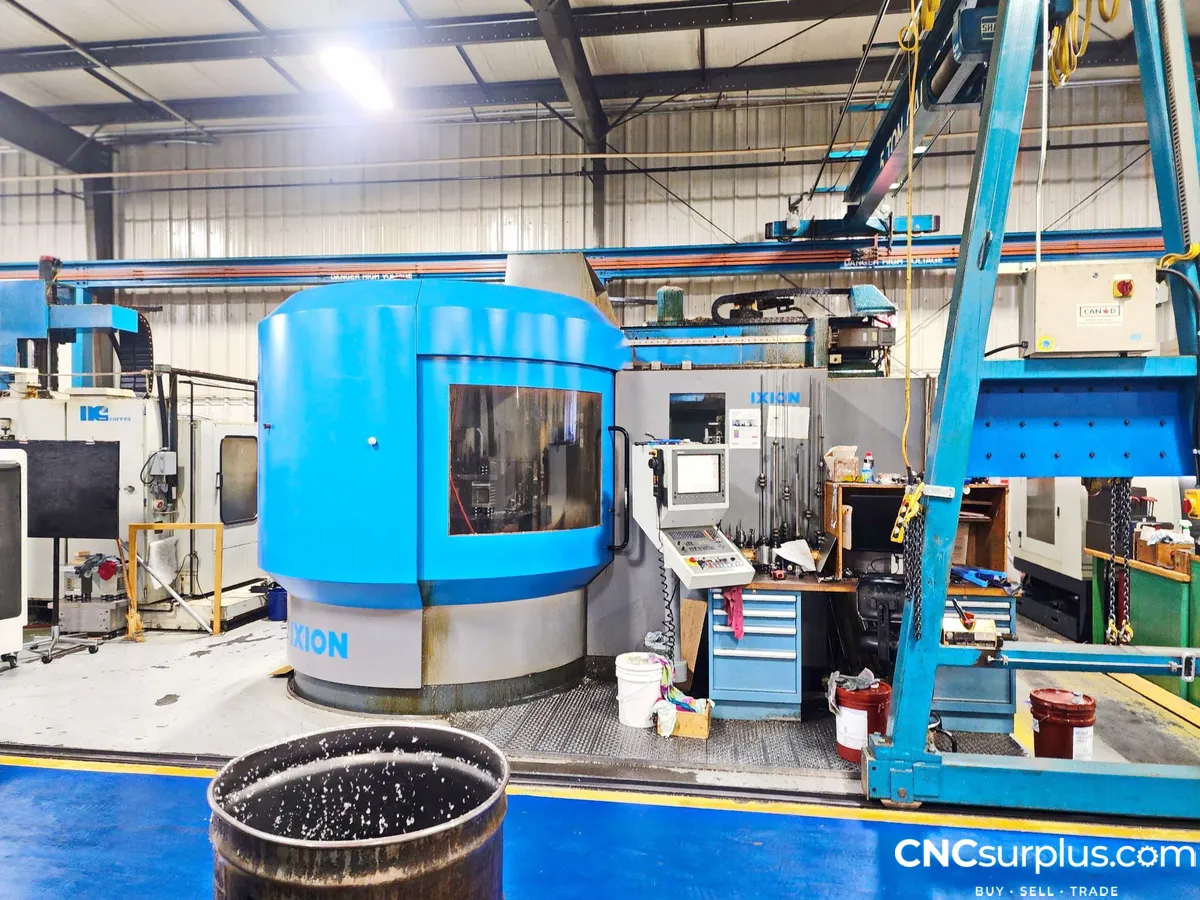

2004 IXION TL2 DEEP HOLE GUN DRILL
Have one to sell?
ConditionUsed
1 available
$75,000.00 USD
2004 Ixion TL2 Deep Hole Gun Drill, 5-Axis, NC Rotary Table, High-Pressure TSC, 16-Tool ATC, Chip Conveyor
5-axis
Through spindle coolant (dual-circuit)

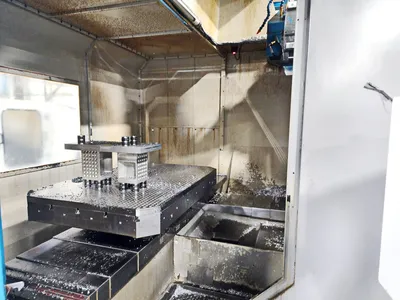

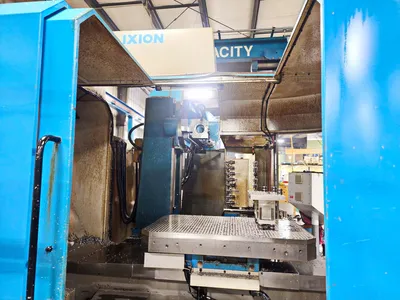

NC rotary table
16-tool atc
High-pressure coolant
Chip conveyor
Linear guideways & precision ball screws
Machined mostly aluminum its whole life.
The spindle was replaced recently and it comes with a spare spindle.
2004 Ixion TL2 Deep Hole Gun Drill, 5-Axis, NC Rotary Table, High-Pressure TSC, 16-Tool ATC, Chip Conveyor
5-axis
Through spindle coolant (dual-circuit)
NC rotary table
16-tool atc
High-pressure coolant
Chip conveyor
Linear guideways & precision ball screws
Imperial
| Max Drilling Depth | 67" |
| # Spindles | 1 spdl |
| RPM (Spindle) | 6,000 RPM |
| Table-W | 39" |
| Table-L | 59" |
| Max Table Load | 15,432 lb |
| X-Axis | 70.9" |
| Y-Axis | 31.5" |
| Z-Axis | 27.6" |
| W-Axis | 67" |
| B-Axis | 360° |
| Power (Spindle) | 15 hp |
| Made In | Germany |
| Control | CNC (Heidenhain iTNC 530) |
| Dimensions | 216.53" X 208.66" X 133.85" |
| Weight | 25,350 lb |
Machined mostly aluminum its whole life.
The spindle was replaced recently and it comes with a spare spindle.
