Simultaneous 5-axis w/ tool tip point control

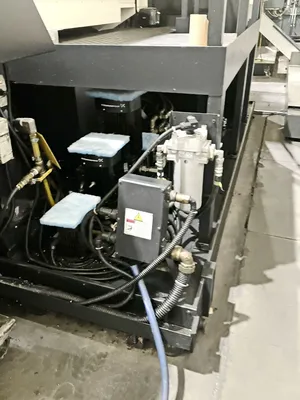

High-pressure through spindle coolant

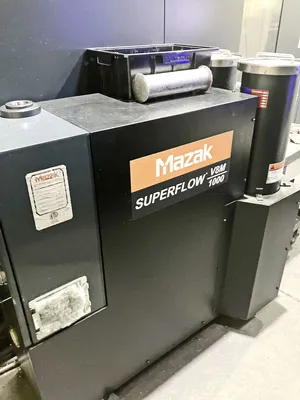

SuperFlow V8M (1,000 psi)
Dual-pallet changer
Renishaw NC4 laser
Renishaw OMP60 probe
Heidenhain linear scales (x,y,z)
Tool eye
Tool breakage detection
Adaptive feedrate
ConSep chip conveyor
All original manuals included
| X-Axis | 73.82" | 1,875 mm |
| Y-Axis | 41.73" | 1,059.9 mm |
| Z-Axis | 52.95" | 1,344.9 mm |
| B-Axis | -30° ~ +120° | -30° ~ +120° |
| C-Axis | 360° | 360° |
| Power | 50 hp | 37.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |

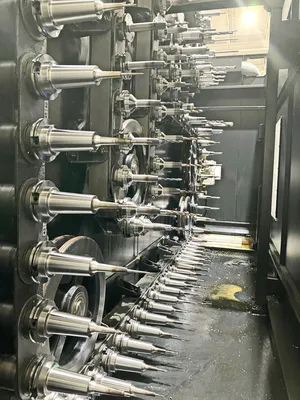

| # ATC | 120 | 120 |
| Taper | CAT-50 | CAT-50 |

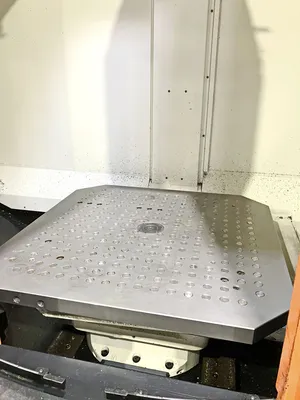

| Table-W | 39.4" | 1,000.8 mm |
| Table-L | 39.4" | 1,000.8 mm |
| # Axis | 5 | 5 |
| Max Table Load | 4,784 lb | 4,784 lb |
| Max Workpiece Height | 49.21" | 1,249.9 mm |
| Rapid Traverse (X/Y/Z) | 1,653 in/min. | 1,653 in/min. |
| Rapid Traverse (A/B/C) | 30 / 18 RPM | 30 / 18 RPM |

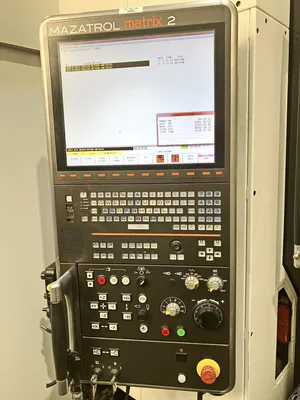

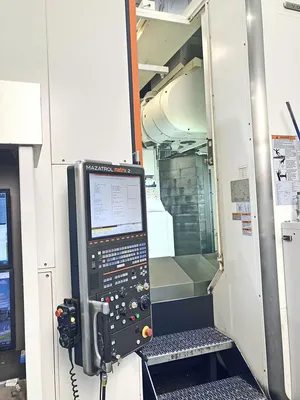

| Control | CNC (Mazatrol Matrix 2) | CNC (Mazatrol Matrix 2) |
| Dimensions | 324.48" X 209.44" X 173.22" | 324.48" X 209.44" X 173.22" |
| Weight | 85,800 lb | 85,800 lb |
