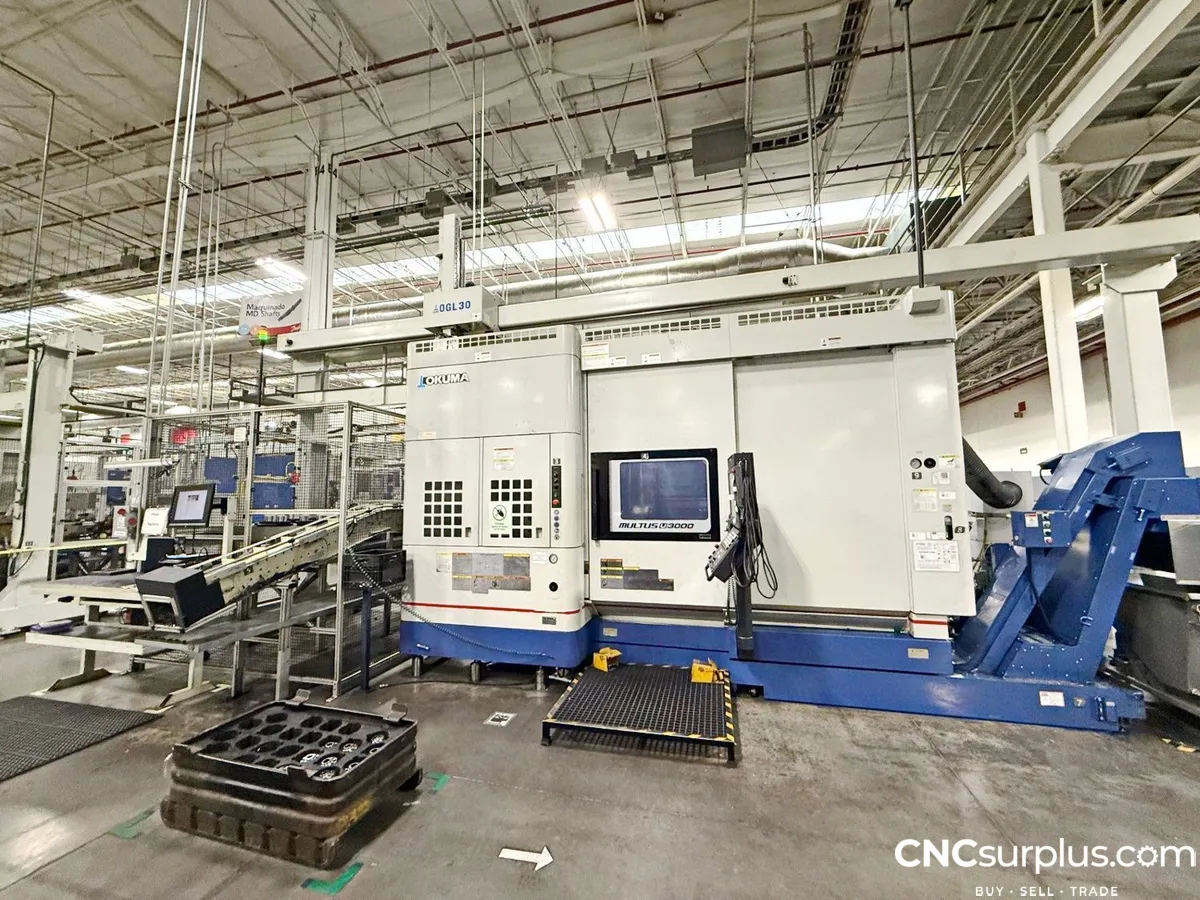

2016 OKUMA MULTUS U3000 MULTI-TASKING CNC MACHINING CENTER W/GANTRY

2016 OKUMA MULTUS U3000 MULTI-TASKING CNC MACHINING CENTER W/GANTRY

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Multitasking Machining Centers
Manufacturer:
OKUMA
Model:
MULTUS U3000
Year:
2016
Stock #:
13936
Status:
For Sale
Country:
Mexico

Description

2016 Okuma Multus U3000 Multi-Tasking CNC Machining Center, 5-Axis, Sub-Spindle, B-Axis Indexing, OGL 30 Gantry System, High-Pressure Coolant, Capto C6 Tooling System, Chip Conveyor

Full 5-axis
Sub-spindle
B-axis indexing

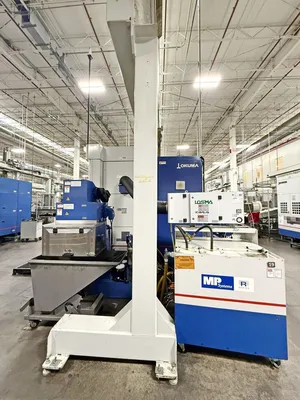

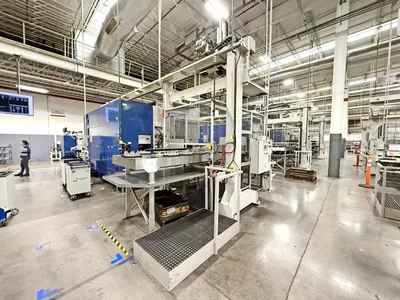

OGL 30 gantry system (66 lb payload)
High-pressure coolant
Capto C6 tooling system
Chip conveyor

Max Turning Dia (Upper)25.59"649.99 mm
Max Turning Dia (Lower)12.6"320.04 mm
Machining Length59.06"1,500.1 mm
X-Axis25.39"644.91 mm
X2-Axis9.25"234.95 mm
Y-Axis±4.92"±4.92"
Z-Axis62.99"1,599.9 mm
B-Axis−30° ~ +210°−30° ~ +210°
C-Axis360°360°
W-Axis62.36"1,583.9 mm
Power (Main)30 hp22.4 kW
Power (Sub)30 hp22.4 kW
Power (Milling Spindle)33 hp24.6 kW
RPM (Main)5,000 RPM5,000 RPM
RPM (Sub)5,000 RPM5,000 RPM
RPM (Milling Spindle)12,000 RPM12,000 RPM
# ATC8080
# Axis55
Taper Bore (Main)3.15"80.01 mm
Taper Bore (Sub)3.15"80.01 mm
Turret Capacity1212
Spindle Nose (Main)A2-6A2-6
Spindle Nose (Sub)A2-6A2-6
Rapid Traverse (X/Y/Z)1,968 / 1,574 / 1,968 in/min.1,968 / 1,574 / 1,968 in/min.

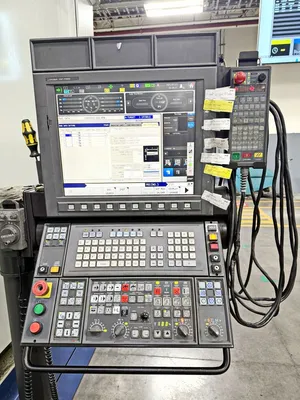

ControlCNC (OSP-P300S)CNC (OSP-P300S)
Dimensions213.58" X 121.34" X 119.29"213.58" X 121.34" X 119.29"
Weight38,500 lb38,500 lb
