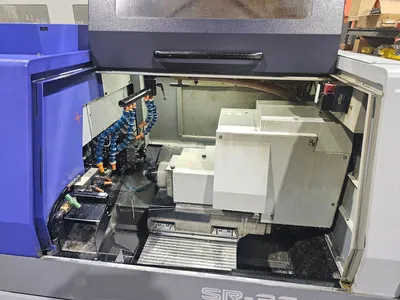

2017 STAR SR-32J TYPE N SWISS-TYPE AUTOMATIC CNC LATHE W/ LIVE TOOLING

2017 STAR SR-32J TYPE N SWISS-TYPE AUTOMATIC CNC LATHE W/ LIVE TOOLING

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
STAR
Model:
SR-32J TYPE N
Year:
2017
Stock #:
13907
Status:
For Sale

Description

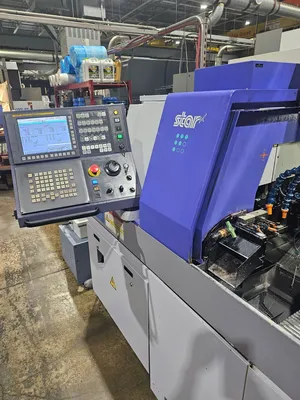

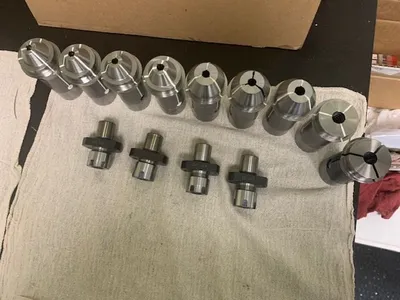

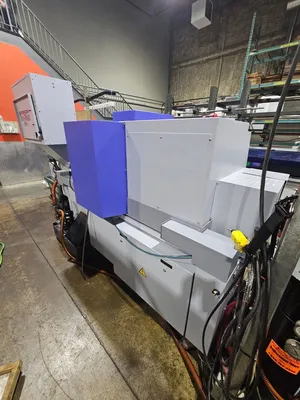

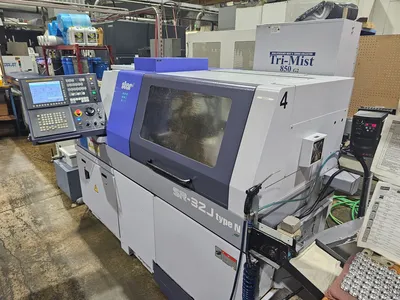

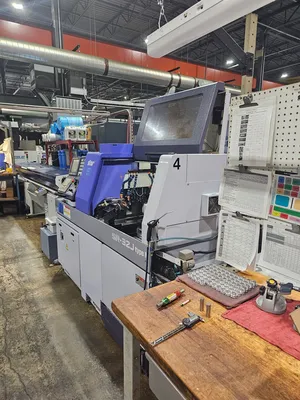

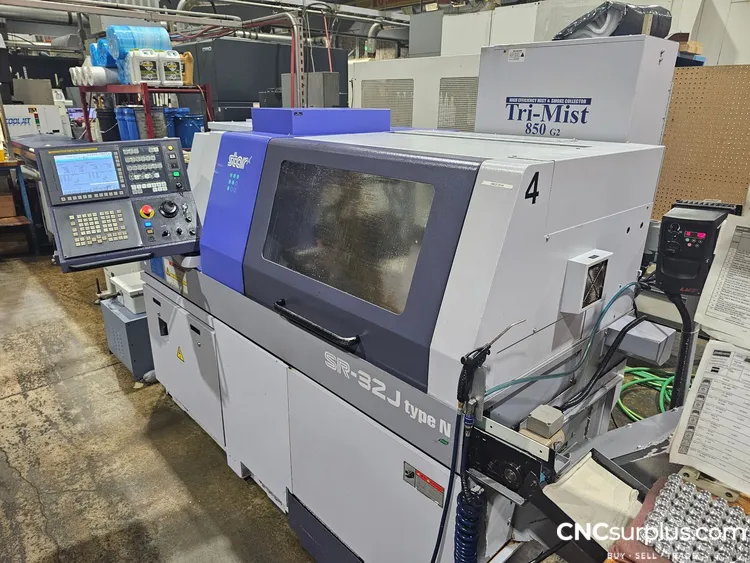

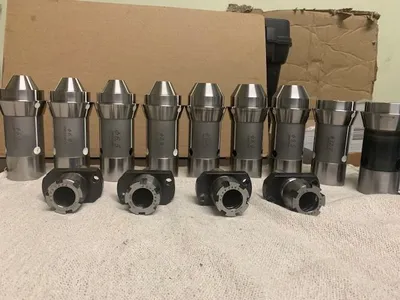

2017 Star SR-32J Type N Swiss-Type Automatic CNC Lathe, Live Tooling, Y-Axis, C-Axis, TF32 Collet Chucks, Bar Feeder, Workpiece Unload Conveyor, High-Pressure Coolant, Chip Conveyor

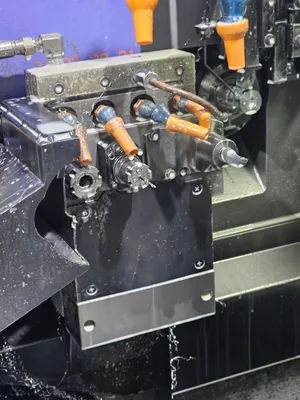

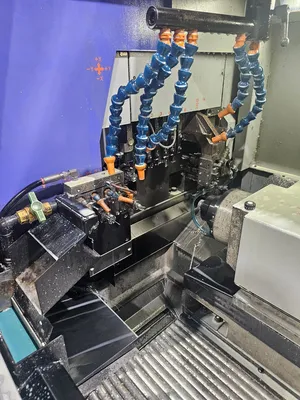

Live tooling
Y-axis
C-axis

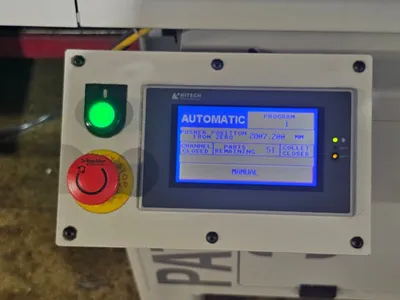

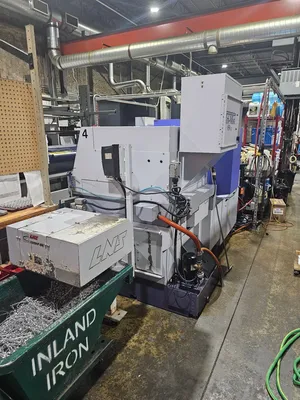

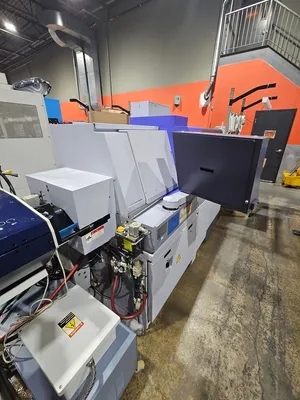

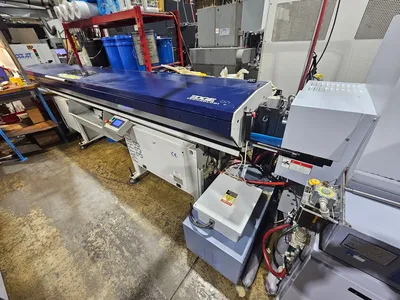

Edge Patriot 338 bar feeder

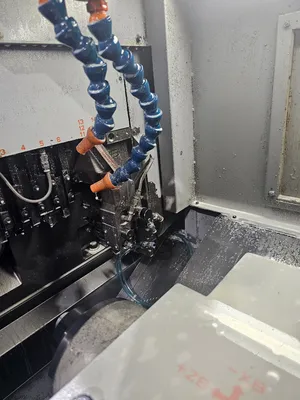

High-pressure coolant w/ bag filtration (1000 psi)

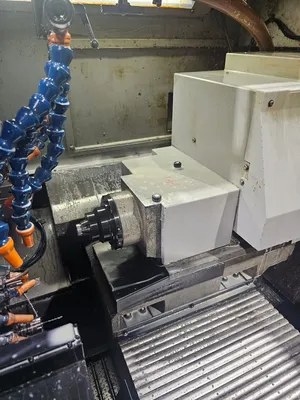

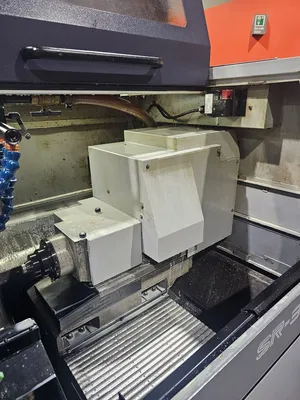

Sub-spindle air/coolant flushing
Part ejector
Chip conveyor

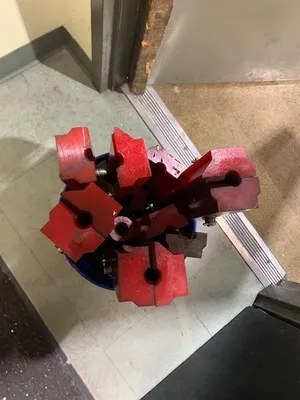

Assorted tooling

Draw Tube1.259"31.979 mm
Max Turning Diameter1.25"31.75 mm
Power (Main)10 hp7.5 kW
Power (Sub)5 hp3.7 kW
# Axis99
RPM (Main)7,000 RPM7,000 RPM
RPM (Sub)7,000 RPM7,000 RPM
RPM (Driven FR)5,000 RPM5,000 RPM
RPM (Driven BK)6,000 RPM6,000 RPM
Live Tool Stations88
X-Axis Travel7"177.8 mm
Z-Axis Travel3.14"79.756 mm
Y-Axis Travel12.59"319.79 mm
XB-Axis Travel11.37"288.8 mm
ZB-Axis Travel10.62"269.75 mm
C-Axis0.001°0.001°

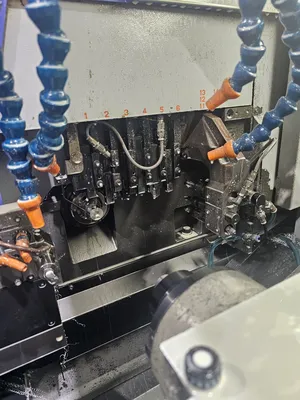

Front Tool Post6 Turn / 4 Drill/ 4 Live6 Turn / 4 Drill/ 4 Live
Rear Tool Post4 Univ Live4 Univ Live
Rapid Traverse (X1/Z1/X2/Z2)944 in/min.944 in/min.
Made InJapanJapan
ControlCNCCNC
Dimensions106.29" X 51.18" X 74.8"106.29" X 51.18" X 74.8"
Weight6,834 lb6,834 lb
