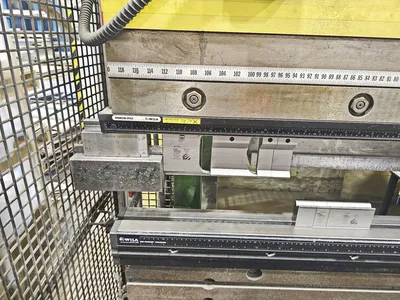

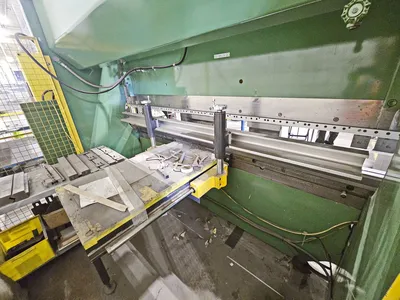

Backgauge

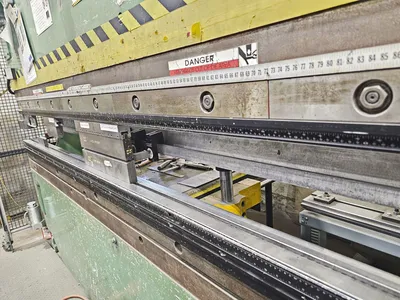

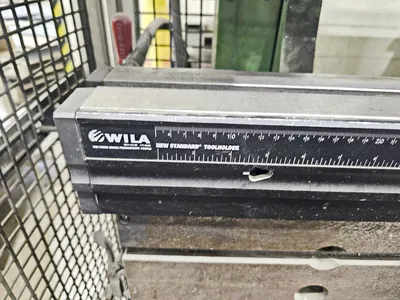

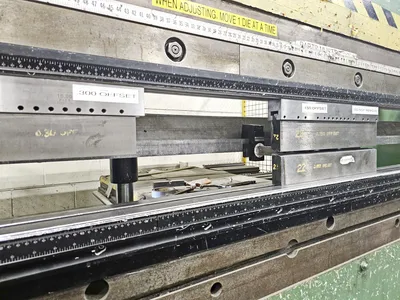

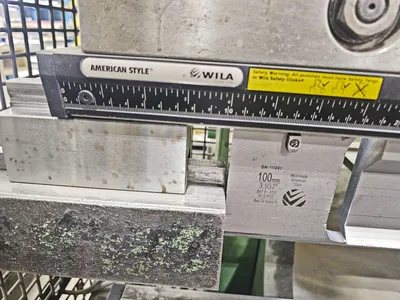

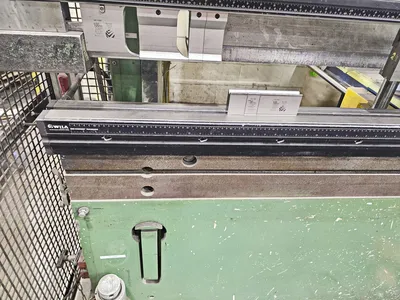

WILA American style tooling
Hydraulic clamping

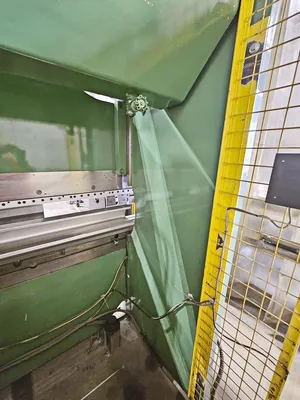

Light curtains
Dual-palm buttons
Electric foot switch
| Tonnage | 90 T | 81.647 t |
| Type | HYD | HYD |
| OA Length | 120" | 3 m |
| Between Housings | 102.5" | 2,603.5 mm |
| Throat Depth | 7" | 177.8 mm |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Motor Power | 15 hp | 11.2 kW |
| Open Height | 15" | 381 mm |
| Close Height | 7" | 177.8 mm |
| Bed Height | 34" | 863.6 mm |
| Bed Width | 3.5" | 88.9 mm |
| Fast Approach | 260 in/min. | 6.6 m/min. |
| Bending Speeds | 10 / 20 / 80 in/min. | 10 / 20 / 80 in/min. |
| Fast Return | 280 in/min. | 7.1 m/min. |
| Made In | United States | United States |

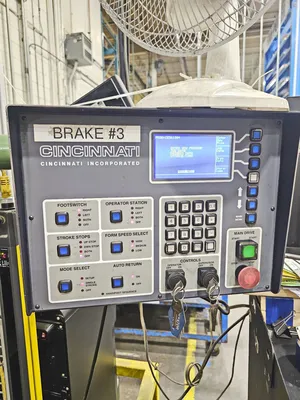

| Control | CNC (Cincinnati) | CNC (Cincinnati) |
| Dimensions | 126.5” X 50” X 110” | 126.5” X 50” X 110” |
| Weight | 15,800 lb | 15,800 lb |
