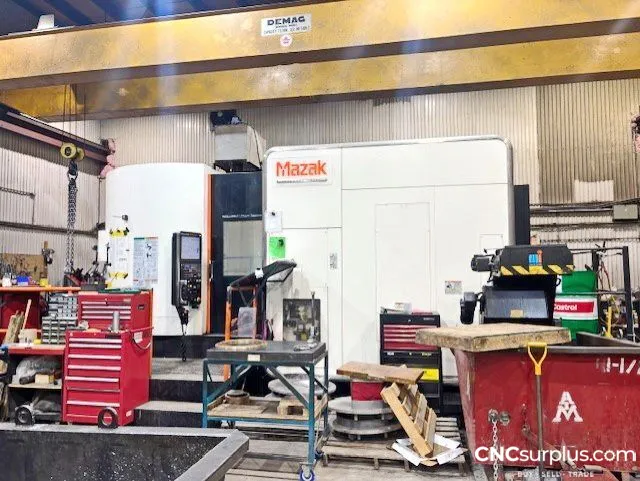

2013 MAZAK INTEGREX I-630 VR 5-AXIS MULTI-TASKING CNC MACHINE

2013 MAZAK INTEGREX I-630 VR 5-AXIS MULTI-TASKING CNC MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Multitasking Machining Centers
Manufacturer:
MAZAK
Model:
INTEGREX I-630 VR
Year:
2013
Stock #:
13897
Status:
For Sale
Country:
Canada

Description

2013 Mazak Integrex I-630 VR 5-Axis Multi-Tasking CNC Machine, TSC, Dual-Pallet Changer, Superflow T8 High-Pressure Coolant, 120 ATC, Chip Conveyor, Work Measuring Systems, Automatic Tool Eye

Full 5-axis
Mazak Superflow T8 high-pressure coolant (1000 psi)
High-torque milling spindle (5000 rpm)
Dual-pallet changer
Ø31.5" pallet (faceplate w/ jaws)
Ø31.5" pallet (tapped w/ location bore)
31.5" 3-jaw scroll chuck
Work measuring systems (RMP600)
Big-plus tool provision detector
Mayfran ConSep 2000 chip conveyor
Automatic tool eye
Work setting error compensation

X-Axis56.1"1,424.9 mm
Y-Axis41.34"1,050 mm
Z-Axis41.34"1,050 mm
B-Axis-30° ~ +120°-30° ~ +120°
C-Axis360°360°
Power (Milling Spindle)50 hp37.3 kW
RPM (Milling Spindle)5,000 RPM5,000 RPM
# ATC120120
TaperCAT-50CAT-50
Pallet-W31.5"800.1 mm
Pallet-L31.5"800.1 mm
# Axis55
Rapid Traverse (X/Z)2,047 in/min.52 m/min.
Rapid Traverse (Y)2,047 in/min.52 m/min.
ControlCNC (Mazatrol Matrix 2)CNC (Mazatrol Matrix 2)
Dimensions303.25" X 199.72" X 147.76"303.25" X 199.72" X 147.76"
Weight71,980 lb71,980 lb
