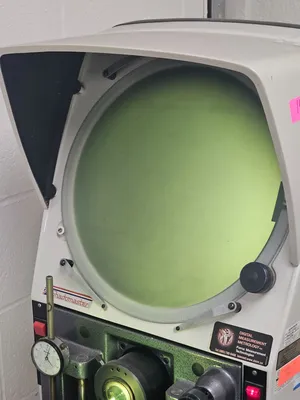

Projector Type R14
Magnification 10x 20x 25x 50x 100x
Field of view 35 18 14 7 4
Working Distance 81 38 28 15 31
Maximum half field 103 103 80 45 96
Working Diameter full field 120 109 56 31 77
Features
• 340mm (14″) screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: 10x, 20x, 25x, 50x and 100x
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 175mm (7″) x 100mm (4″)
• Digital angle measurement to 1 minute
• 10x lens included
• 0.5 micron resolution
This equipment has been sold. Similar equipment available now is shown below.
