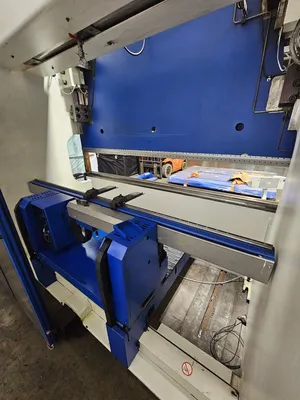

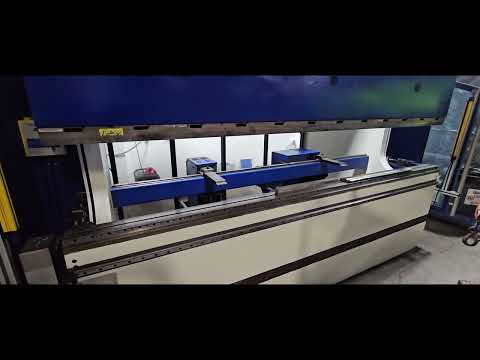

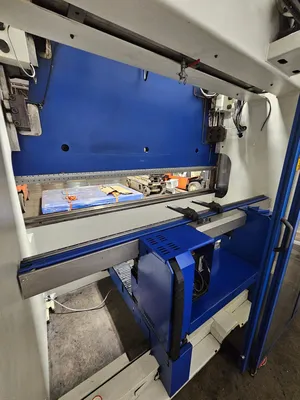

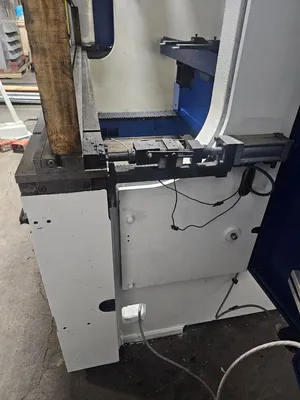

4-axis CNC backgauge
CNC crowning

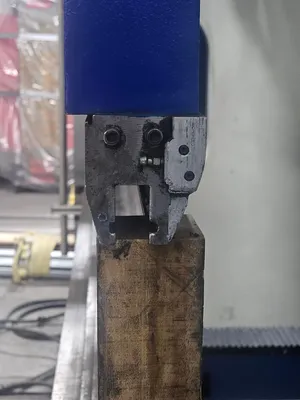

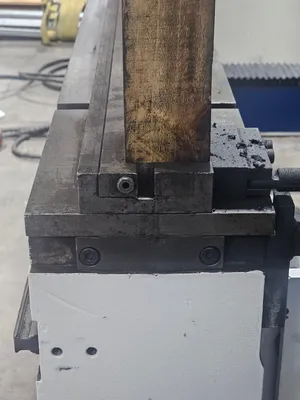

Hydraulic tool clamping (upper & lower)
Pneumatic I-axis (die shift)

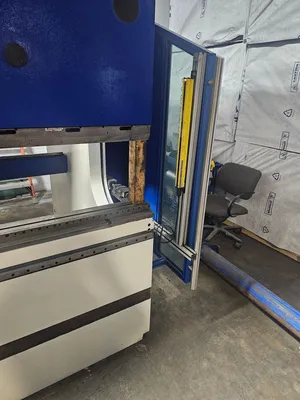

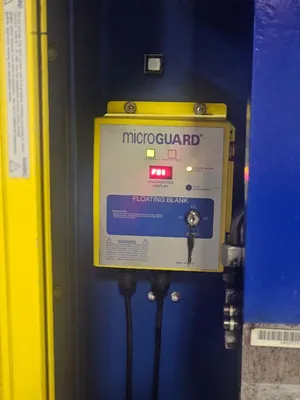

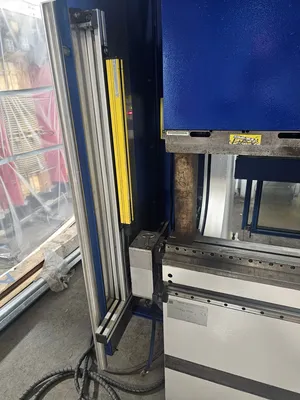

Light curtains

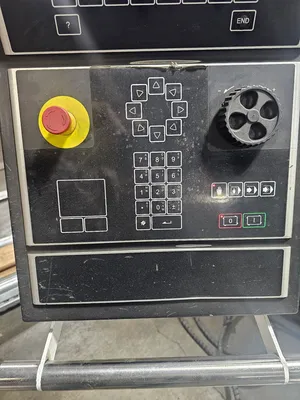

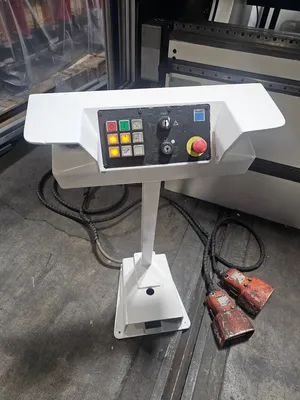

Pedestal control

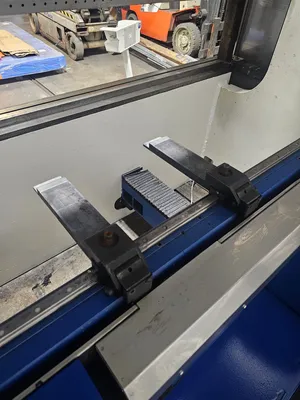

Front supports
| Tonnage | 230 T | 208.653 t |
| Type | HYD | HYD |
| OA Length | 120" | 3 m |
| Between Frames | 106" | 2,692.4 mm |
| Throat Depth | 16" | 406.4 mm |
| Stroke | 14" | 355.6 mm |
| # Axis | 6 | 6 |
| Motor Power | 30 hp | 22.4 kW |
| Open Height | 21" | 533.4 mm |
| Bed Width | 8" | 203.2 mm |
| Fast Approach | 472 in/min. | 12 m/min. |
| Slow Bend | 24 in/min. | 0.6 m/min. |
| Fast Return | 320 in/min. | 8.1 m/min. |

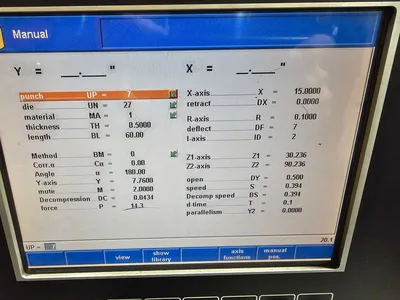

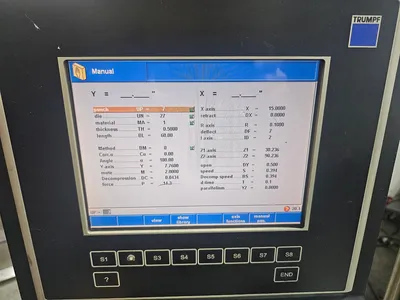

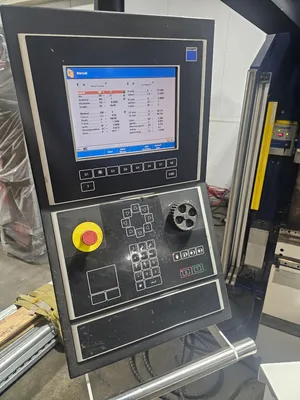

| Control | CNC (Delem DA69) | CNC (Delem DA69) |
| Dimensions | 144" 91" X 122" | 144" 91" X 122" |
| Weight | 39,600 lb | 39,600 lb |
This equipment has been sold. Similar equipment available now is shown below.
