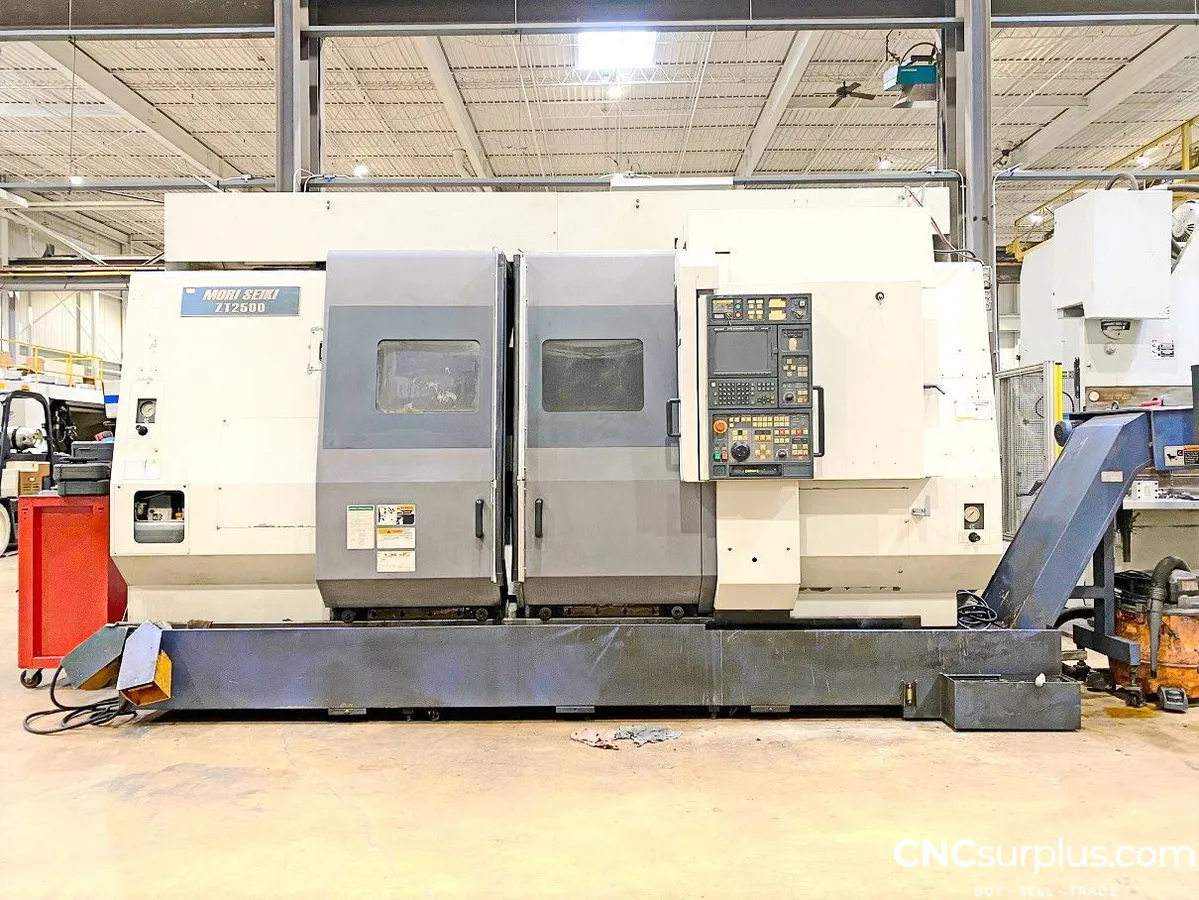

2001 MORI SEIKI ZT-2500Y MULTI-AXIS CNC LATHE

2001 MORI SEIKI ZT-2500Y MULTI-AXIS CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
MORI SEIKI
Model:
ZT-2500Y
Year:
2001
Stock #:
13817
Status:
For Sale
Country:
United States

Description

2001 Mori Seiki ZT-2500Y Multi-Axis CNC Lathe, Twin Spindle, Twin Turret, Live Tooling, Y-Axis, Tool Presetter, Chip Conveyor, Additional Tool Holders

Twin spindles
Twin turrets
Live tooling (12 stations, both turrets)
Y-axis
C-axis
Tool presetter
Chip conveyor
(2) electric foot pedals
Additional tool holders (live/static)

Max Swing26"660.4 mm
Turning Dia14.9"378.46 mm
Machining Length13.7"347.98 mm
Distance Between Spindle Faces51.2"1,300.5 mm
# Axis88
Bar Capacity2.87"72.898 mm
Through Spindle Hole3.5"88.9 mm
Power30 hp22.4 kW
Max RPM (Main)4,000 RPM4,000 RPM
Max RPM (Sub)4,000 RPM4,000 RPM
Max RPM (Live Tooling)4,000 RPM4,000 RPM
X1/X2/X3-Axis Travel11" / 7.9"11" / 7.9"
Y-Axis Travel±2.9"±2.9"
C-Axis Rotation0.001°0.001°
Z1/Z2/Z3-Axis Travel37.8" / 38.8"37.8" / 38.8"
Spindle Nose (Main)A2-8A2-8
Spindle Nose (Sub)A2-8A2-8
TailstockNoNo
Live ToolingYesYes
Sub SpindleYesYes
Rapid Traverse (X/Z)945 in/min.945 in/min.
Rapid Traverse (Y)472 in/min.12 m/min.
Turret Capacity12 X 212 X 2
ControlCNC (Mitsubishi MSC-501)CNC (Mitsubishi MSC-501)
Dimensions165.47" X 108.89" X 103.07"165.47" X 108.89" X 103.07"
Weight29,000 lb29,000 lb
