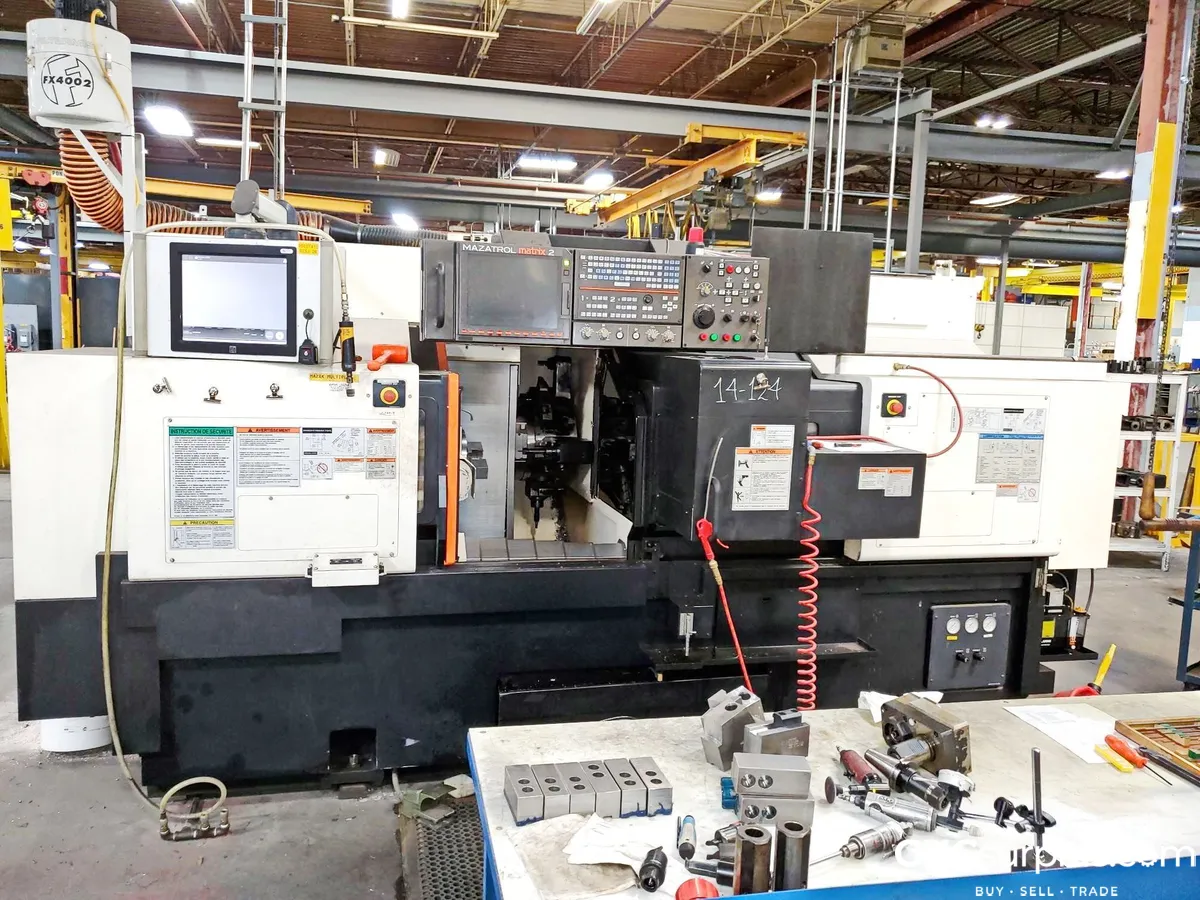

2012 MAZAK MULTIPLEX 6300-II Y MULTI-AXIS CNC LATHE
Have one to sell?
ConditionUsed
1 available
2012 Mazak Multiplex 6300-II Y Multi-Axis CNC Lathe, Twin-Spindles, Dual Turrets, Y-Axis, Live Tooling, High-Pressure Coolant, 10" Power Chucks, Work Unloader W/ Conveyor, Mist Collector
High-pressure coolant system (213 psi)
Twin spindles (4000 rpm)
Dual-turrets (12 tools)
4000 rpm rotary tools (both turrets)
Work unloader w/ exit conveyor
Y-axis (both turrets)
C-axis (both spindles)
10” Kitagawa 3-jaw power chuck
10" Kitagawa 2-jaw long stroke power chuck
Auto-pecking cycle w/ load protection
Automatic front door
Overload detector (L&R)
Chuck Air blast (L&R)
Mist collector
Oil skimmer
Chip conveyor
2012 Mazak Multiplex 6300-II Y Multi-Axis CNC Lathe, Twin-Spindles, Dual Turrets, Y-Axis, Live Tooling, High-Pressure Coolant, 10" Power Chucks, Work Unloader W/ Conveyor, Mist Collector
High-pressure coolant system (213 psi)
Twin spindles (4000 rpm)
Dual-turrets (12 tools)
4000 rpm rotary tools (both turrets)
Work unloader w/ exit conveyor
Y-axis (both turrets)
C-axis (both spindles)
10” Kitagawa 3-jaw power chuck
10" Kitagawa 2-jaw long stroke power chuck
Auto-pecking cycle w/ load protection
Automatic front door
Overload detector (L&R)
Chuck Air blast (L&R)
Mist collector
Oil skimmer
Chip conveyor
Imperial
| Max Swing | 16.93" |
| Turning Dia | 13" |
| Machining Length (Shaft work) | 25.59" |
| Machining Length (Chuck work) | 8.86" |
| # Axis | 8 |
| Chuck Size (Main) | 10" |
| Chuck Size (Sub) | 10" |
| Bar Capacity | 3.03" |
| Spindle Bore | 3.46" |
| Power (Main) | 30 hp |
| Power (Sub) | 30 hp |
| Power (Milling Tool) | 10 hp |
| Max RPM (Main) | 4,000 RPM |
| Max RPM (Sub) | 4,000 RPM |
| Max RPM (Milling Tool) | 4,000 RPM |
| X1/X2-Axis Travel | 12.2" |
| Y-Axis Travel | ±3.03" |
| Z1/Z2-Axis Travel | 23.82" |
| Spindle Nose | A2-8 |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Rapid Traverse (X/Z) | 945 in/min. |
| Rapid Traverse (Y) | 393 in/min. |
| Turret Capacity | 2 X 12 |
| Made In | Japan |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 167.7″ X 95.3″ X 85.44″ |
| Weight | 26,400 lb |
