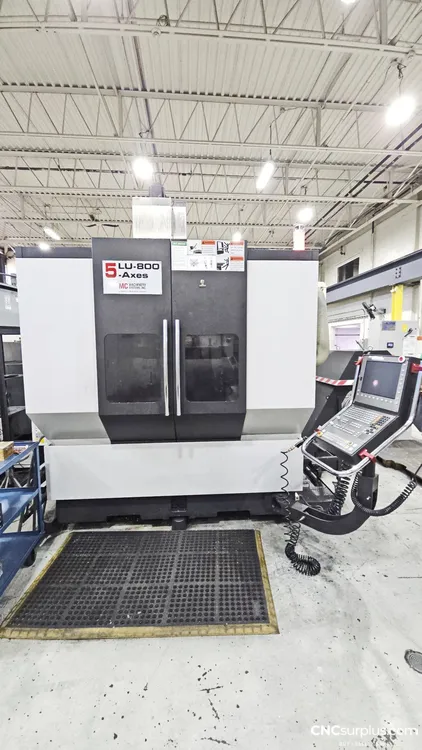

2015 LITZ HITECH LU-800 VERTICAL 5-AXIS MACHINING CENTER

2015 LITZ HITECH LU-800 VERTICAL 5-AXIS MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
LITZ HITECH
Model:
LU-800
Year:
2015
Stock #:
13756
Status:
For Sale

Description

2015 Litz Hitech LU-800 Vertical 5-Axis Machining Center, TSC, ChipBLASTER Coolant system, 12000 RPM Direct-Drive Spindle, Mist Collector, Chip Conveyor, Linear Scales, Anti-Collision Software

Full 5-axis
Through spindle coolant
ChipBLASTER coolant system
Spindle chiller
Mist collector
Linear scales
Anti-collision software
Air conditioned cabinet
Chip conveyor

X-Axis31.49"799.85 mm
Y-Axis35.43"899.92 mm
Z-Axis24.4"619.76 mm
A-Axis±120°±120°
C-Axis±360°±360°
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC3030
TaperBT-40BT-40
Table Diameter31.49"799.85 mm
Distance Spindle Nose To Table Top28.34"719.84 mm
# Axis55
Max Table Load2,204 lb2,204 lb
Rapid Traverse (X/Y/Z)1,889 in/min.1,889 in/min.
Made InTaiwanTaiwan
ControlCNC (Heidenhain TNC 640)CNC (Heidenhain TNC 640)
Dimensions143.5" X 88.38" X 141.9"143.5" X 88.38" X 141.9"
Weight45,635 lb45,635 lb
