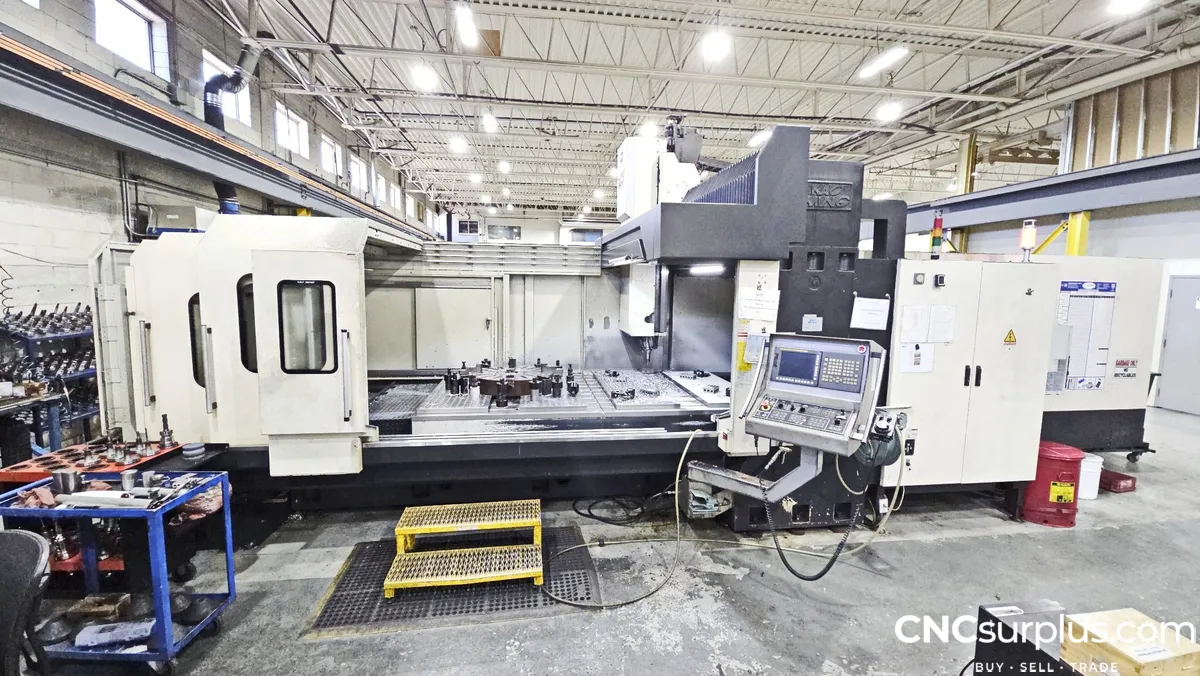

2015 KAO MING KMC-3000SV CNC GANTRY MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
KAO MING
Model:
KMC-3000SV
Year:
2015
Stock #:
13754
Status:
For Sale

Description

2015 Kao Ming KMC-3000SV CNC Gantry Machining Center, TSC, Chiller Unit, Chip Conveyor, Air Blast, Inner-Cooled Ball Screws, Air Conditioned Cabinet, Additional Tooling

Through spindle coolant
Chiller unit
Chip conveyor
Inner-cooled balls crews
Air blast
Automatic lubrication system
Auto power off
Air conditioner cabinet
Additional tooling

X-Axis127.16"3,229.9 mm
Y-Axis55.11"1,399.8 mm
Z-Axis33.46"849.88 mm
Power25 hp18.6 kW
RPM3,200 RPM3,200 RPM
TaperCAT-50CAT-50
Table-W49.21"1,249.9 mm
Table-L118.11"3,000 mm
Distance Spindle To Table41.34"1,050 mm
Max Table Load19,800 lb8,981.1 kg
Rapid Traverse (X/Y/Z)590 / 590 / 472 in/min.590 / 590 / 472 in/min.
Made InTaiwanTaiwan
ControlCNC (Fanuc 31i-Model B)CNC (Fanuc 31i-Model B)
Dimensions320.1" X 77.5" X 169.3"320.1" X 77.5" X 169.3"
Weight40,785 lb40,785 lb
