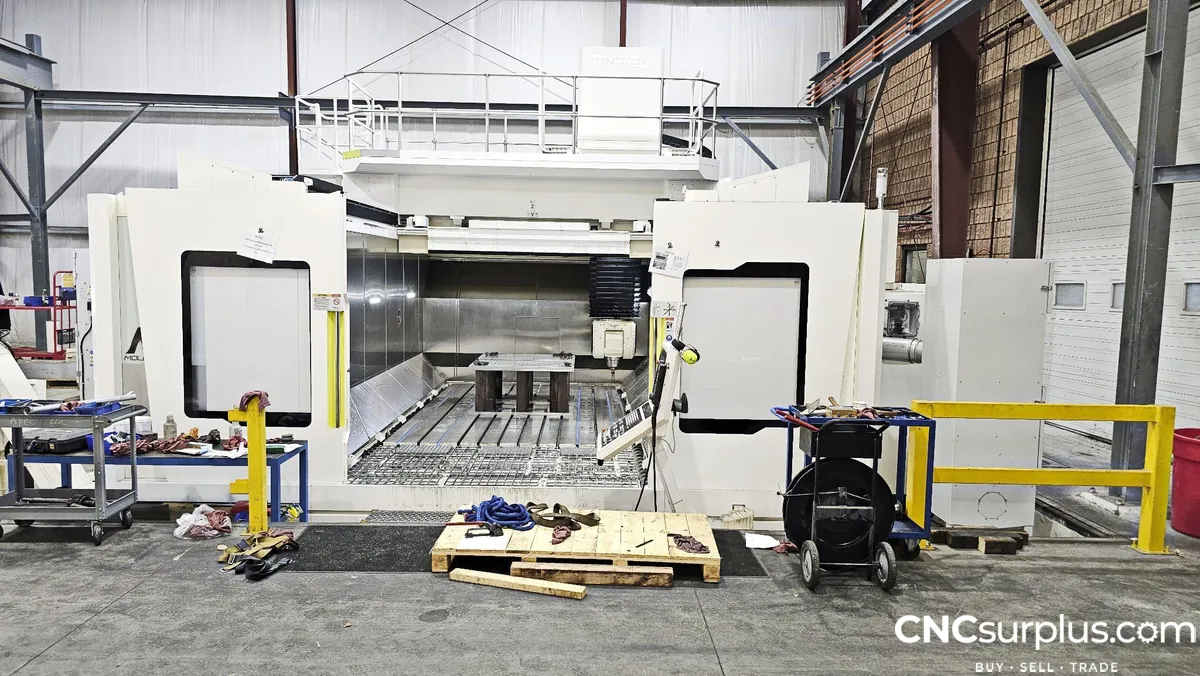

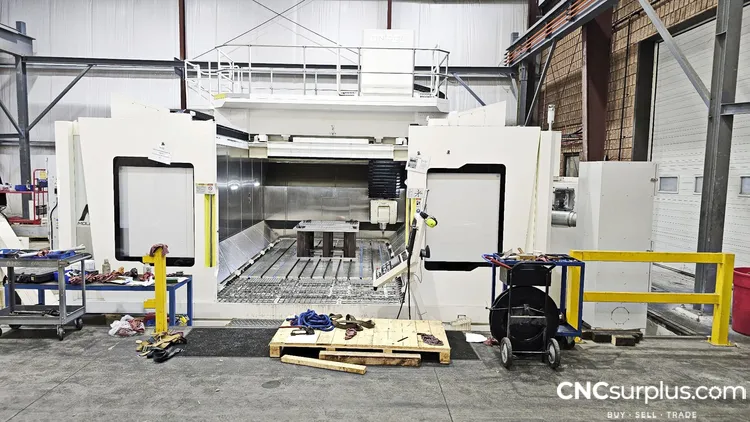

2022 APEC GM2540-5L 5-AXIS CNC GANTRY MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
APEC
Model:
GM2540-5L
Condition:
Excellent
Year:
2022
Stock #:
13752
Status:
For Sale

Description

2022 Apec GM2540-5L 5-Axis CNC Gantry Machining Center, TSC, 12000 RPM Spindle, Mist Collector, Spindle Chiller, Linear Motors, Chip Conveyor, Additional Tooling

Through spindle coolant
12000 rpm spindle
Mist collector
Spindle chiller
Linear motors
Chip conveyor
Additional tooling

X-Axis157.48"4,000 mm
Y-Axis98.43"2,500.1 mm
Z-Axis39.37"1,000 mm
B-Axis±120°±120°
C-Axis±360°±360°
Power56 hp41.8 kW
RPM12,000 RPM12,000 RPM
# ATC6060
TaperHSK-63AHSK-63A
Table-W98.43"2,500.1 mm
Table-L157.48"4,000 mm
Max Table Load17,384 lb7,885.3 kg
Rapid Traverse (X/Y/Z)2,362 in/min.2,362 in/min.
Made InTaiwanTaiwan
ControlCNC (Heidenhain TNC 640)CNC (Heidenhain TNC 640)
Dimensions360" X 312" X 240"360" X 312" X 240"
Weight168,000 lb168,000 lb
