2002 HURON KX 30 VERTICAL CNC MACHINING CENTER

2002 HURON KX 30 VERTICAL CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
1 available
$45,000.00 USD
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURON
Model:
KX 30
Condition:
New - In-Stock
Year:
2002
Stock #:
13713
Status:
For Sale
Country:
Canada

Description

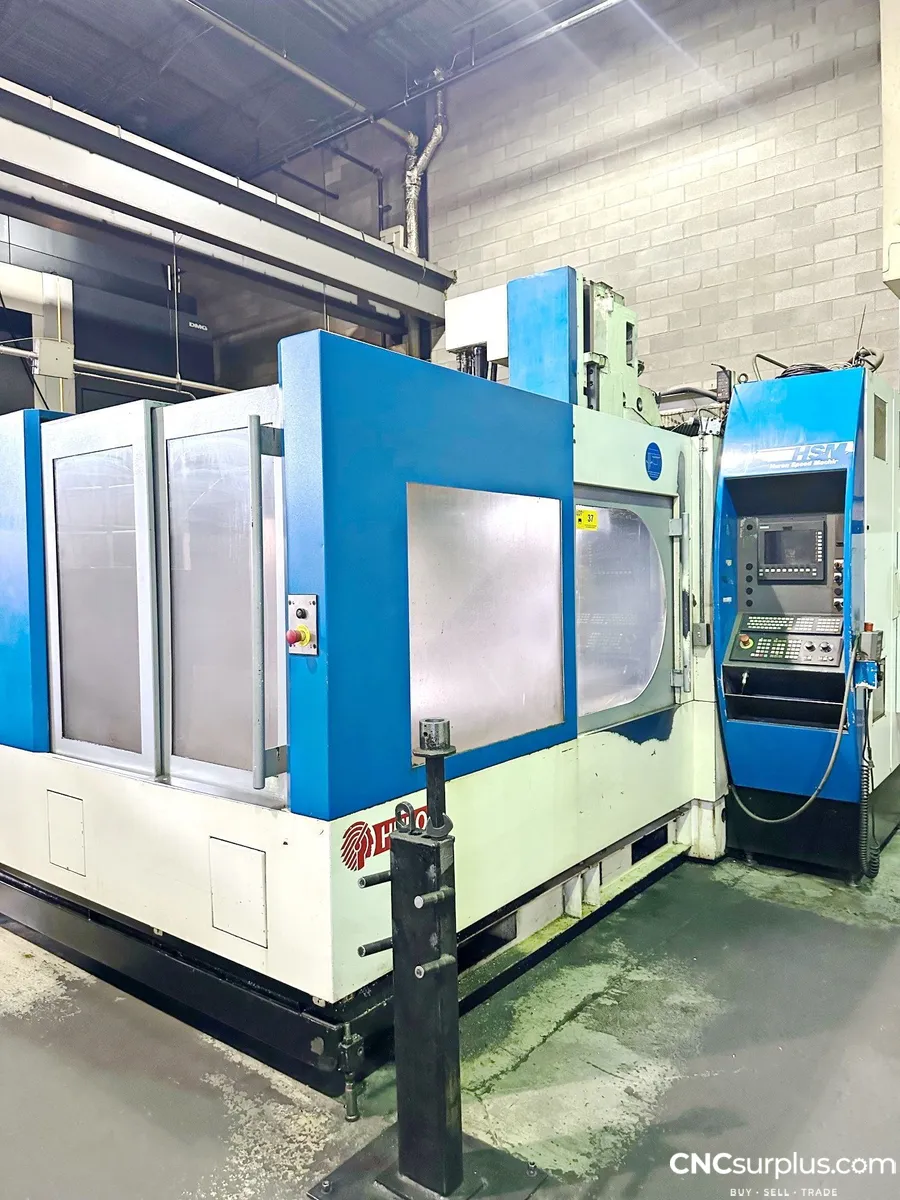

2002 Huron KX 30 Vertical CNC Machining Center, TSC W/ Micro-Filtration System, Siemens Touch Probe, Blum Laser Tool Checker, Spindle Chiller, Chip Conveyor

High-pressure through spindle coolant
Domange micro-filtration system
Siemens TSR touch probe
Blum laser tool checker
Spindle chiller
Chip conveyor

X-Axis70.86"1,799.8 mm
Y-Axis39.37"1,000 mm
Z-Axis21.65"549.91 mm
Power20 hp14.9 kW
RPM18,000 RPM18,000 RPM
# ATC3030
TaperHSK 63AHSK 63A
Table-W39.37"1,000 mm
Table-L78.74"2,000 mm
# Axis33
Max Table Load5,511 lb2,499.8 kg
Distance Spindle Nose to Table33"838.2 mm
Rapids (X/Y/Z)1,181 / 1,181 / 708 in/min.1,181 / 1,181 / 708 in/min.
Made InFranceFrance
ControlCNC (Siemens Sinumerik 840 D)CNC (Siemens Sinumerik 840 D)
Dimensions200.78" X 248.42" X 124.4"200.78" X 248.42" X 124.4"
Weight37,478 lb37,478 lb

Recently rebuilt spindle
