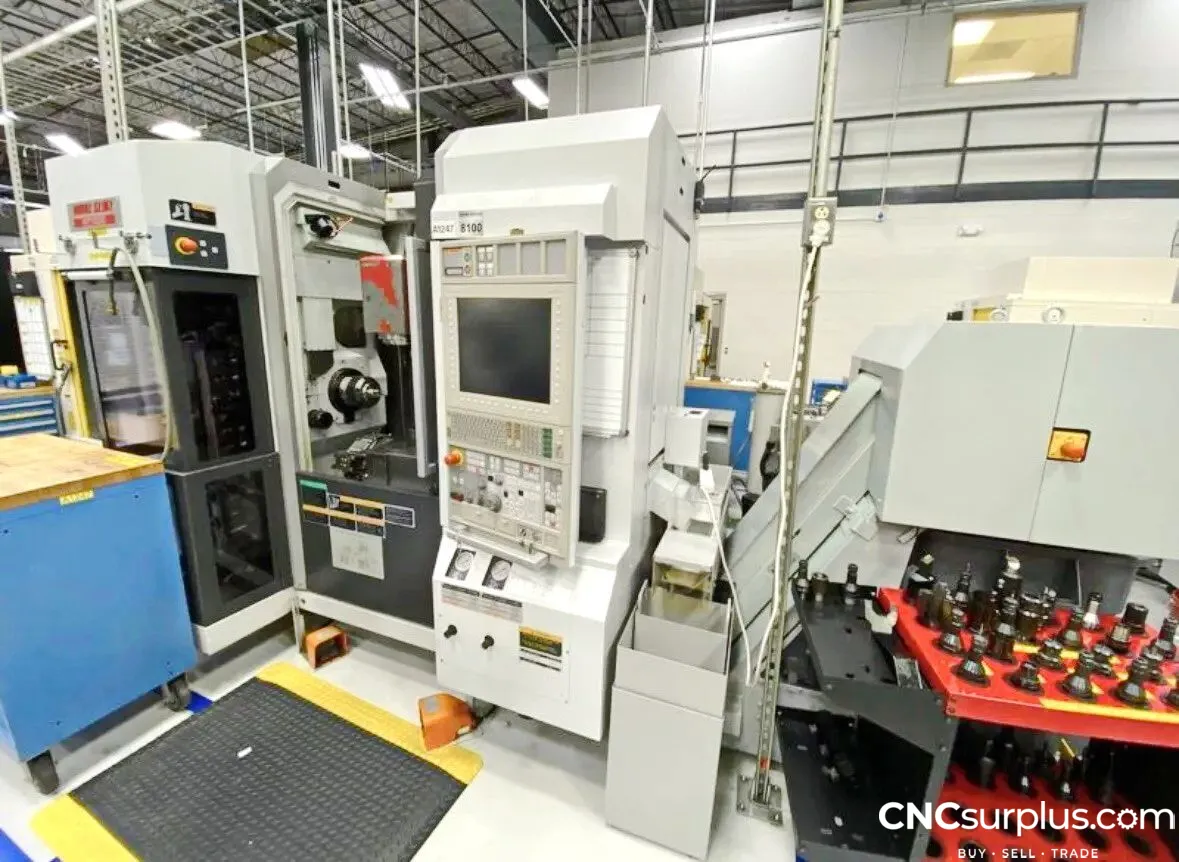

2010 MORI SEIKI NT 1000/SZ MULTI-AXIS CNC MILL TURN CENTER - 11 AXIS

2010 MORI SEIKI NT 1000/SZ MULTI-AXIS CNC MILL TURN CENTER - 11 AXIS

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
MORI SEIKI
Model:
NT 1000 SZ
Condition:
Good
Year:
2010
Stock #:
13702
Status:
For Sale

Description

2010 Mori Seiki NT 1000/SZ Multi-Axis CNC Mill Turn Center, 12000 RPM Tool Spindle, Full B-Axis, Sub-Spindle, Lower Turret, Live Tooling, ChipBLASTER High-Pressure Coolant, Renishaw OMP400 Probe, Chip Conveyor

Tool spindle Capto C5 (12,000 rpm)
Full b-axis (0.0001")
Sub-spindle
Live tooling 6,000 rpm (lower turret)
ChipBLASTER F-75MSF high-pressure coolant
Renishaw OMP400 probe system
Chip conveyor
Air blast

Max Swing14.5"368.3 mm
Swing Over Cross Slide (Turret 2)11.8"299.72 mm
Max Dia (Upper turret)14.5"368.3 mm
Max Dia (Lower turret)10.6"269.24 mm
Max Swing Over Cross Slide14.5"368.3 mm
Machining Length16.6"421.64 mm
# Axis1111
Bar Capacity (Main)2"50.8 mm
Bar Capacity (Sub)1.5"38.1 mm
Power (Main)15 hp11.2 kW
Power (Sub)10 hp7.5 kW
Power (Tool spindle)12 hp8.9 kW
Max RPM (Main)6,000 RPM6,000 RPM
Max RPM (Sub)6,000 RPM6,000 RPM
Max RPM (Live Tooling)6,000 RPM6,000 RPM
Max RPM (Tool Spindle)12,000 RPM12,000 RPM
X-Axis Travel15" (Tool Spindle)15" (Tool Spindle)
Y-Axis Travel±4.1" (Tool Spindle)±4.1" (Tool Spindle)
B-Axis Rotation-120° ~ +120° (Tool Spindle)-120° ~ +120° (Tool Spindle)
C-Axis Rotation0.0001°0.0001°
Z-Axis Travel18.1″ + 6.1″ (Tool Spindle)18.1″ + 6.1″ (Tool Spindle)
X2-Axis Travel (Lower)6.1"6.1"
Z2-Axis Travel (Lower)24"24"
Spindle Nose (Main)A2-5A2-5
Spindle Nose (Sub)A2-5A2-5
TailstockNoNo
Live ToolingYesYes
Sub SpindleYesYes
Rapid Traverse (X/Z)1,574.8 / 1,968.5 in/min.1,574.8 / 1,968.5 in/min.
Rapid Traverse (Y)1,574.8 in/min.40 m/min.
Turret Capacity (Lower)1010
ATC Positions3838
Made InJapanJapan
ControlCNC (MSX-711 IV)CNC (MSX-711 IV)
Dimensions106.5" X 95.5" X 94.5"106.5" X 95.5" X 94.5"
Weight19,690 lb19,690 lb
