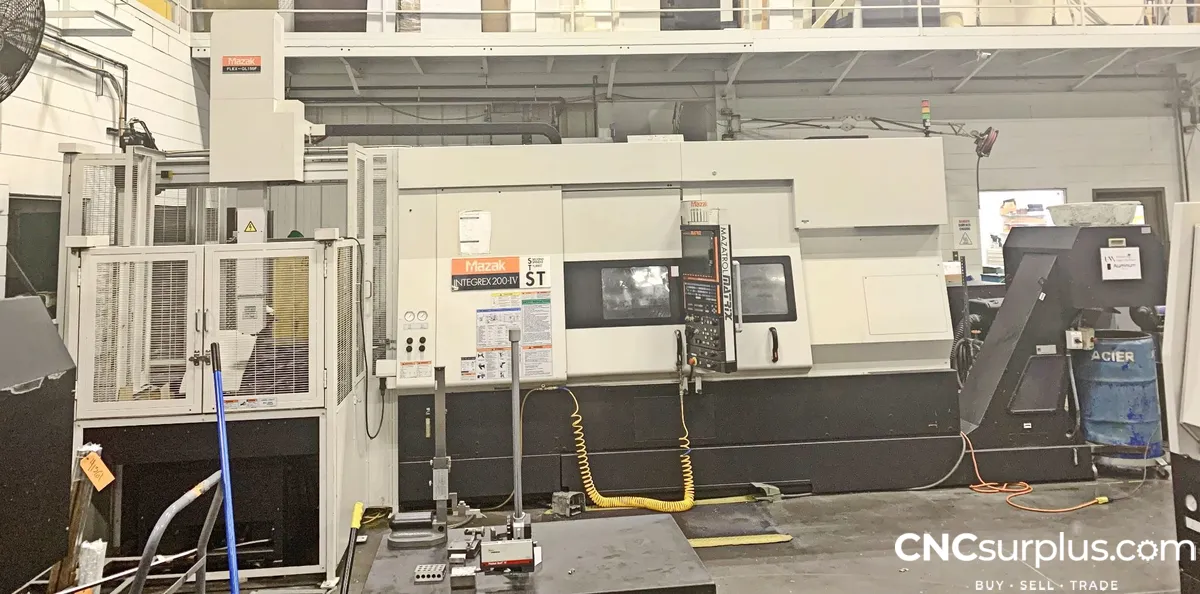

2006 MAZAK INTEGREX 200-IV ST MULTI-AXIS CNC LATHE W/GANTRY

2006 MAZAK INTEGREX 200-IV ST MULTI-AXIS CNC LATHE W/GANTRY

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
MAZAK
Model:
INTEGREX 200-IV ST
Condition:
Excellent
Year:
2006
Stock #:
13700
Status:
For Sale

Description

2006 Mazak Integrex 200-IV ST Multi-Axis CNC Lathe, Y-Axis, B-Axis, C-Axis, Milling Spindle, Lower Turret, Sub-Spindle, TSC, Gantry Robot, Automatic Tool Eye, Chip Conveyor

GL-150F gantry load/unload
Milling spindle Capto C6 (12,000 rpm)
Through milling spindle coolant (1000 psi)
Sub-spindle
Lower turret (9-position)
Y-axis
B-axis
C-axis
Spindle synchronization (main/sub)
Automatic tool eye
Chuck air blast (sub)
Chip conveyor

Max Swing26"660.4 mm
Max Dia (Upper turret)26"660.4 mm
Max Dia (Lower turret)10.24"260.1 mm
Machining Length40"1,016 mm
Chuck Size (Main)8"203.2 mm
Chuck Size (Sub)8"203.2 mm
Bar Capacity (Main)2"50.8 mm
Bar Capacity (Sub)2"50.8 mm
Spindle Bore (Main)2.99"75.946 mm
Spindle Bore (Sub)2.99"75.946 mm
Power (Main)30 hp22.4 kW
Power (Sub)25 hp18.6 kW
Power (Milling Tool)25 hp18.6 kW
Max RPM (Main)5,000 RPM5,000 RPM
Max RPM (Sub)5,000 RPM5,000 RPM
RPM (Milling Spindle)12,000 RPM12,000 RPM
X-Axis Travel22.83"579.88 mm
Y-Axis Travel±3.15"±3.15"
B-Axis Rotation225°225°
Z-Axis Travel41.14"1,045 mm
W-Axis Travel (2nd Headstock)41.34"41.34"
X2-Axis Travel (Lower)5.91"5.91"
Z2-Axis Travel (Lower)38.98"38.98"
Spindle Nose (Main)A2-6A2-6
Spindle Nose (Sub)A2-6A2-6
TailstockNoNo
Live ToolingYesYes
Sub SpindleYesYes
Rapid Traverse (X1/X2)1,496 in/min.1,496 in/min.
Rapid Traverse (Z1/Z2)1,496 in/min.1,496 in/min.
Rapid Traverse (Y)1,024 in/min.26 m/min.
Turret Capacity (Lower)99
ATC Positions2020
Made InJapanJapan
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Dimensions150.39" X 93.03" X 102.24"150.39" X 93.03" X 102.24"
Weight20,240 lb20,240 lb

*Very low hour unit
