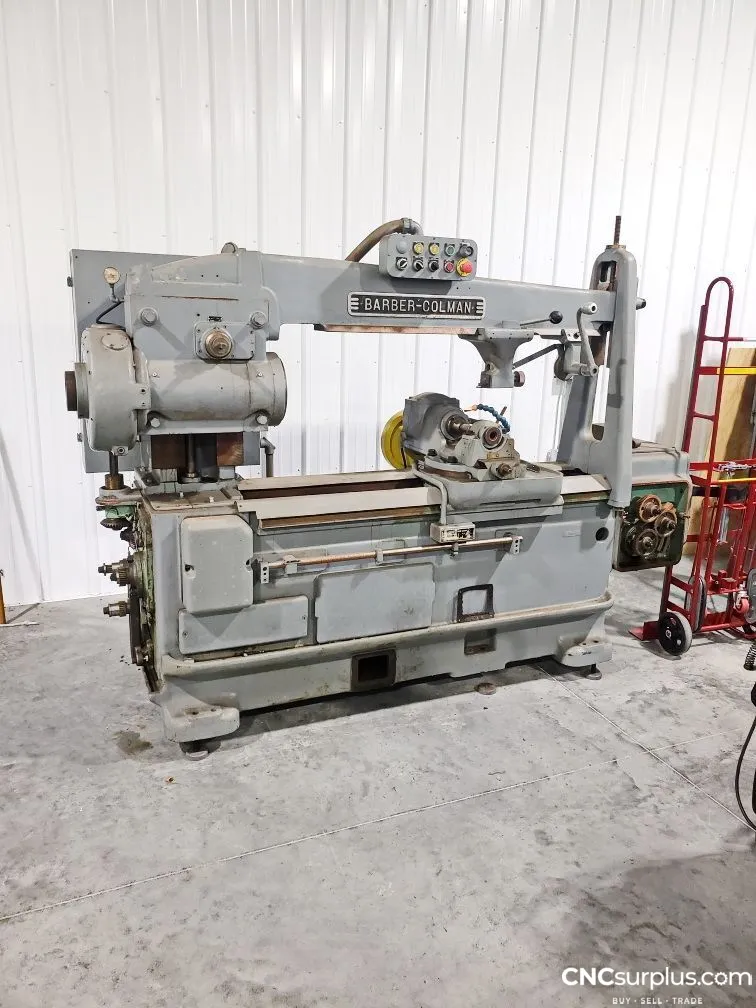

BARBER COLMAN 16-36 HORIZONTAL GEAR HOBBER

Have one to sell?

sales@cncsurplus.com

ConditionUsed

Quantity

1 available

BARBER COLMAN 16-36 Gear Hobbers | CNCsurplus (1)

BARBER COLMAN 16-36 Gear Hobbers | CNCsurplus (2)

BARBER COLMAN 16-36 Gear Hobbers | CNCsurplus

Have one to sell?

Overview

Type:

Gear Hobbers

Manufacturer:

Model:

16-36

Condition:

Good

Stock #:

13698

Status:

For Sale

Description

Barber Colman 16-36 Horizontal Gear Hobber, Double Thread Index Worm, Tailstock, 4.125" Hole In Spindle, (Refurbished)

Equipped With

Double thread index worm
Tailstock

Specifications

ImperialMetric

Max Dia. Gear	16"	406.4 mm
Max Diametral Pitch	6	6
Main Motor	5 hp	5 hp
Hob Speed	425 RPM	425 RPM
Max Travel Of Hob Head	36"	914.4 mm
Horz/Vert	Horz	Horz
Max Hob Diameter	5"	127 mm
Spindle Hole Dia	4.125"	104.77 mm
Max Hob Speed	425 RPM	425 RPM
Hob Head Swivel Angle	45°	45°
Feed Ranges	0.015 to 0.150 in/rev.	0.015 to 0.150 in/rev.
Dimensions	114″ X 81″ X 90″	114″ X 81″ X 90″
Weight	13,000 lb	13,000 lb
