2020 SMEC SLV500 RH CNC VERTICAL TURNING LATHE

Address: 3040 New Street, Suite 206, Burlington, ON, L7N 1M5, CA
Telephone: 905-635-7530

Have one to sell?

905-635-7530

sales@cncsurplus.com

ConditionUsed

Quantity

1 available

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (1)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (2)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (3)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (4)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (5)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (6)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (7)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (8)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp. (9)

2020 SMEC SLV500 RH Vertical Boring Mills (incld VTL) | CNCsurplus, A Div. of Comtex Leasing Corp.

Have one to sell?

Overview

Type:

Vertical Boring Mills (incld VTL)

Manufacturer:

SMEC

Model:

SLV500 RH

Condition:

Excellent

Year:

2020

Stock #:

13692

Status:

For Sale

Description

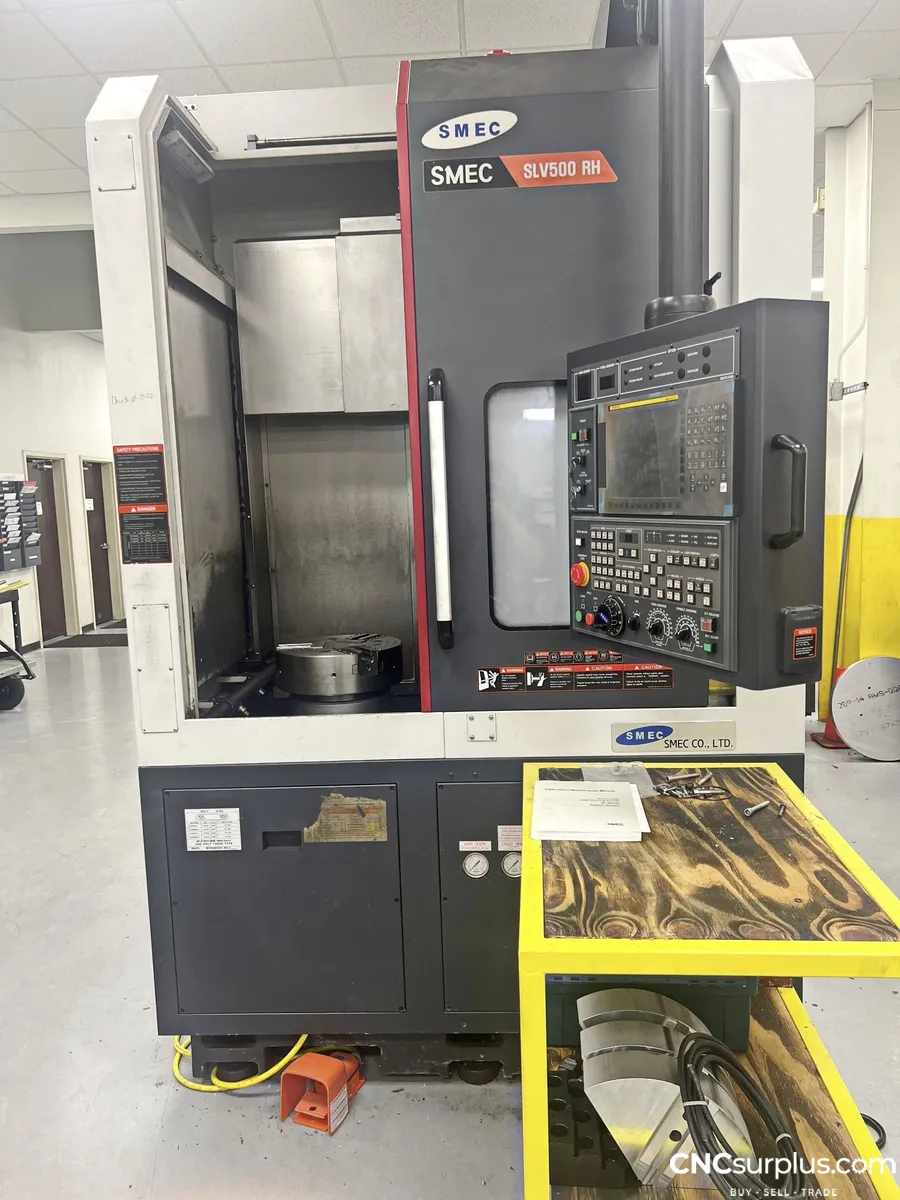

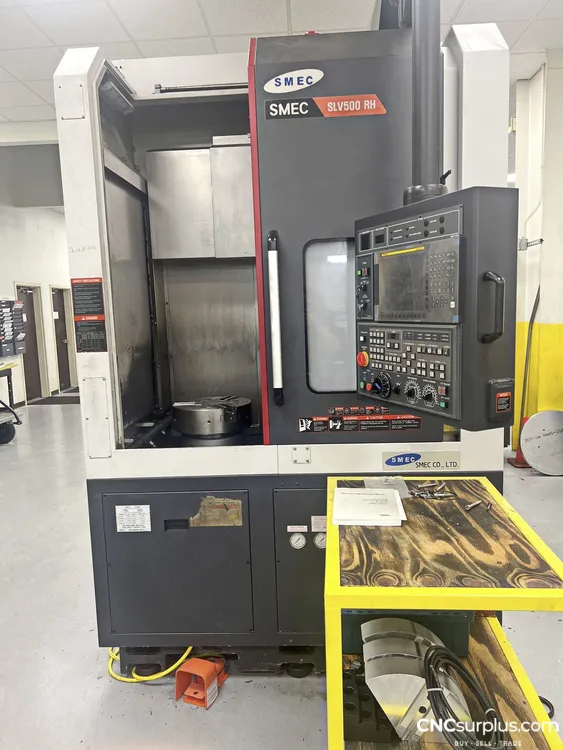

2020 SMEC SLV500 RH CNC Vertical Turning Lathe, 15" 3-Jaw Chuck, Chip Conveyor, Shower Coolant Unit, Spindle Orientation, Chuck Clamp Confirmation

Equipped With

15" 3-jaw chuck
CR Machinery chip conveyor
Shower coolant unit
Spindle orientation
Chuck clamp confirmation
Chuck clamp foot switch
Chuck pressure switch

Specifications

ImperialMetric

Chuck Size	15"	381 mm
Swing	27.56"	700.02 mm
Max Turning Diameter	19.68"	499.87 mm
Max Turning Length	19.48"	494.79 mm
X-Axis	12.48"	316.99 mm
Z-Axis	19.48"	494.79 mm
Turret Capacity	12 (BMT65)	12 (BMT65)
Power	30 hp	22.4 kW
RPM	2,900 RPM	2,900 RPM
Spindle Nose	A2-8	A2-8
Boring Bar Shank Size	2"	2"
Shank Size for Square Tool	1" X 1"	1" X 1"
Rapid Traverse (X/Z)	787 in/min.	787 in/min.
Made In	Korea	Korea
Control	CNC (Fanuc Series Oi-TF)	CNC (Fanuc Series Oi-TF)
Dimensions	65.7″ X 140″ X 117.56″	65.7″ X 140″ X 117.56″
Weight	15,873 lb	15,873 lb
