Equipment
PRESSES
Hydraulic Presses

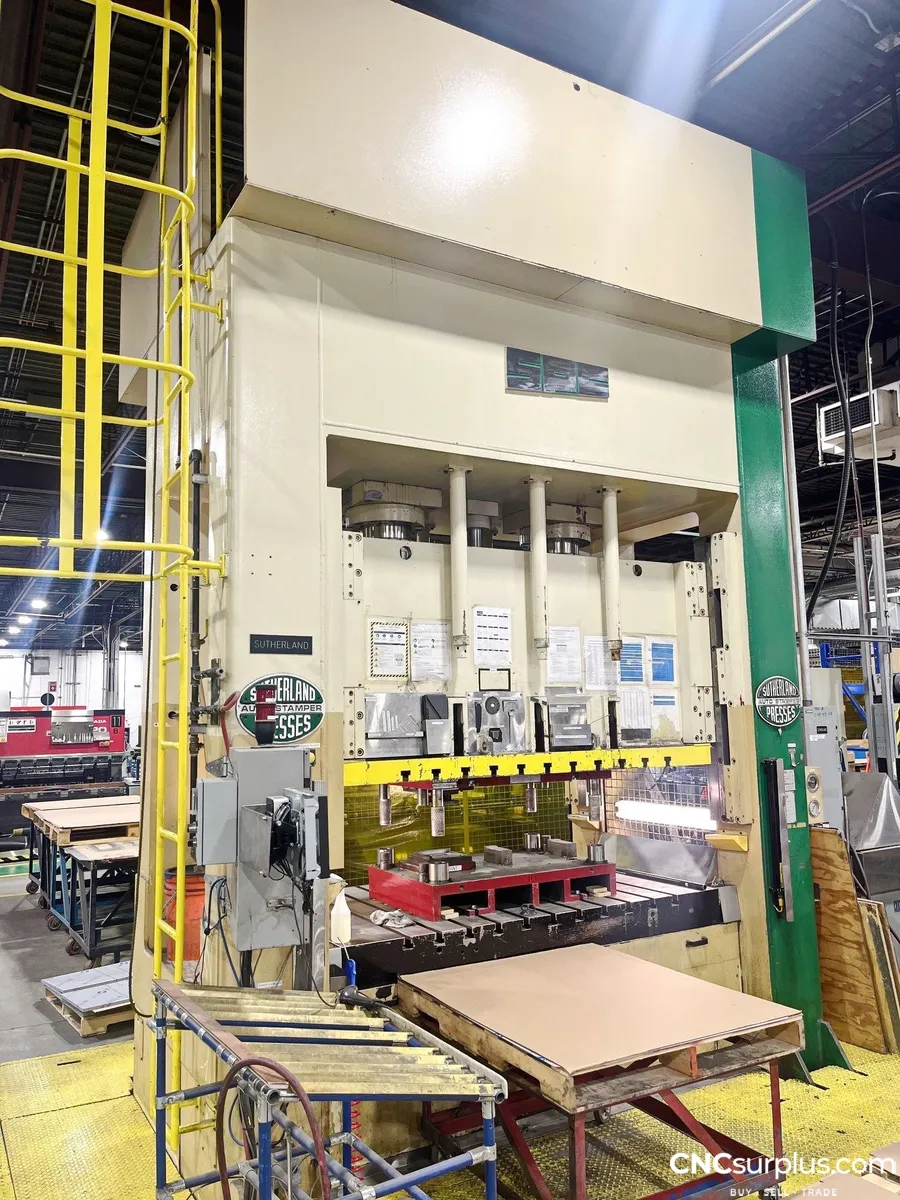

2001 SUTHERLAND SD3-300-84-48-C HYDRAULIC PRESS, 300 TON

2001 SUTHERLAND SD3-300-84-48-C HYDRAULIC PRESS, 300 TON

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
$150,000.00 USD
Have one to sell?

Overview

Type:
Hydraulic Presses
Manufacturer:
SUTHERLAND
Model:
SD3-300-84-48-C
Year:
2001
Stock #:
13678
Status:
For Sale
Country:
Canada

Description

2001 Sutherland SD3-300-84-48-C Hydraulic Press, 300 Ton, Allen Bradley Control, Linear Scale Position Control, Denison Vane Pump, Light Curtains

Allen Bradley control
Linear scale position control
1000 colour touchscreen
A-B touchscreen pressure control
Denison vane pump
Light curtains

Tonnage300 T272.156 t
Slide Lifting Cap15.5 T14,061.4 kg
Stroke2" - 18" (Adjustable)2" - 18" (Adjustable)
High-Speed Cylinder⌀3.7"⌀3.7"
Full Tonnage Cylinders⌀11.2"⌀11.2"
Daylight30"762 mm
Slide Knockouts3 Units3 Units
Closed Height12"304.8 mm
Slide Area84" X 48"84" X 48"
Bolster Area84" X 48"84" X 48"
Bolster Thickness7"177.8 mm
Side Window38" X 30"38" X 30"
Rapid Approach900 in/min.22.9 m/min.
Normal Pressing35 in/min. (10-50% of Full Tonnage)35 in/min. (10-50% of Full Tonnage)
Fast Press70 in/min. (55%-100% of Full Tonnage)70 in/min. (55%-100% of Full Tonnage)
Rapid Return900 in/min.22.9 m/min.
Power100 hp74.6 kW
Pin Pad Area48" X 24"48" X 24"
Down Speed350 in/min.8.9 m/min.
Up Speed350 in/min.8.9 m/min.
Ejector Capacity5 T4,535.9 kg
Ejector Cylinder⌀3.7"⌀3.7"
Bed Width122"3,098.8 mm
Bed Length59"1,498.6 mm
IPM15 ipm
Made InTaiwanTaiwan
Dimensions180" X 80" X 205"180" X 80" X 205"
Weight78,300 lb78,300 lb
