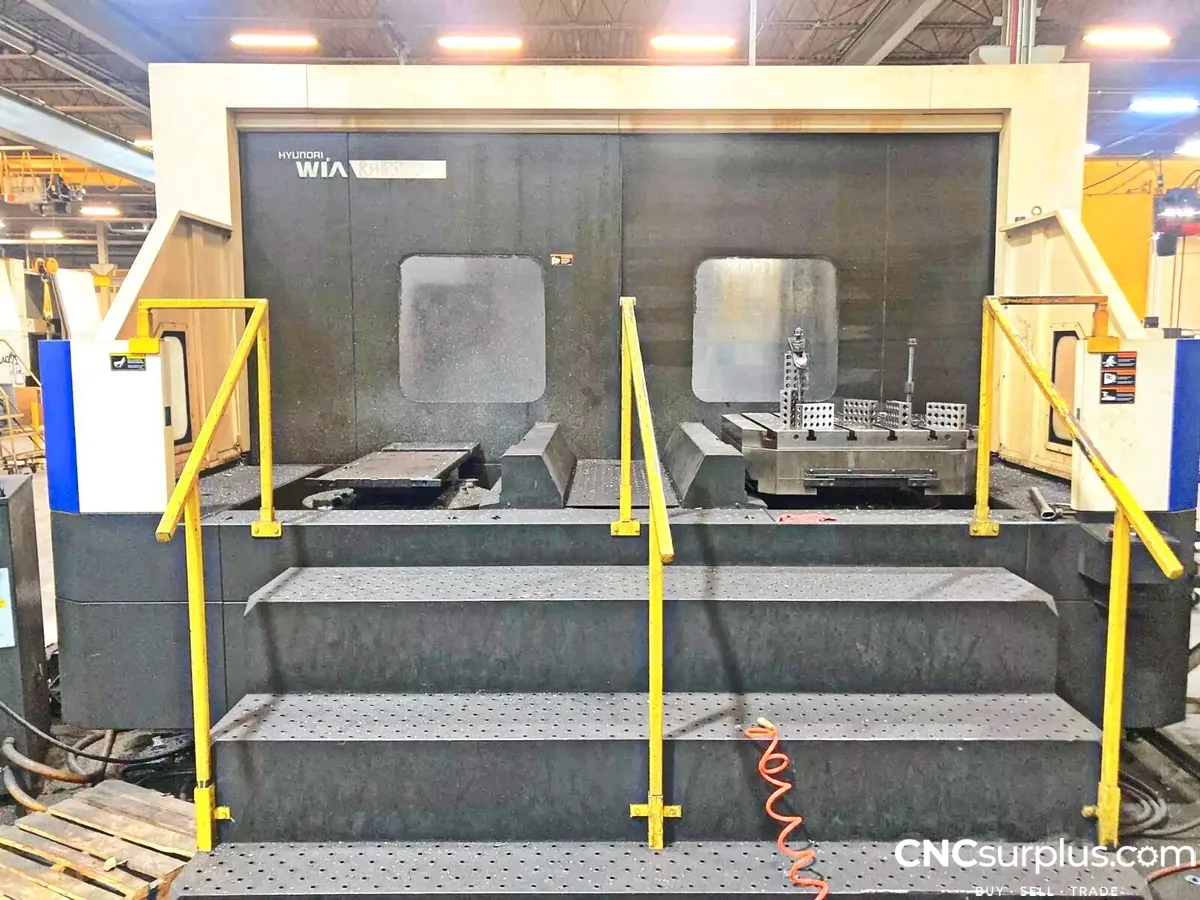

2011 HYUNDAI WIA KH1000 HORIZONTAL CNC MACHINING CENTER

2011 HYUNDAI WIA KH1000 HORIZONTAL CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
HYUNDAI WIA
Model:
KH1000
Year:
2011
Stock #:
13670
Status:
For Sale

Description

2011 Hyundai Wia KH1000 Horizontal CNC Machining Center, TSC, Big Plus CAT-50, Geared Spindle, Shuttle-Type Automatic Pallet Changer, 90 Pocket ATC, Chip Conveyor

Through spindle coolant (1000 psi)
Big plus 2-step geared spindle (cat-50)
1° table indexing
90-pocket atc
Chip conveyor
Spindle oil cooling system
Shuttle-type automatic pallet changer (2-pallets)

X-Axis82.67"2,099.8 mm
Y-Axis53.14"1,349.8 mm
Z-Axis55.11"1,399.8 mm
Power34 hp25.4 kW
RPM8,000 RPM8,000 RPM
# ATC9090
TaperBig Plus #50Big Plus #50
Pallet-W39.4"1,000.8 mm
Pallet-L39.4"1,000.8 mm
Max Workpiece Diameter74.8"1,899.9 mm
Max Workpiece Height59"1,498.6 mm
Max Table Load6,613 lb6,613 lb
Spindle To Pallet Center66.9"1,699.3 mm
# Axis33
Rapid Traverse (X/Y/Z)787 in/min.787 in/min.
Made InKoreaKorea
ControlCNC (FANUC 31I - MODEL A)CNC (FANUC 31I - MODEL A)
Dimensions303.3" X 188.9" X 157"303.3" X 188.9" X 157"
Weight66,139 lb66,139 lb
